- Logic family of four sizes and lumen packages (S, M, L, XL)
- Compact and slim design
- Superior color consistency based on factory calibration
- Color boost for bright saturated and mixed colors
- Dedicated color temperature control channel
- Narrow beam-angle using high-power RGBW LEDs
- Optional baffle snoot
- Externally mounted micro lens diffusers
- RDM and DMX control
- Local diagnostics and focusing via magnetic sensor
- Power and DMX IN/OUT pre-mounted cables
- Optional Hybrid IN/Out cable solution
- Fully weatherized housing (IP66, IK08 and C-5 High corrosion rating)
- Shipped in FSC certified carboard packaging
- 5-year warranty
Overview

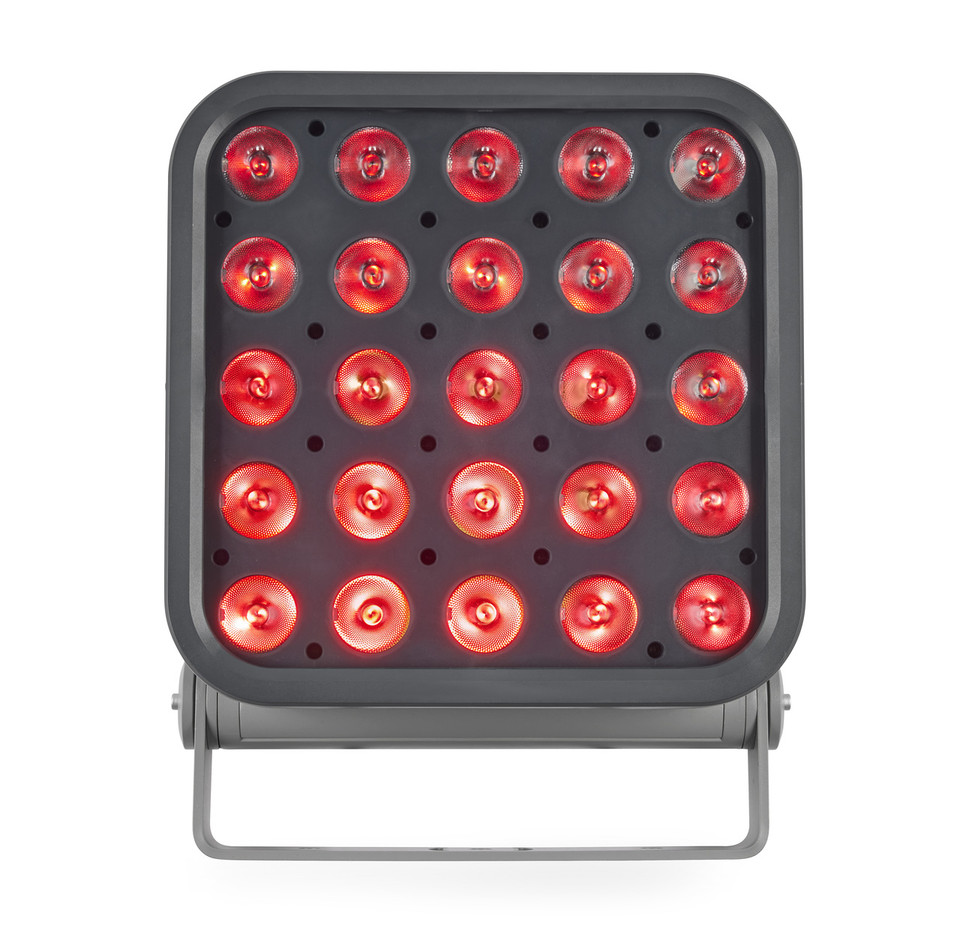

Engineered for harsh conditions and creativity, Exterior Wash Pro XL QUAD provides a logical, user-friendly and versatile lighting solution designed to illuminate large-scale structures and building facades. Featuring external micro lenses and an optional baffle snoot, this fixture provides configurable beam control. The Exterior Wash Pro XL QUAD features unparalleled color performance. The factory color calibration ensures superior color consistency and provides a dedicated color tempera¬ture control channel spanning from 1000K to 12,500K precisely following the black-body curve. The integrated color boost technology encompassing smart ratio between LED capacity and PSU capacity results in saturated and mixed colors up to three times brighter than previous models. Designed for permanent outdoor installations and backed by a 5-year warranty, this fixture meets rigorous environmental standards.
Features
Specifications
Physical
- Length: 175 mm (6.89 inch.)
- Width: 351 mm (13.82 in.)
- Height: 438 mm (11.93 in.)
- Weight: 17.7 kg (39.0 lbs)
Dynamic Effects
- Intensity: 0 - 100 %
- Color mixing: RGB + CTC (Color Temperature Control)
- Color temperature control: 1000 K - 12500K in 50K steps
