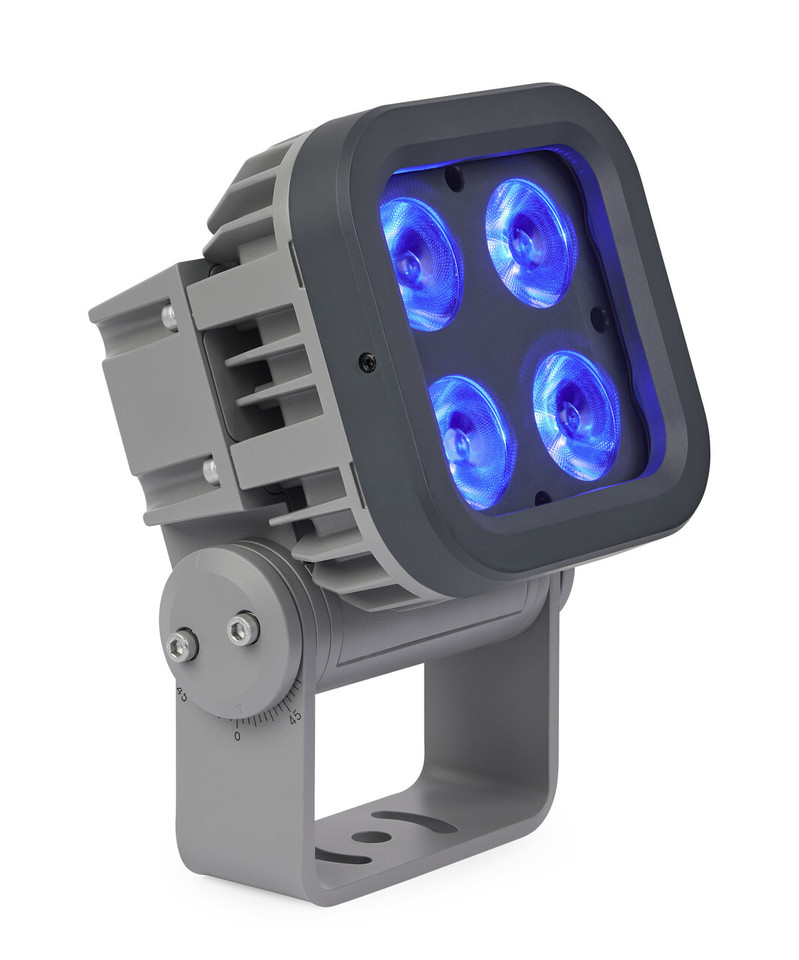

Martin Pro Exterior Wash Pro S QUAD, US, Grey

SKU: MAR-90590005

MSRP: $1,280.00

MAP: $1,280.00

Description

Overview

Engineered for harsh conditions and creativity, Exterior Wash Pro S QUAD provides a logical, user-friendly and versatile lighting solution designed to illuminate smaller structures, features of a building and landscaping. Featuring external micro lenses and an optional baffle snoot, this fixture provides configurable beam control. The Exterior Wash Pro S QUAD features unparalleled color performance. The factory color calibration ensures superior color consistency and provides a dedicated color temperature control channel spanning from 1000K to 12,500K, precisely following the black-body curve. The integrated color boost technology encompassing smart ratio between LED capacity and PSU capacity results in saturated and mixed colors up to three times brighter than previous models. Designed for permanent outdoor installations and backed by a 5-year warranty, this fixture meets rigorous environmental standards.

Features

Logic family of four sizes and lumen packages (S, M, L, XL)
Compact and slim design
Superior color consistency based on factory calibration
Color boost for bright saturated and mixed colors
Dedicated color temperature control channel
Narrow beam-angle using high-power RGBW LEDs
Optional baffle snoot
Externally mounted micro lens diffusers
RDM and DMX control
Local diagnostics and focusing via magnetic sensor
Power and DMX IN/OUT pre-mounted cables
Optional Hybrid IN/Out cable solution
Fully weatherized housing (IP66, IK08 and C-5 High corrosion rating)
Shipped in FSC certified carboard packaging
5-year warranty

Specifications

Physical

Length: 141 mm (5.55 inch.)
Width: 155 mm (6.10 inch.)
Height: 236 mm (9.29 inch.)
Weight: 4.4 kg (9.7 lbs)

Dynamic Effects

Intensity: 0 - 100 %
Color mixing: RGB + CTC (Color Temperature Control)
Color temperature control: 1000 K - 12500K in 50K steps

Control and Programming

Control systems: DMX, RDM
User interface: Magnetic sensor for local diagnostics and focusing
Stand-alone control: Up to 20 scenes with individual fade/hold times
Control resolution: 8-bit DMX control of each color
Dimmer resolution: 16-bit DMX control of intensity
DMX channels: 6/3/7/4 (Standard/Basic/Extended/Raw)
DMX compliance: USITT DMX512/1990
RDM compliance: ANSI/ESTA E1.20
DMX/RDM Transceiver: Galvanic-isolated RS-485
Firmware update: Serial upload via DMX link

Optics

Light source: 4 x high-power RGBW LEDs
LED Manufacturer: Osram
Minimum LED lifetime: 100 000 hours (to >70% luminous output)*
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration (1 step MacAdam ellipse)

Beam Angle Options

Native beam angle: 8°
Narrow micro lens: 11°
Medium micro lens: 15°
Wide micro lens: 30°
Very Wide micro lens: 50°
Asymmetric micro lens: 8°x 50°

Photometric Data

CRI: 70
CCT: 1000K - 12500K (default 4000K)

Luminous Output

Full: 1800 lm
Red: 620 lm
Green: 1320 lm
Blue: 470 lm

Construction

Housing: Cast Aluminum
Surface treatment: Anodized and electrostatic powder-coated
Color: Traffic grey RAL 7042 - other colors available on request
Effective Projected Area (EPA): 0.026 m² / 0.038 m²
Protection rating: IP66
Impact resistance: IK08
Corrosion resistance: C5 High (ISO 12944-6)
Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g ANSI C136-31)

Installation

Orientation: Any
Mounting: Adjustable bracket
Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)

Electrical

AC power: 100 -240 / 277 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Typical half-cycle RMS inrush current: 12A
Max earth leakage: 0.5 mA
Power factor: 0.99 @ 110 V / 120 V, 0.94 @ 208 V / 230V, 0.90 @ 277 V
Surge protection: 4KV
