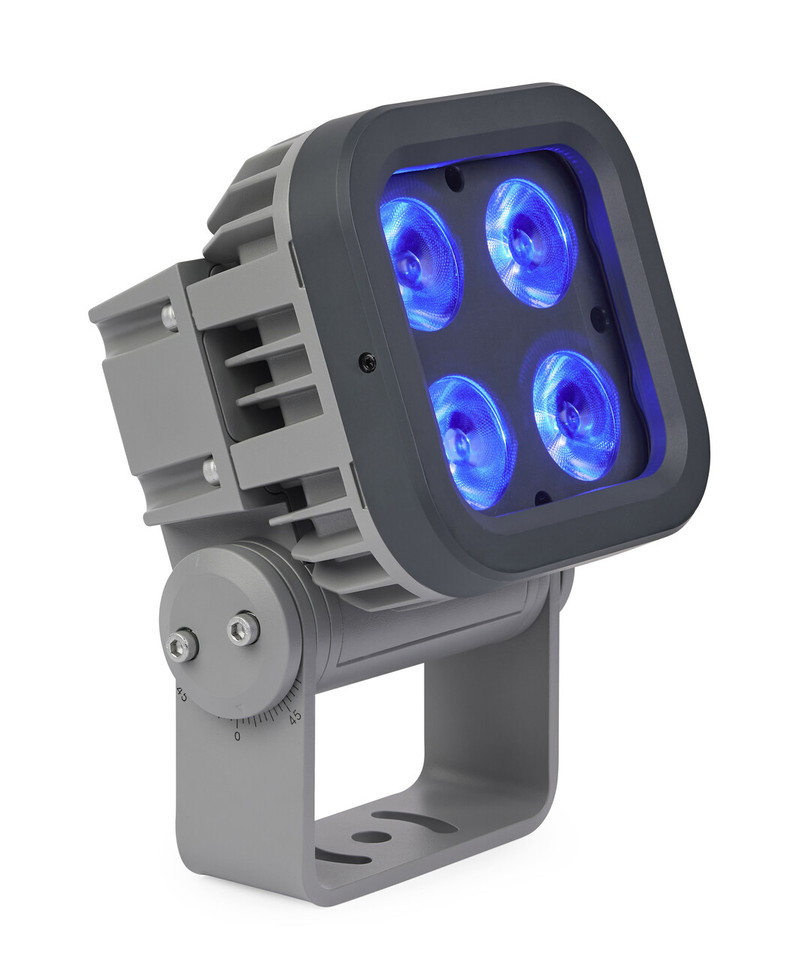

Martin Pro Exterior Wash Pro S QUAD, EU, Grey

Martin Pro Exterior Wash Pro S QUAD, EU, Grey

Martin Pro Exterior Wash Pro S QUAD, EU, Grey

Martin Pro Exterior Wash Pro S QUAD, EU, Grey

SKU: MAR-90590001
MSRP: $1,280.00
MAP: $1,280.00

Overview


Engineered for harsh conditions and creativity, Exterior Wash Pro S QUAD provides a logical, user-friendly and versatile lighting solution designed to illuminate smaller structures, features of a building and landscaping. Featuring external micro lenses and an optional baffle snoot, this fixture provides configurable beam control. The Exterior Wash Pro S QUAD features unparalleled color performance. The factory color calibration ensures superior color consistency and provides a dedicated color temperature control channel spanning from 1000K to 12,500K, precisely following the black-body curve. The integrated color boost technology encompassing smart ratio between LED capacity and PSU capacity results in saturated and mixed colors up to three times brighter than previous models. Designed for permanent outdoor installations and backed by a 5-year warranty, this fixture meets rigorous environmental standards.


Features


  • Logic family of four sizes and lumen packages (S, M, L, XL)
  • Compact and slim design
  • Superior color consistency based on factory calibration
  • Color boost for bright saturated and mixed colors
  • Dedicated color temperature control channel
  • Narrow beam-angle using high-power RGBW LEDs
  • Optional baffle snoot
  • Externally mounted micro lens diffusers
  • RDM and DMX control
  • Local diagnostics and focusing via magnetic sensor
  • Power and DMX IN/OUT pre-mounted cables
  • Optional Hybrid IN/Out cable solution
  • Fully weatherized housing (IP66, IK08 and C-5 High corrosion rating)
  • Shipped in FSC certified carboard packaging
  • 5-year warranty


Specifications


Physical


  • Length: 141 mm (5.55 inch.)
  • Width: 155 mm (6.10 inch.)
  • Height: 236 mm (9.29 inch.)
  • Weight: 4.4 kg (9.7 lbs)


Dynamic Effects


  • Intensity: 0 - 100 %
  • Color mixing: RGB + CTC (Color Temperature Control)
  • Color temperature control: 1000 K - 12500K in 50K steps


Control and Programming


  • Control systems: DMX, RDM
  • User interface: Magnetic sensor for local diagnostics and focusing
  • Stand-alone control: Up to 20 scenes with individual fade/hold times
  • Control resolution: 8-bit DMX control of each color
  • Dimmer resolution: 16-bit DMX control of intensity
  • DMX channels: 6/3/7/4 (Standard/Basic/Extended/Raw)
  • DMX compliance: USITT DMX512/1990
  • RDM compliance: ANSI/ESTA E1.20
  • DMX/RDM Transceiver: Galvanic-isolated RS-485
  • Firmware update: Serial upload via DMX link


Optics


  • Light source: 4 x high-power RGBW LEDs
  • LED Manufacturer: Osram
  • Minimum LED lifetime: 100 000 hours (to >70% luminous output)*
  • Binning: Tight color and flux binning
  • Calibration: Full Gamut Color Calibration (1 step MacAdam ellipse)


Beam Angle Options


  • Native beam angle: 8°
  • Narrow micro lens: 11°
  • Medium micro lens: 15°
  • Wide micro lens: 30°
  • Very Wide micro lens: 50°
  • Asymmetric micro lens: 8°x 50°


Photometric Data


  • CRI: 70
  • CCT: 1000K - 12500K (default 4000K)


Luminous Output


  • Full: 1800 lm
  • Red: 620 lm
  • Green: 1320 lm
  • Blue: 470 lm


Construction


  • Housing: Cast Aluminum
  • Surface treatment: Anodized and electrostatic powder-coated
  • Color: Traffic grey RAL 7042 - other colors available on request
  • Effective Projected Area (EPA): 0.026 m² / 0.038 m²
  • Protection rating: IP66
  • Impact resistance: IK08
  • Corrosion resistance: C5 High (ISO 12944-6)
  • Vibration resistance: 1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g ANSI C136-31)


Installation


  • Orientation: Any
  • Mounting: Adjustable bracket
  • Minimum distance to illuminated surfaces: 0.1 m (0.3 ft.)


Electrical


  • AC power: 100 -240 / 277 V nominal, 50/60 Hz
  • Power supply unit: Auto-ranging electronic switch-mode
  • Typical half-cycle RMS inrush current: 12A
  • Max earth leakage: 0.5 mA
  • Power factor: 0.99 @ 110 V / 120 V, 0.94 @ 208 V / 230V, 0.90 @ 277 V
  • Surge protection: 4KV
