- Logic family of four sizes and lumen packages (S, M, L, XL)
- Compact and slim design
- Extended color temperature control from 2400K - 6500K
- More than 60 lm/W efficacy
- Narrow beam-angle using high-power LEDs
- Optional baffle snoot
- Externally mounted micro lens diffusers
- RDM and DMX control
- Local diagnostics and focusing via magnetic sensor
- Power and DMX In/Out pre-mounted cables
- Optional Hybrid In/Out cable solution
- Fully weatherized housing (IP66, IK08 and C-5 High corrosion rating)
- Shipped in FSC certified carboard packaging
- 5-year warranty
Overview

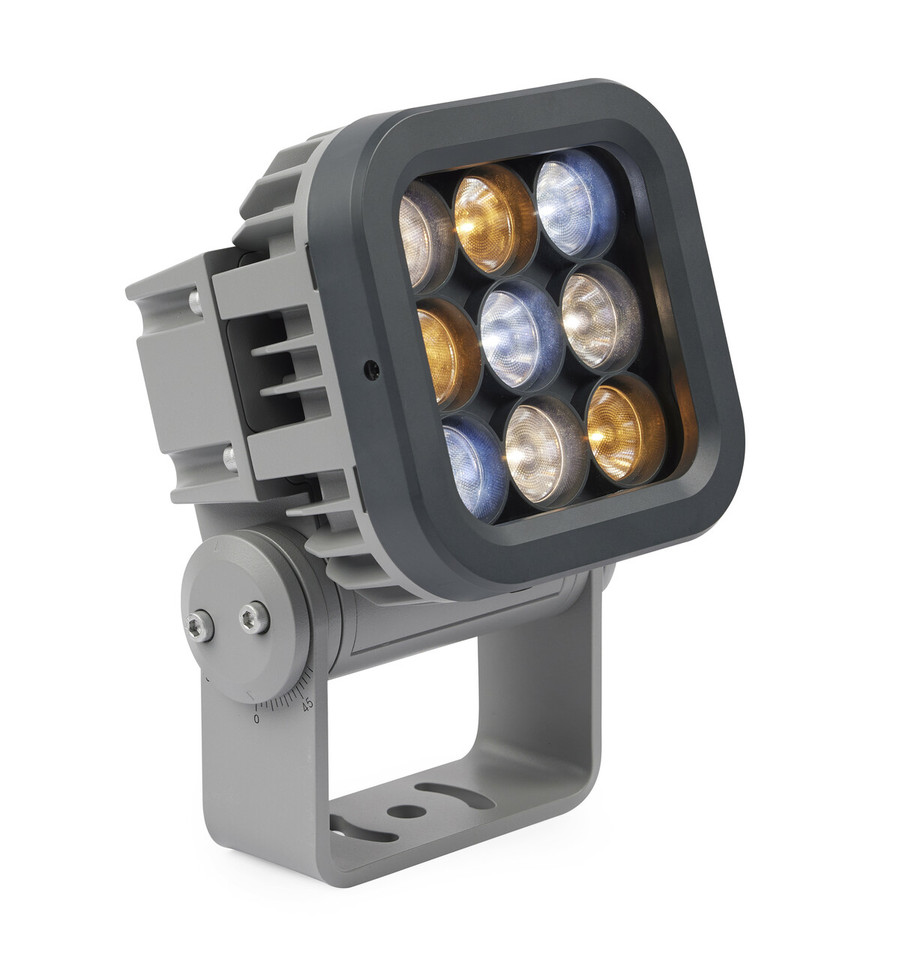

Engineered for harsh conditions and creativity, Exterior Wash Pro S CTC provides a logical, user-friendly and ver-satile lighting solution designed to illuminate smaller structures, features of a building and landscaping. Featuring external lenses and an optional baffle snoot, this fixture provides configurable beam control. Exterior Wash Pro S CTC offers dedicated color temperature control from 2400K - 6500K. Designed for permanent outdoor installations and backed by a 5-year warranty, this fixture meets rigorous environmental standards.
Features
Specifications
Physical
- Length: 5.31 in
- Width: 6.10 in
- Height: 9.65 in
- Weight: 9.7 lbs
Dynamic Effects
- Intensity: 0 - 100 %
- Color temperature control: 2400K - 6500K
Optics
- Light source: 3 x 2400K, 3 x 4000K, 3 x 6500 K white color LEDs
- Minimum LED lifetime: p>100 000 hours (to > 70% luminous output)*
- LED manufacturer: Cree
- Binning: Tight color and flux binning
Beam Angle Options
- Native beam angle: 7°
- Narrow micro lens: 9°
- Medium micro lens: 15°
- Wide micro lens: 30°
- Very Wide micro lens: 50°
- Asymmetric micro lens: 8° x 60°
