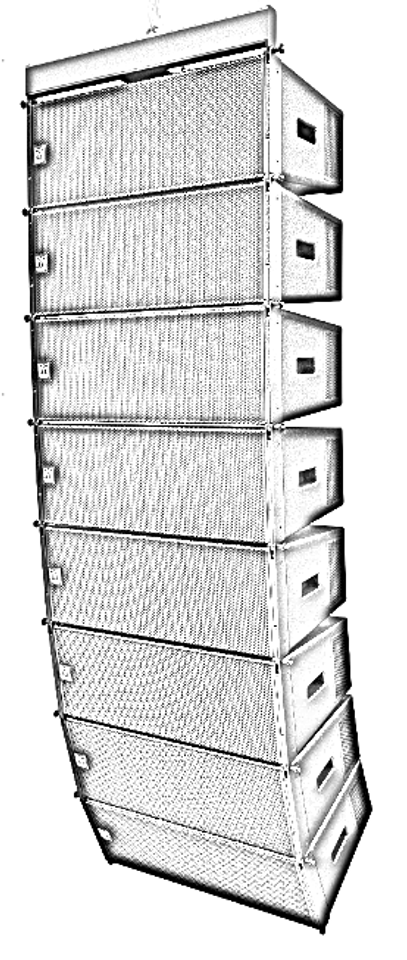

Martin Audio WPC Line Array Enclosure, WHITE (Special Order)

WPC is a 3-way bi-amp, 2 x 10” compact line array featuring scalable resolution optimisation. This flexible approach to array optimisation provides greatly improved coverage, consistency and control compared to a standard line array.

Features

• 3-way bi-amp, 2 x 10” compact line array
• Scalable resolution for advanced array control
• External, dedicated, multi-channel Class D amplification
• Industry-leading DISPLAY software interacts with DSP for highly-accurate results
• Fast, integral 3-point flying systems for up to 16 enclosures
• Side and rear handles for ease of handling and setting splay angles
• 100° horizontal constant directivity pattern control

Benefits

• Consistent coverage achieved ‘straight-out-of-the-box’
• DISPLAY intelligent software reduces set-up time and eliminates trial-and-error
• Improved audience coverage with reduced sound-spill

Applications

• Touring sound reinforcement for small and medium-size venues
• Fixed installations in concert halls, theatres, ballrooms and HoW
• Sports stadium, arena installations & corporate AV events

Specifications

• TYPE: Three-way, bi-amp line array element
• FREQUENCY RESPONSE: 65Hz-18kHz ± 3dB
• DRIVERS:
  • LF: 2 x10” (250mm)/2.5” (63mm) voice coil, long excursion, vented pole, neodymium magnet drivers, Hybrid® slot-horn loaded
  • MF: 2 x 5” (125mm)/1.5” (38mm) coil, neodymium magnet drivers, horn loaded
  • HF: 4 x 0.7” (19mm) exit neodymium magnet compression drivers, horn loaded
• SYSTEM RESOLUTION: 1 to 3 enclosures per pair of amplifier channels (Bi-amp)
• MAXIMUM SPL: 135dB peak
• NOMINAL IMPEDANCE:
  • LF: 8Ω
  • MF + HF: 8Ω
• DISPERSION (-6dB):
  • 100º horizontal (-6dB), 130º horizontal (-10dB)
  • 10° vertical
• CROSSOVER: 440Hz active, 4.4kHz internal passive
• ENCLOSURE: Vertical trapezoid with 5º wall angle, multi-laminate birch and poplar-ply construction
• FINISH: Black textured paint
• PROTECTIVE GRILLE: Black HEX perforated steel
• CONNECTORS: 2 x NL4 type
• INPUT CONNECTIONS:
  • LF: 1+/1-
  • MF + HF: 2+/2-
• FITTINGS:
  • 3-point rigging system
  • 2 x side pocket handles
  • 2 x rear grip handles
• FLOWN ARRAY MAXIMUM: 16 enclosures in single array
• DIMENSIONS:
  • (W) 772mm x (H) 319mm x (D) 421mm
  • (W) 30.4in x (H) 12.6in x (D) 16.6in
• WEIGHT: 35kg (77.1lbs)
