Overview

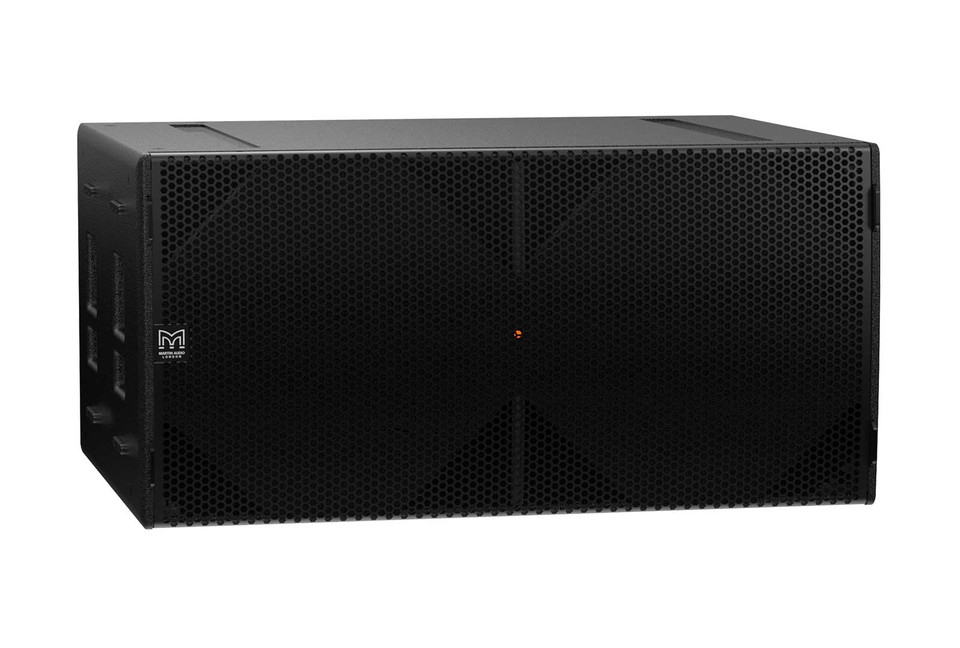

The SXP218 achieves the ultimate in subwoofer performance for the most demanding professional applications – delivering very high output levels and superb transient performance with minimal distortion. With an operating range of 35Hz-150Hz ± 3dB, it houses dual 18” long-excursion (460mm)/4” (100mm) voice coil drivers with water-resistant cones and triple roll surrounds. The design of the 18” drivers maximises output while minimising power compression and distortion, and the eight reflex ports have a large frontal area to reduce turbulent air noise at very high levels. With a prodigious maximum SPL capability of 143dB peak at 1 metre, the SXP218 is the ideal subwoofer for touring sound reinforcement, theatre and portable live sound applications — as well as premium installations — that require low frequency augmentation with low distortion at very high output levels.
Features
- Dual-driver, self-powered subwoofer
- 2 x 18” (460mm) drivers with 4” (100mm) voice coils
- Very high output capability
- Onboard Class D amplification and DSP
- Dante™ Digital Audio networking
- Global mains operation with Power Factor Correction
- Tour-grade plywood enclosure with flying inserts
- IP24 rating option with rain cowl
Applications
- Live sound reinforcement
- Theatre sound
- Corporate AV events
- Fixed installations in concert halls, ballrooms and HoW
- Bars and clubs
- Outdoor restaurant, bar and hotel entertainment areas
- Concourses and Theme Parks
Specifications
| Acoustics | |
| TYPE | Dual-driver, direct radiating powered subwoofer |
| FREQUENCY RESPONSE (3) |
35Hz – 150Hz ±3dB, -10dB @ 30Hz |
| DRIVER | 2x 18” (460mm)/4” (100mm) voice coil, long excursion, ferrite magnet, waterproof cone |
| INPUT SENSITIVITY | -30dBu for 100dB SPL |
| MAXIMUM SPL (4) | 140dB continuous / 143dB peak |
| DISPERSION | Omnidirectional / or Cardioid (paired) |
| CROSSOVER | Active Presets for CDD Live 8, 12 & 15 mono-pole or cardioid (paired) |
| Module Audio input |
|
| CONNECTORS | Female XLR input, male XLR link output, Dante Audio Neutrik® Ethercon |
| ANALOGUE INPUT IMPEDANCE | 20 kΩ balanced to ground |
| MAXIMUM ANALOGUE INPUT LEVEL | 24.6 Vpp (+21dBu), over voltage protected |
| Internal Processing | Multi-channel DSP, programmable via TCP/IP using VU-Net software PEQ/shelving filters Up to 48dB/Oct LPF Up to 200mS input delay Pre-set selection via rear panel switch |
| Network | |
| CONNECTORS | 2 x Neutrik® Ethercon RJ45 |
| PROTOCOL | TCP/IP and UDP/IP |
| Amplifier Module | |
| TYPE | Two 2 channel switch-mode, class D, Bridged Tied Load |
| PEAK OUTPUT POWER | 4000W |
| AVERAGE EFFICIENCY | 89% |
| COOLING | External fan |
| MAXIMUM AMBIENT TEMPERATURE | 40°C (104°F) for full output |
| Power Supply | |
| TYPE | Switch mode, fixed frequency with PFC |
| AC INPUT OPERATING RANGE | 85 – 265V ~ AC, 50 - 60Hz |
| POWER FACTOR | > 0.98 |
| NOMINAL POWER CONSUMPTION | 250W |
| MAINS CONNECTOR | Neutrik® Powercon True1 |
| Mechanical | |
| ENCLOSURE | Extensively braced multi-laminate birch plywood. |
| FINISH | Durable Polyurea Coating |
| PROTECTIVE GRILLE | Black perforated Zintec |
| FITTINGS |
|
| IP RATING | IP24 factory option available |
| DIMENSIONS | (W) 1085mm x (H) 537mm x (D) 792mm (920mm including castors) (W) 42.72in x (H) 21.13in x (D) 31.16in (36.20in including castors) |
| WEIGHT | 101.5kg (224lbs) w/o castors 105kg (231lbs) with castors |
