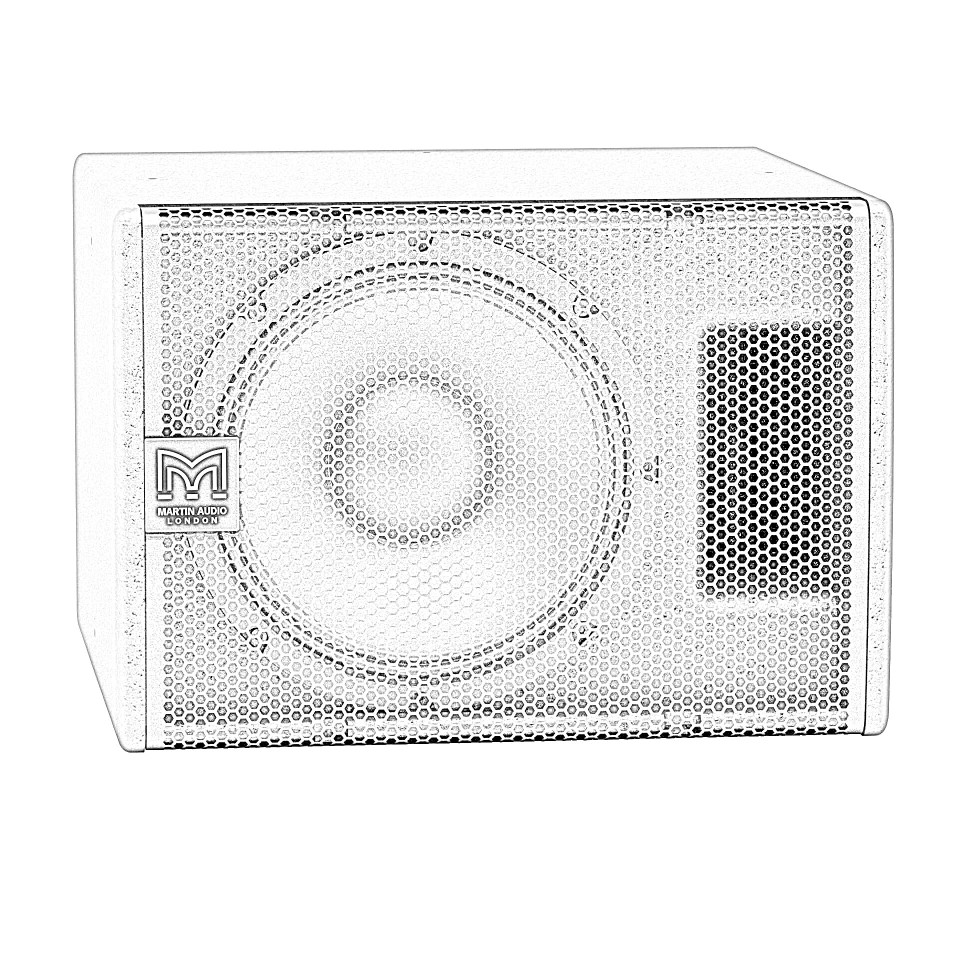

The SX110 is an slimline subwoofer designed for applications that call for increased impact and low frequency performance in a visually unobtrusive enclosure. Its very small size makes it perfectly suited to installed sound applications where space is limited such as under banquette seating.
Features
- Slimline direct-radiator subwoofer
- 1 x 10” (250mm) driver with 2” (50mm) voice coil
- Large port for reduced air noise
- Perforated steel grille
- 8Ω nominal impedance
- M8 flying inserts
Applications
- Retail outlets
- Cafes, bars and restaurants
- Museums and Houses of Worship
- Fitness clubs
- Educational facilities
- Hotels and convention centres
Specifications
| TYPE | Slimline, direct radiating subwoofer |
| FREQUENCY RESPONSE (1) | 50Hz-150Hz ± 3dB, -10dB @ 42Hz |
| DRIVER | 1 x 10” (250mm)/2” (50mm) voice coil, long excursion, ferrite magnet |
| RATED POWER (2) | 250W AES, 1000W peak |
| RECOMMENDED AMPLIFIER | VIA 2502 |
| SENSITIVITY (10) | 97dB |
| MAXIMUM SPL (9) | 121dB continuous, 127dB peak (half space) |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | Omnidirectional |
| CROSSOVER | 80-120Hz active |
| ENCLOSURE | Plywood |
| FINISH | Black or white |
| PROTECTIVE GRILLE | Perforated steel |
| CONNECTORS | 2 x NL4 type |
| PIN CONNECTIONS (INPUT) | +1, -1 Link through: +2, -2 |
| PINS CONNECTIONS (LINK) | +1, -1 Link through: +2, -2 |
| FITTINGS | 12 x M8 inserts |
| DIMENSIONS (INCL FEET) |
|
| WEIGHT | 12kg (26.5lbs) |
