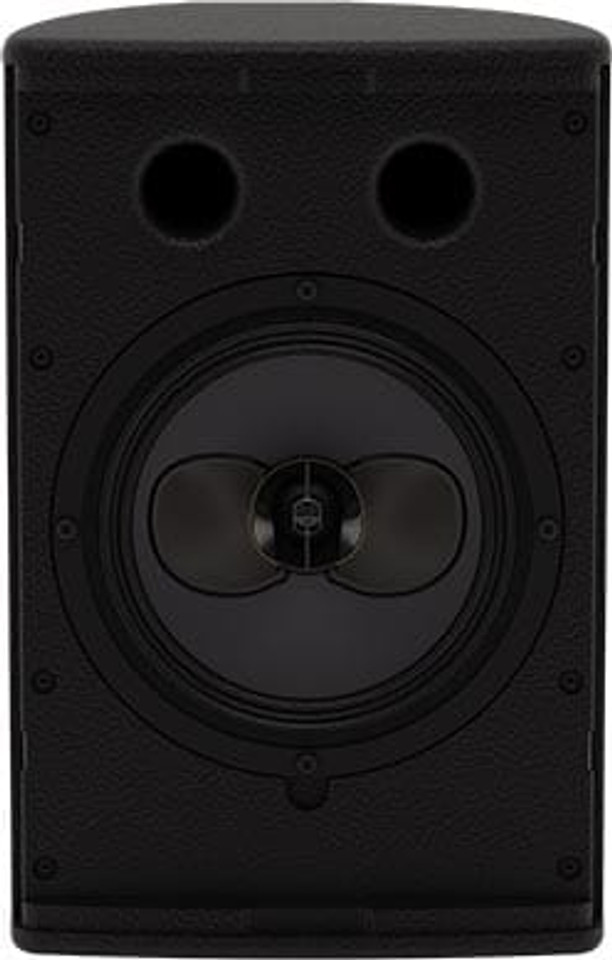

The ultra-compact CDD6 is a two-way passive loudspeaker system designed to fulfil the requirement for full-frequency dynamic performance from a very small enclosure. Featuring a 6.5” (165mm) LF/1” (25mm) HF Coaxial Differential Dispersion driver, its extremely small size and sleek lines make it ideal for visibly-unobtrusive applications. It can also be used as a fill system in conjunction with larger CDD Series models and, with the addition of an SX subwoofer, can reproduce surprisingly high levels of music program.
Features
- Ultra-Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant UPM Formi composite enclosure
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free perforated steel grille
- 8Ω nominal impedance
- Discreet mounting accessories
- Black or white standard colour options
Applications
- Bars and Restaurants
- Museums and AV Spaces
- Convention Centres
- Hotels
- Retail Outlets
- Leisure Centres
- Houses of Worship
Specifications
| TYPE | Ultra-Compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE (5) | 80Hz-20kHz ± 3dB, -10dB @ 70Hz |
| DRIVER | LF: 6.5” (165mm)/1.5” (38mm) voice coil, long excursion, ferrite motor system HF: 1” (25mm) voice coil, fabric dome with neodymium motor system |
| RATED POWER (2) | 150W AES, 600W peak |
| SENSITIVITY (8) | 91dB |
| MAXIMUM SPL (9) | 113dB continuous, 119dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | 110˚-80˚ horizontal, 80˚ vertical (user-rotatable) |
| CROSSOVER | 2.5kHz passive |
| ENCLOSURE | 9 litre, composite material |
| FINISH | Black or white textured paint |
| PROTECTIVE GRILLE | Black or white perforated steel with scrim cloth backing |
| CONNECTORS | Low profile 13A push-lock |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link + |
| FITTINGS | 4 x M6 inserts for wall/ceiling brackets |
| DIMENSIONS | (W) 210mm x (H) 325mm x (D) 210mm (W) 8.3ins x (H) 12.8ins x (D) 8.3ins |
| WEIGHT | 5.69kg (12.54lbs) |
