Overview

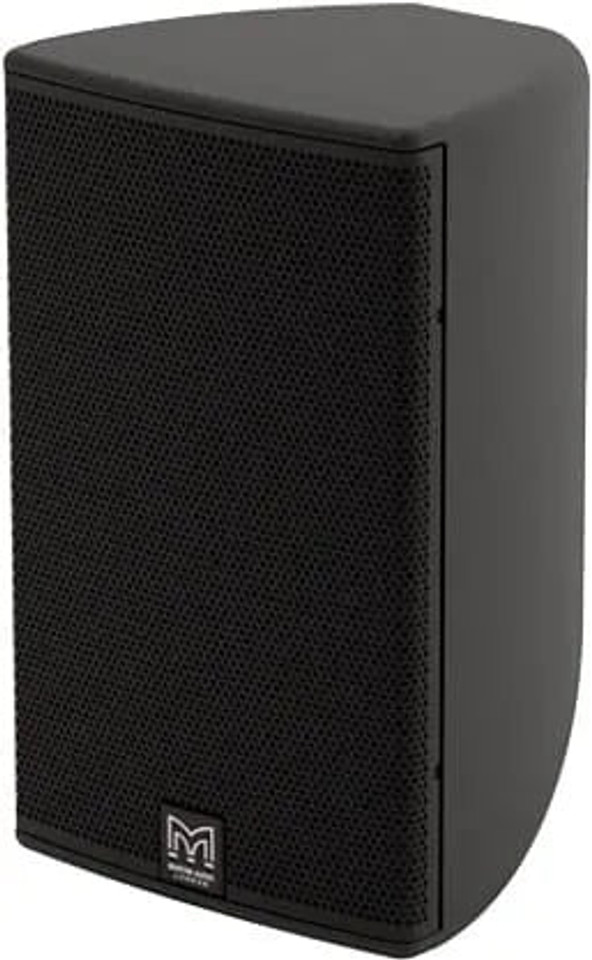

Martin Audio's CDD8 ultra-compact Coaxial Differential Dispersion System is a two-way passive loudspeaker. The CDD8 features an 8” (200mm) LF/1” (25mm) exit HF Coaxial Differential Dispersion, driver.The CCD8 has sleek lines and an extremely small size which makes it visibly unobtrusive in tight spaces.When the CDD8 is used in conjunction with larger CDD Series models, it can be used as an infill loudspeaker.
Applications:
- Live Music Clubs and Bars
- Nightclubs
- Bars and Restaurants
- Museums and AV Spaces
- Convention Centres
- Hotels
- Retail Outlets
- Leisure Centres
- Houses of Worship
Features:
- Ultra-Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant UPM Formi composite enclosure
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free perforated steel grille
- 8Ω nominal impedance
- Discreet mounting accessories
- Black or white standard color options
Specifications:
- Type: Ultra-compact, coaxial differential dispersion passive two-way system
- Frequency response: 70hz-20khz ± 3db, -10db @ 55hz
- Driver:
- Lf: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with hf
- Hf: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
- Rated power: 200w aes, 800w peak
- Sensitivity: 94db
- Maximum spl: 117db continuous, 123db peak
- Nominal impedance: 8ω
- Dispersion (-6db): 110˚-80˚ horizontal, 60˚ vertical (user-rotatable)
- Crossover: 2.3khz passive
- Enclosure: 14 litre, composite material
- Finish: Black or white textured paint
- Protective grille: Black or white perforated steel with scrim cloth backing
- Connectors: Low profile 13a push-lock
- Pin connections: Left to right: input+, input -, link -, link +
- Fittings: 6 x m6 inserts for wall/ceiling brackets
- Dimensions (WxHxD): 10.1" x 16.1" x 9.9" (256 x 410 x 252 mm)
- Weight: 21 lbs (9.5 kg)
