Overview

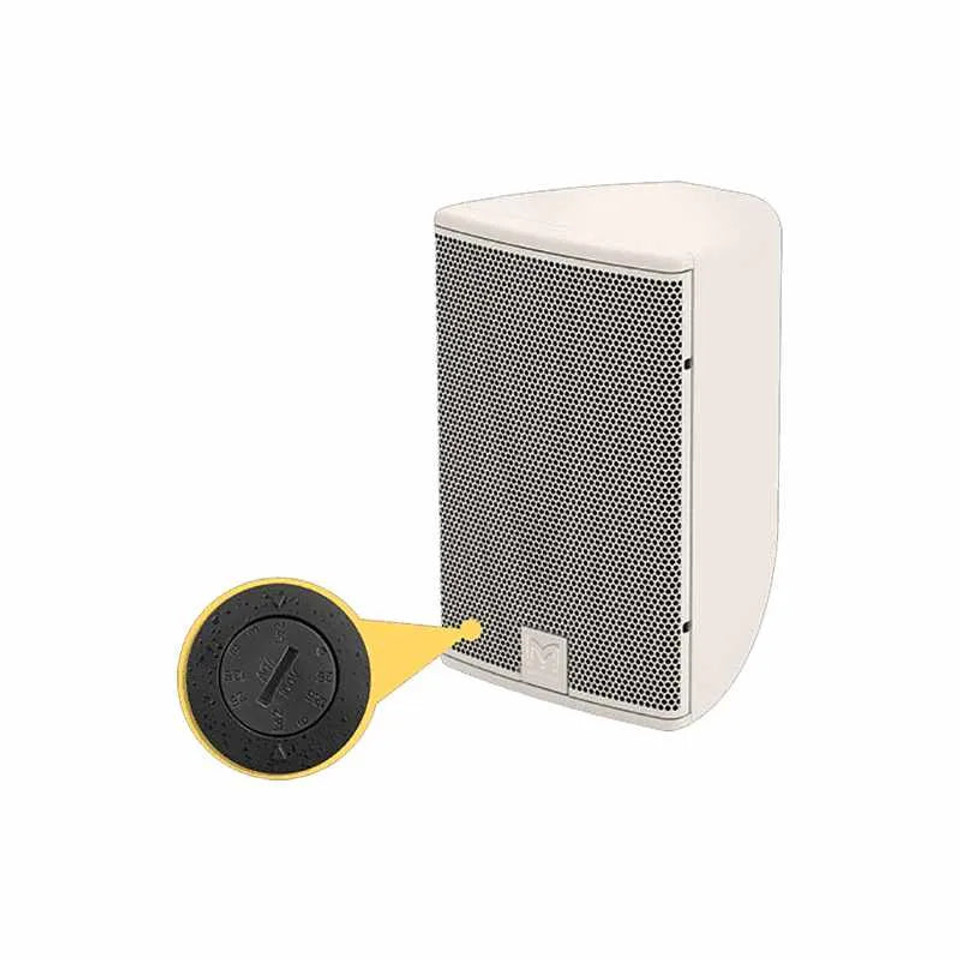

The CDD6TX-WR is a weatherised two-way passive micro speaker incorporating a 70V/100V line transformer and designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW as well as outdoor applications where it will be subject to changing environmental conditions, but sheltered from direct exposure to the elements. It can reproduce surprisingly high levels of music program and can also be used as a fill system in conjunction with larger CDD Series. It features a 6.5” (165mm) LF/1” (25mm) HF Coaxial Differential Dispersion driver inside an elegant UPM Formi composite enclosure with a dual cable gland for easy daisy-chaining of cabinets without the need for external breakout boxes.
Features:
- Ultra-Compact, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant UPM Formi composite enclosure
- Outdoor operation when sheltered from direct exposure to elements
- Operating temperature -20°C to +70°C
- Environmentally tested to meet IP54
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free water and particle resistant grille
- 8Ω nominal impedance
- Discreet weatherised mounting accessories
- Black or white standard colour options
- 70V/100V line transformer
Specifications:
- TYPE : Ultra-Compact, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE (5) : 80Hz-20kHz ±
- -10dB @ 70Hz
- DRIVER : LF: 6.5” (165mm)/1.5” (38mm) voice coil, long excursion, ferrite motor system
- HF: 1” (25mm) voice coil, fabric dome with neodymium motor system
- RATED POWER (2) : 150W AES, 600W peak
- TRANSFORMER SETTINGS : 100V line: 12.5W, 25W, 50W
- 70V line: 6.5W, 12.5W, 25W, 50W
- SENSITIVITY (8) : 91dB
- MAXIMUM SPL (9) : 113dB continuous, 119dB peak
- 2W=99dB, 12.5W=102dB, 25W=105dB, 50W=108dB.
- NOMINAL IMPEDANCE : 8Ω
- DISPERSION (-6DB) : 110°-80° horizontal, 80° vertical (user-rotatable)
- CROSSOVER : 2.5kHz passive
- ENCLOSURE : 9 litre, composite material
- FINISH : Black or white as standard
- PROTECTIVE GRILLE : Zinc plated mild steel with powder coated finish and weatherised backing
- ENVIRONMENTAL : Rated at IP54
- CONNECTORS : Low profile 13A push-lock, weatherproof input panel cover with dual cable glands
- PIN CONNECTIONS : Left to right: Input+, Input -, Link -, Link +
- FITTINGS : 4 x M6 inserts for wall/ceiling brackets
- DIMENSIONS : (W) 210mm x (H) 325mm x (D) 210mm
- (W) 8.3ins x (H) 12.8ins x (D) 8.3ins
- WEIGHT : 6.77kg (14.93lbs)
