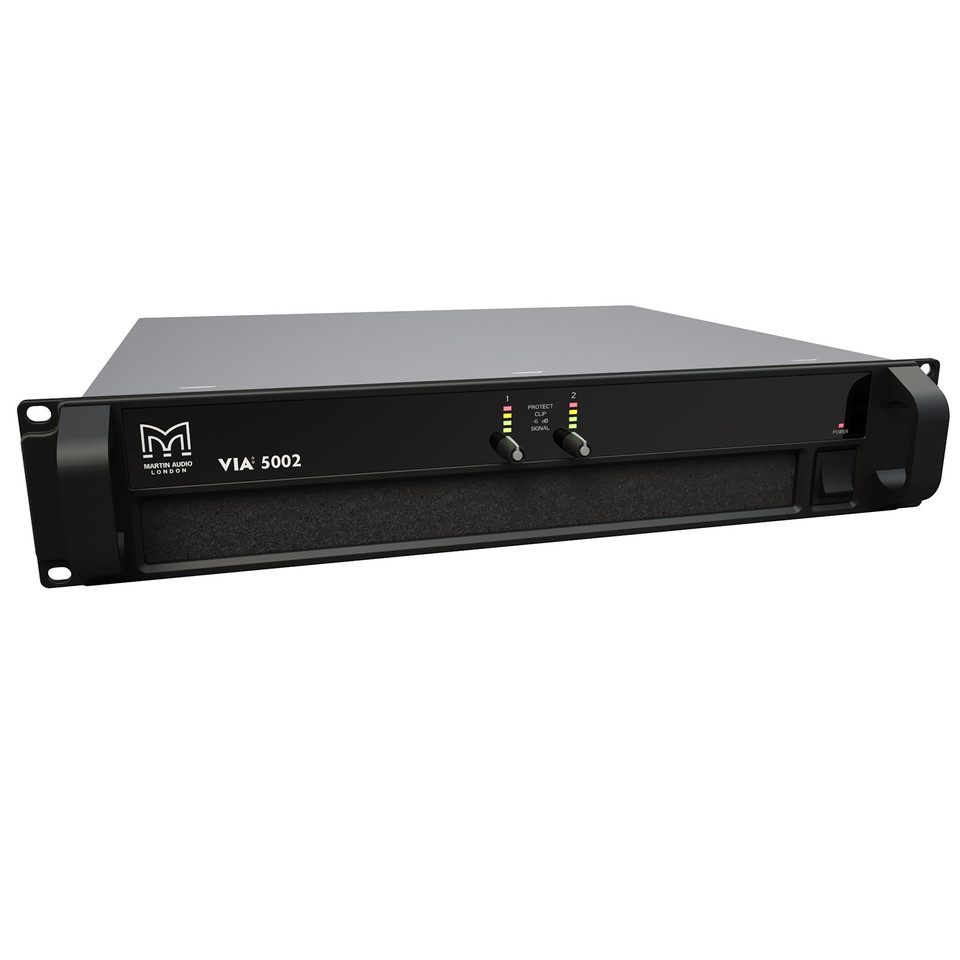

The VIA5002 is an advanced 2-channel power amplifier which combines high power density with superb audio performance in a lightweight, cost-effective package. Delivering 2 x 2500 watts into 4 ohms or 2 x 1600 watts into 8 ohms, it ideal for powering subwoofers in installations and portable sound systems.
Features
- Two channels of efficient Class D amplification
- 5000 Watts total power output
- 2U rack height
- Exceptionally lightweight
- Switch mode power supply
- Variable speed cooling fan with front-to-back airflow
- Global mains operation, 115V to 230V auto-sensing
- Comprehensive protection systems
- Signal and clip limiter LEDs
Applications
- Subwoofer amplification
- Installations, portable sound and stage monitoring
- Hotels, restaurants and bars
- Houses of Worship and auditoriums
- Educational facilities
- Live music and dance clubs
- Mobile DJ’s
Specifications
| General | |
| TYPE | Two-channel Class D amplifier |
| POWER OUTPUT * |
|
| CV LINE OUTPUT |
|
| COOLING | Vari-speed fans, front-to-back airflow |
| MAXIMUM AMBIENT TEMPERATURE | 40°C (105°F) |
| Audio Inputs/Outputs | |
| ANALOGUE IN/LINK (4 CHANNELS) | 2 x female, 2 x male Neutrikâ„¢ XLR |
| ANALOGUE INPUT IMPEDANCE | 10KΩ balanced |
| MAXIMUM ANALOGUE INPUT LEVEL | +20dBu |
| AMPLIFIER OUTPUTS | 2 x Neutrik Speakonâ„¢ NL4 |
| Audio Performance | |
| OUTPUT NOISE | -113dBA, referenced to max output (22kHz bandwidth) |
| FREQUENCY RESPONSE | <10Hz ->20kHz +/- 0.25dB |
| TOTAL HARMONIC DISTORTION | <0.05% typical @ 1kHz, -3dB output (22kHz bandwidth) |
| SLEW RATE | > 80V per microsecond |
| DAMPING FACTOR | 120 ref 8 ohms |
| Power Supply | |
| TYPE | 2 x high current, high frequency switch-mode |
| AC OPERATING RANGE | 100-240V +/-10% 45 - 65Hz |
| TOTAL SYSTEM EFFICIENCY | > 90% typical |
| MAINS CONNECTOR | 1 x Neutrik Powerconâ„¢ |
| Physical | |
| DIMENSIONS |
|
| WEIGHT | 10kg (22lbs) |
