Overview

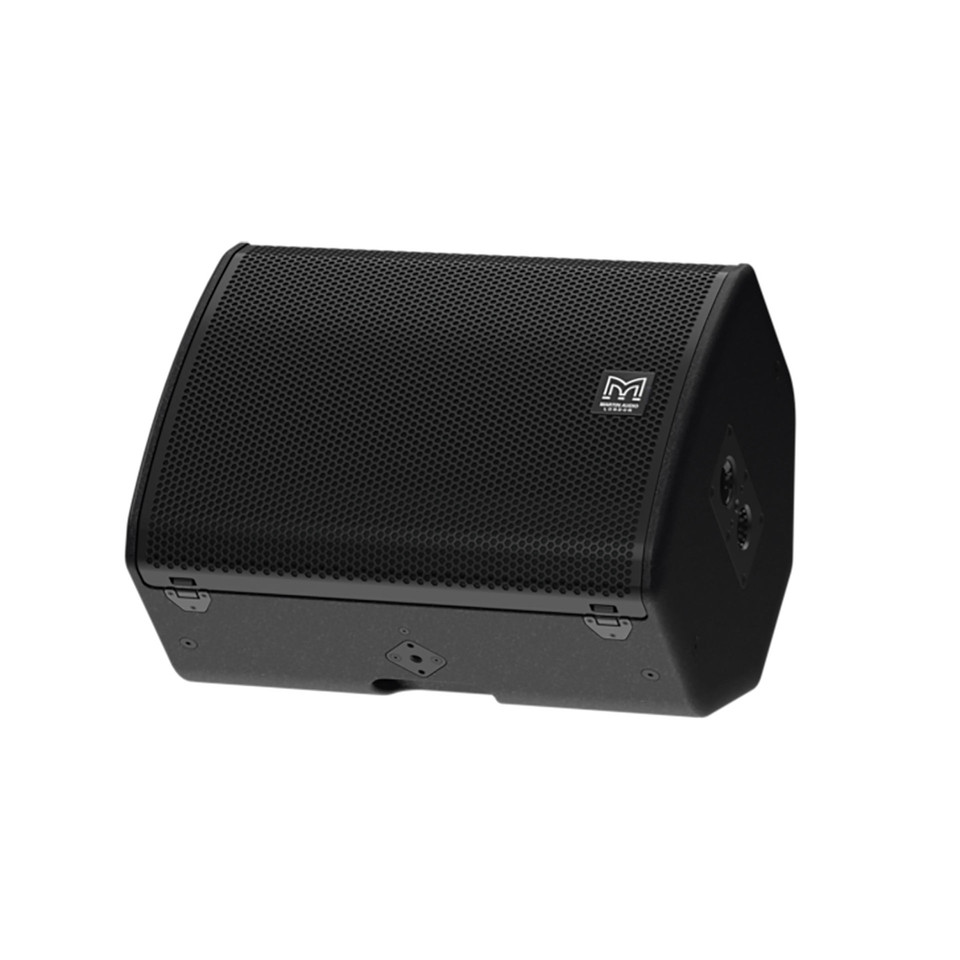

The FP12 is a premium, point-source loudspeaker designed for short-throw applications which require superb sonic performance, high output, and coverage consistency from a compact enclosure. Its small size and portability extend its range of applications from live sound and permanent installations to corporate events, gigging musicians and DJ’s.
Features
- Compact, passive two-way loudspeaker
- Versatile, multi-angle enclosure
- High output capability Coaxial Point Source configuration with user-rotatable drive unit
- 12” (300mm)/3” (75mm) voice coil low distortion neodymium LF driver
- 3” (75mm) titanium diaphragm/1.4” (35mm) exit HF driver
- 90° H x 60° V dispersion
- Quick-release steel grille
- 3D prediction software [DISPLAY 3]
- Powered by iKON or VIA amplifiers
Applications
- Portable live sound reinforcement
- Theatre sound
- Fixed installations
- DJ and corporate AV events
- High-power stage monitoring
Specifications
| PRODUCT NAME | FP12 |
| TYPE | Coaxial passive 2-way |
| CROSSOVER FREQUENCY | 1.5kHz |
| FREQUENCY RESPONSE - 4π (5) | 55Hz - 20kHz ± 3dB, -10dB @44Hz with preset |
| DRIVERS | LF: 12", 3" Voice coil, Neodymium Motor with flux stabilising ringsHF: 1.4" exit, 3" Voice coil, Coaxial titanium dome compression driver |
| SENSITIVITY (2.83V 1m free-field) | 97dB |
| NOMINAL IMPEDANCE | 8 Ohms |
| RATED POWER | 350W AES, 1400W peak |
| MAXIMUM SPL | 122dB Cont, 128dB Peak (6dB) |
| DISPERSION (-6dB) | 90° H, 60° V |
| CONNECTORS | NLT4MPXX-BAG speakons (pair) |
| PIN CONNECTIONS (INPUT) | 1+ / 1- |
| PIN CONNECTIONS (LINK) | 1+/- and 2+/- |
| FITTINGS | 4 x M10, 17 x M8 fixing points, dual pole-mount socket, 2 x handle pockets |
| DIMENSIONS | (W) 521mm, (H) 390mm, (D) 346mm (W) 20.5ins, (H) 15.4ins, (D) 13.6ins |
| WEIGHT | 17.5kg (38.6lbs) |
| VOLUME | 33.5L |
