Overview
Full size joystick controller provides Pan/Tilt control to CV-PT-HEAD as well as Marshall cameras, power, and setting adjustment.

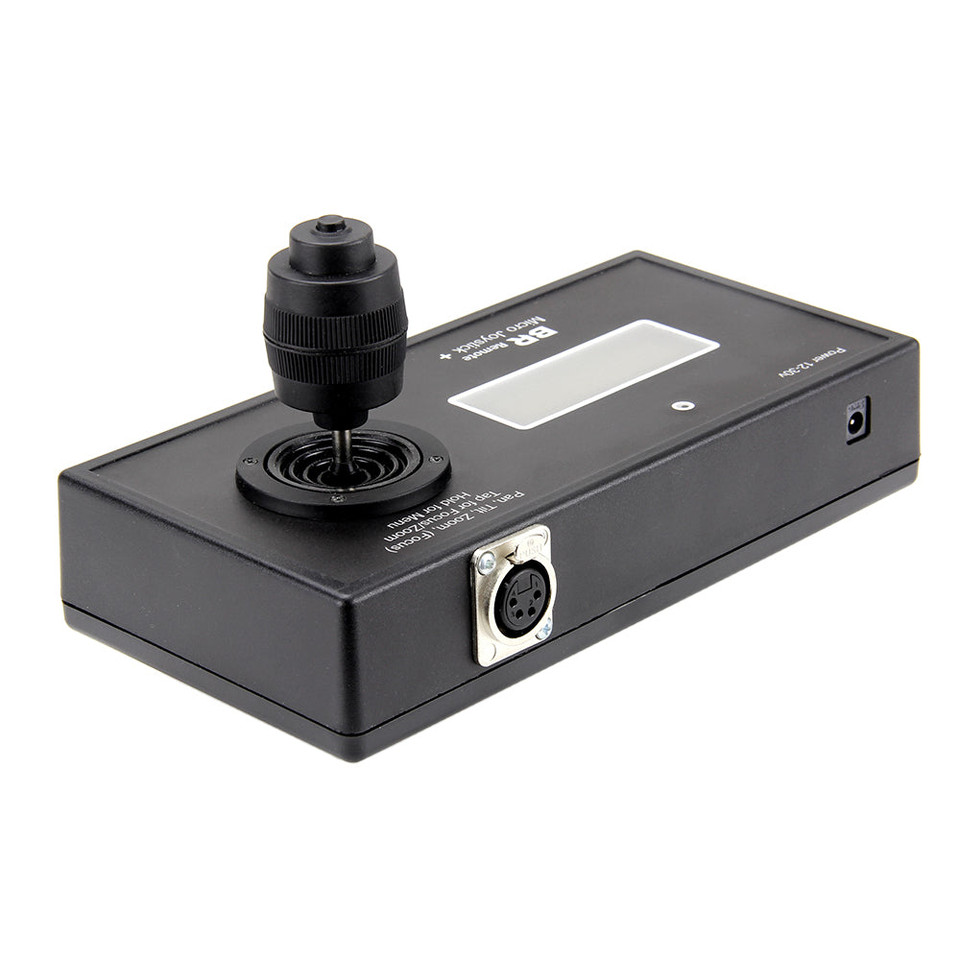

The Micro Joystick Controller (pn: CV-MICRO-J2) from Marshall Electronics is the smallest and most cost-effective joystick ever produced.Useful for many applications, the functionality of this joystick is all that is required for straight forward and easy setup operation.
CV-MICRO-J2 can control any BR remote heads and various cameras. It can address any head ID from 1 ~ 8 and can even re-assign the ID of each PT Head
A full size joystick controls both the pan, tilt, zoom & focus and is also used to cycle through the extensive menu functions. It has camera control protocols and CCU functions, built in. Using the Lemo (base) to Hirose (camera) cable included in CV-PT-HEAD box, it can accept data from
RCP as well as power camera – camera control offers full CCU control of the camera
POWER:
12 – 35v @ 0.2A + connected head
CONNECTIONS:
1DC jack, 4pin XLR on flying lead.
Option: 4 pin data input cable
JOYSTICK FUNCTIONS:
• Pan, Tilt, Zoom, Focus & Menu navigation
MENU FUNCTIONS:
• Pan & Tilt Speed & Direction
• Head Select & Re-Assign ident
• Ramp Up/Down
• Store & GoTo Pre-set positions (8)
• White Balance, Red Gain & Blue Gain
• Iris, Gain, Shutter
• Auto Focus & Auto Iris
• Master Pedestal, Gamma, Detail
• Dynamic Range, Noise Reduction
• Rec Run/Stop
• Camera Protocol Select
