Overview

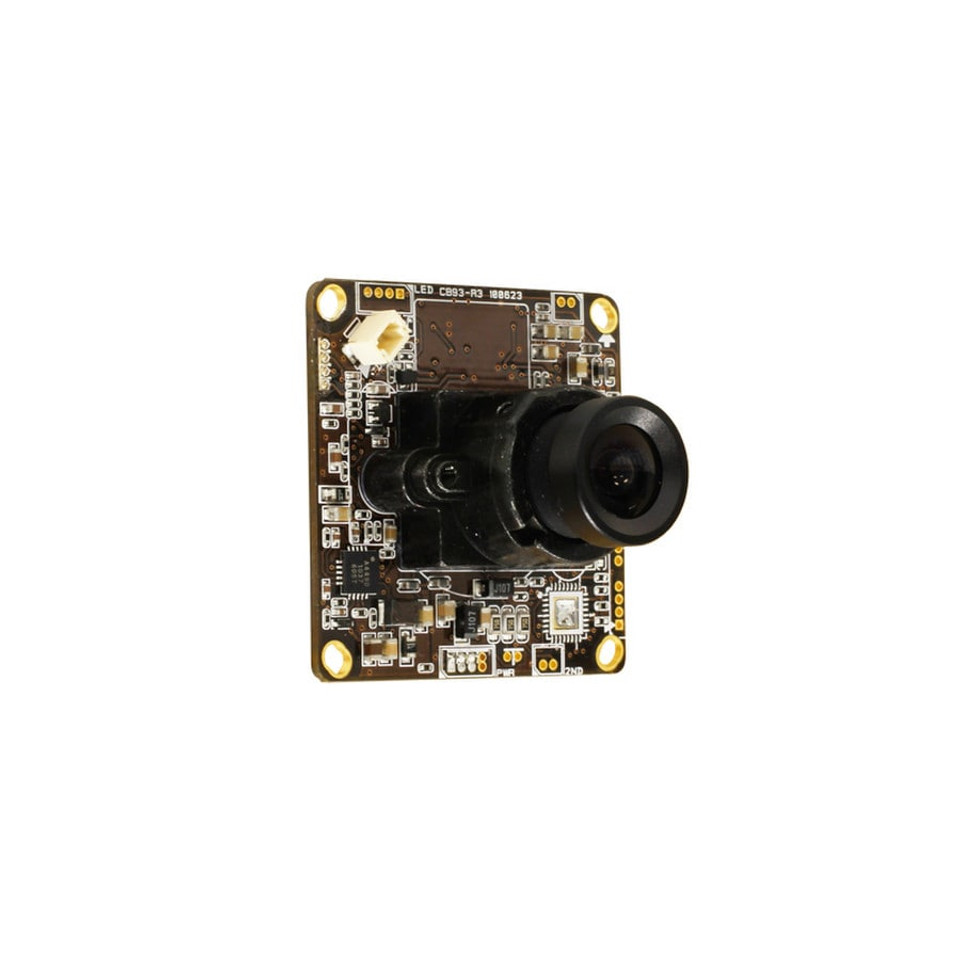

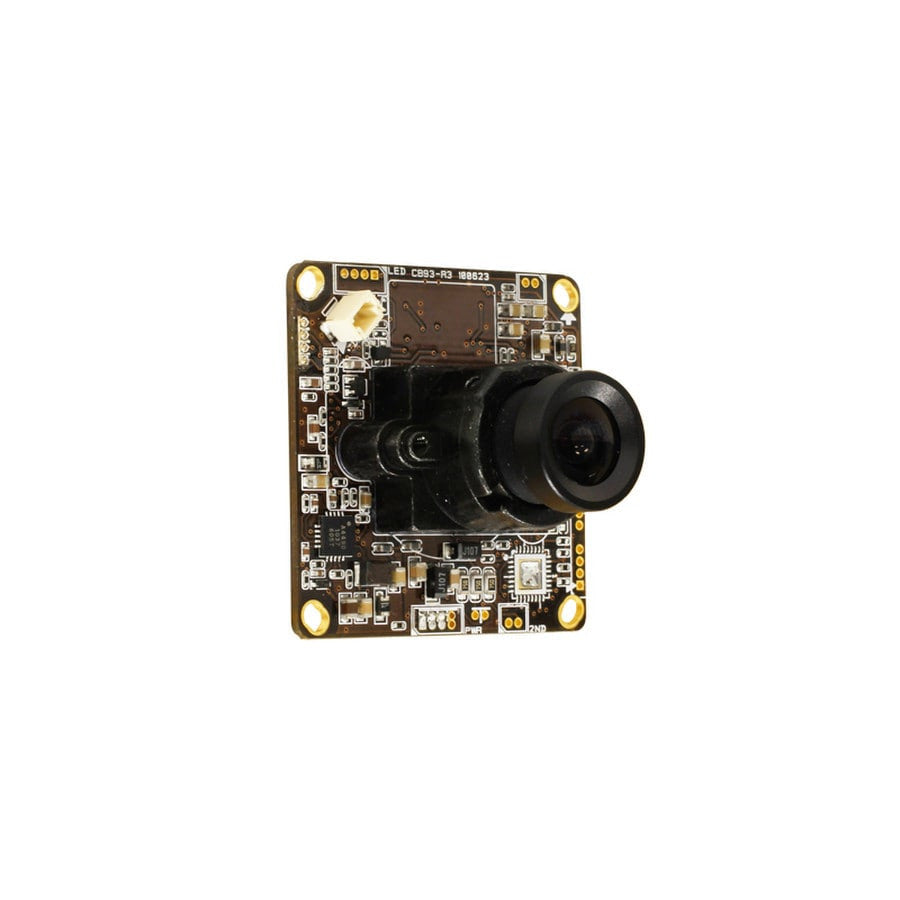

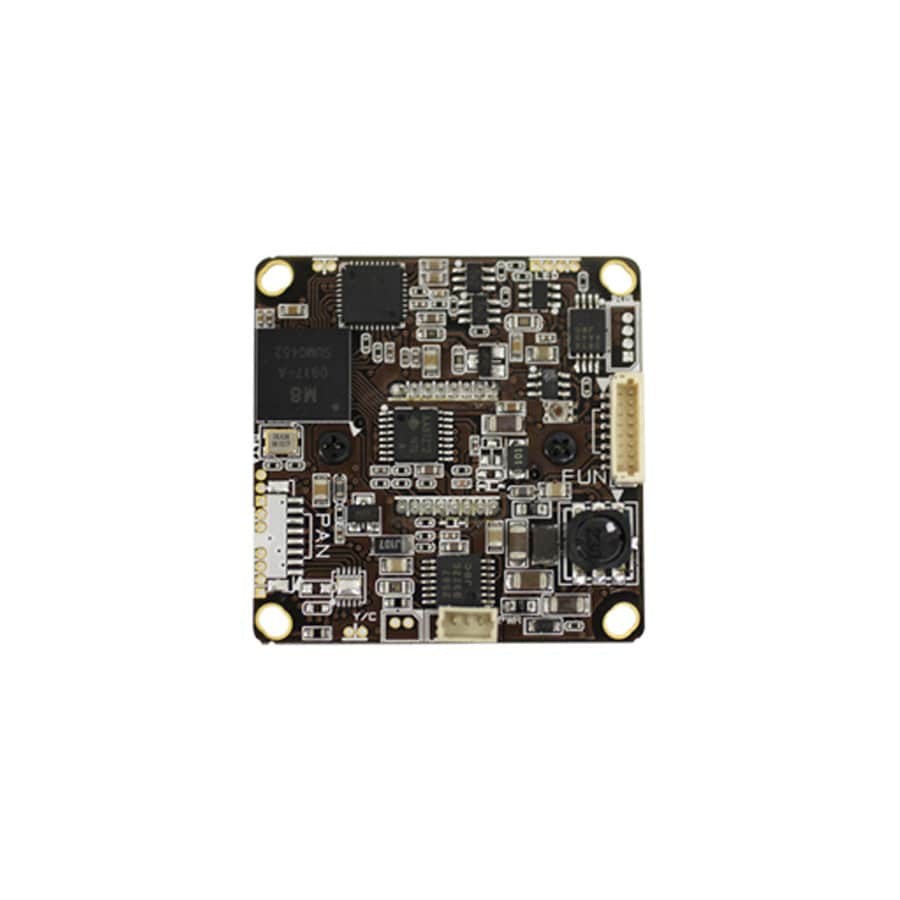

The V-1270 is a special board camera designed for various security,
industrial, OEM and scientific applications. Including installed 3.6mm
miniature lens. The M12 lens mount allows the option of most Marshall
V-4300 and V-4400 Series miniature lensing.
The 0.1 lux rating makes this camera especially useful with Marshall's
V-PL-CS / M12 compatible Wide Angle Pin Hole Lens models for covert
applications.
| SPECIFICATIONS | |
| Pick-up Element | 1/3" Interline Sony Super HAD II CCD |
| CCD Type | NTSC 1/3" 410K Pixels |
| Resolution | 520 Lines |
| Min Illumination | 0.1 Lux [F1.2 30 IRE ] |
| Lens | 3.6mm, F2.5 |
| Shutter Speed | NTSC 1/60s - 1/100,000s |
| S/N Ratio | 50dB or more (AGC Off) |
| Gamma | 0.45 |
| Input Voltage | DC 12V (10V ~ 16V) Max 1.2W or less |
| Dimensions | 38mm (L) x 38mm (W) x 29.3mm (D) |
| Operation Temperature | -10°C ~ +55°C |
| Storage Temperature | -20°C ~ +70°C |
| Operational Humidity | <90% (Non-condensing) |
