Overview

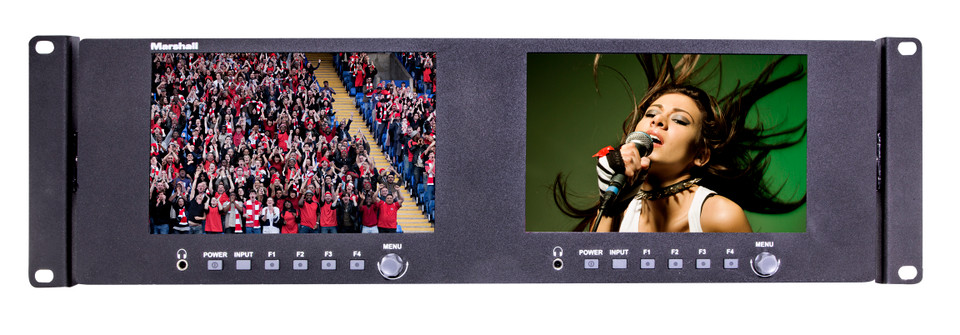

The ML-702 is a Dual 7" LCD professional broadcast monitor with a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms, and countless other video system applications. Looping video inputs set this product apart from similar-looking products. Standard power and tally connections and a logical menu structure make this display an easy choice for flexible system designs.
Dual Full HD Screens
Two High-Definition screens with excellent color rendition and stability. Adjustable back light compensates for different viewing environments.
Split-Screen Comparison
Compare HDR, Gamma and S-Log scene corrections side-by-side. See "before and after" effect in real-time.
Great Off-Axis Performance
Excellent angle of viewing allows the user to position the rack in any number of physical locations.
Features
- Dual 7" with 1920 x 1200 resolution, typical brightness 450 cd/m² and contrast 1100:1
- Each screen supports SDI, HDMI, CVBS (with analog audio) Inputs, all with looping outputs
- SDI supports up to 3G-Level A, HDMI supports up to 3840 x 2160p30 and 4096 x 2160p30.
- Two bar audio overlay
- Main features include:
- Compact size
- Tilting rack mount
- Dual power inputs
- Front panel control plus Ethernet control
- Bright displays with very good viewing angle
- Four User-defined function buttons
- Front panel headphone jacks
- On-screen Tally borders
- Histogram, marker, focus peaking and more
Specifications
|
Number of Panels |
2 |
|
Panel Size |
Dual 7-inch Diagonal, 3RU high |
|
Resolution (Pixels) |
1920 x 1200 |
|
Aspect Ratio |
16:10 |
|
Viewing Angle |
160° / 160° (H/V) |
|
Brightness (in cd/m2) |
450 |
|
Contrast Ratio |
1100:1 |
|
Digital Video Inputs |
3G-SDI with loop out (conforms to SMPTE-292M, 259M, 424M), HDMI 2.0 with loop out |
|
Analog Video Inputs |
CVBS (Composite) with loop out (RCA-type), Analog Stereo Audio (RCA-type) |
|
Compatible Input Formats |
SDI / HDSI / 3G SDI: |
|
HDMI: |
|
|
CVBS: |
|
|
Control Inputs |
RJ-45 for Ethernet Control, 9-pin D-Sub for GPI Tally Control, Mini USB Service Port |
|
Power |
12 Volts DC @ 1.5 Amps (10.8 – 24V range) via XLR 4-pin or 5.5mm x 2.1mm push-in coaxial jack |
|
Dimensions |
19" W x 5.125" H x 1.75" D (482.6 mm x 130.175 mm x 44.45 mm) |
|
Weight |
5.3 lbs (2.4 Kg) |
