Overview

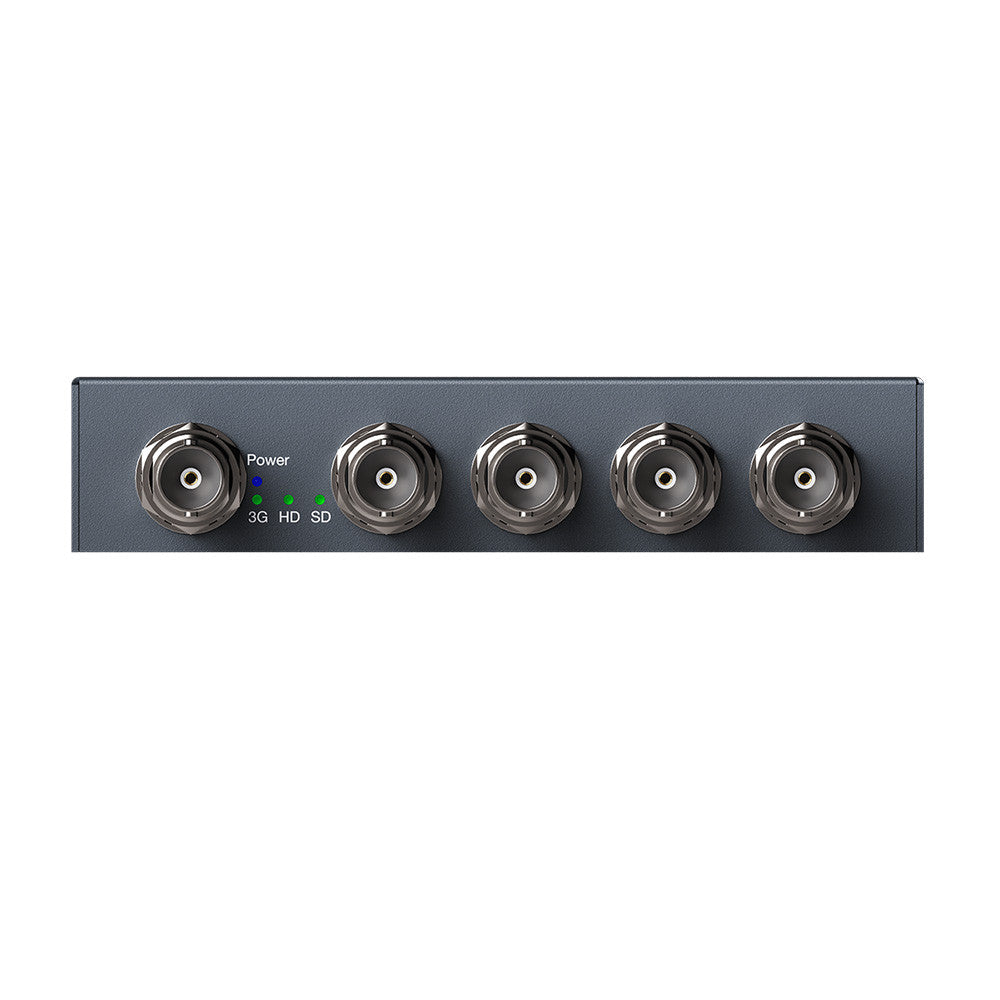

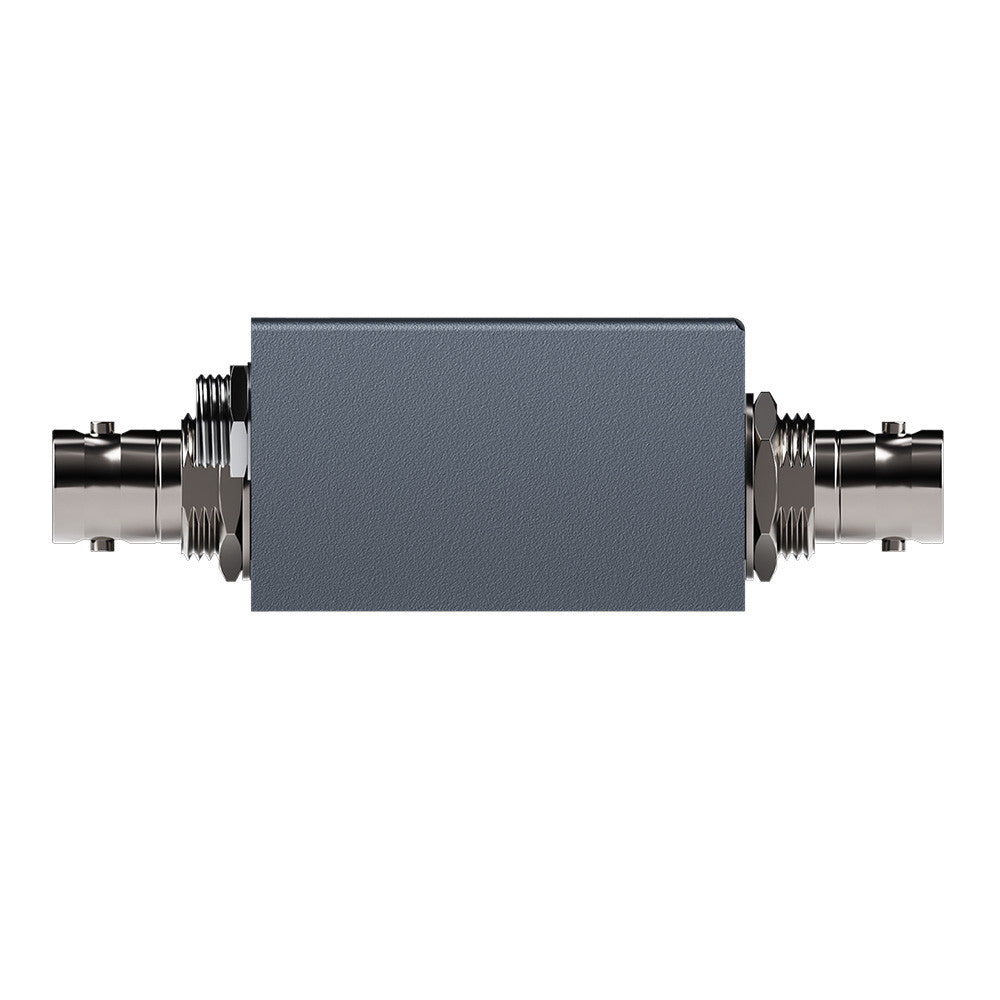

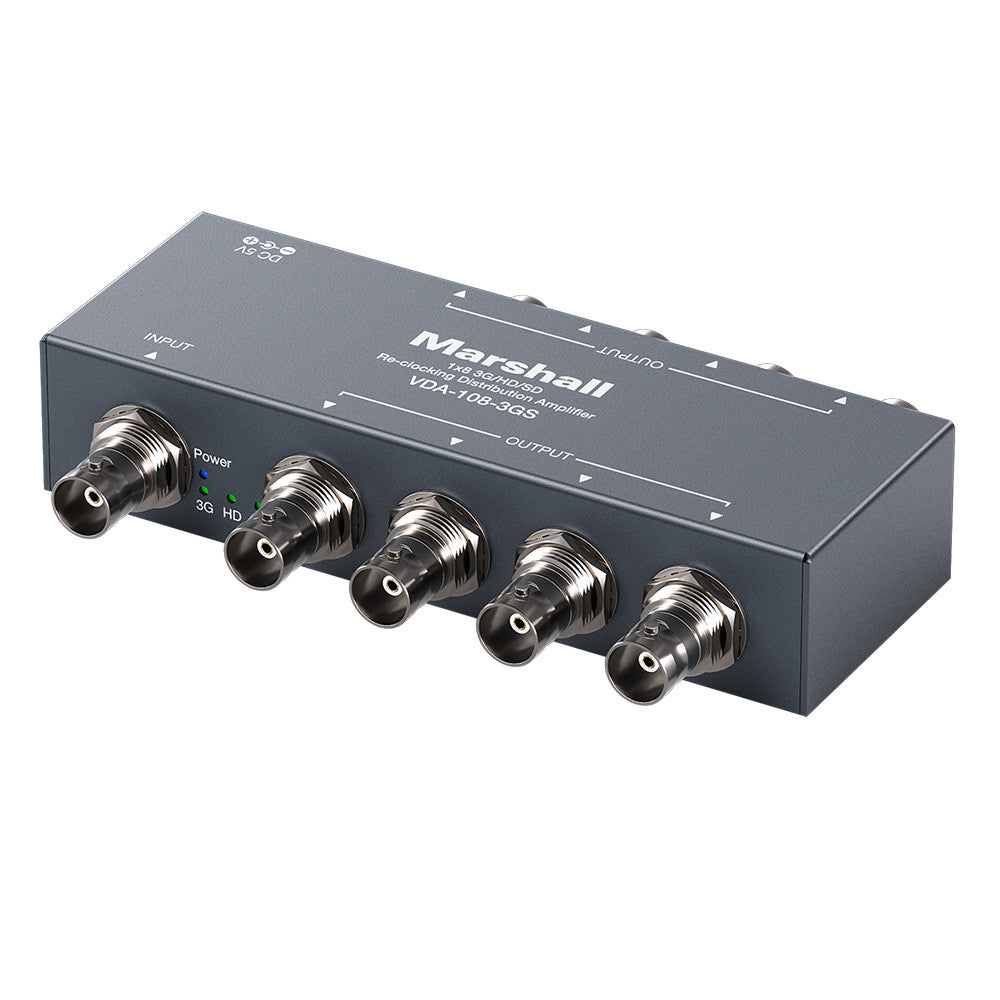

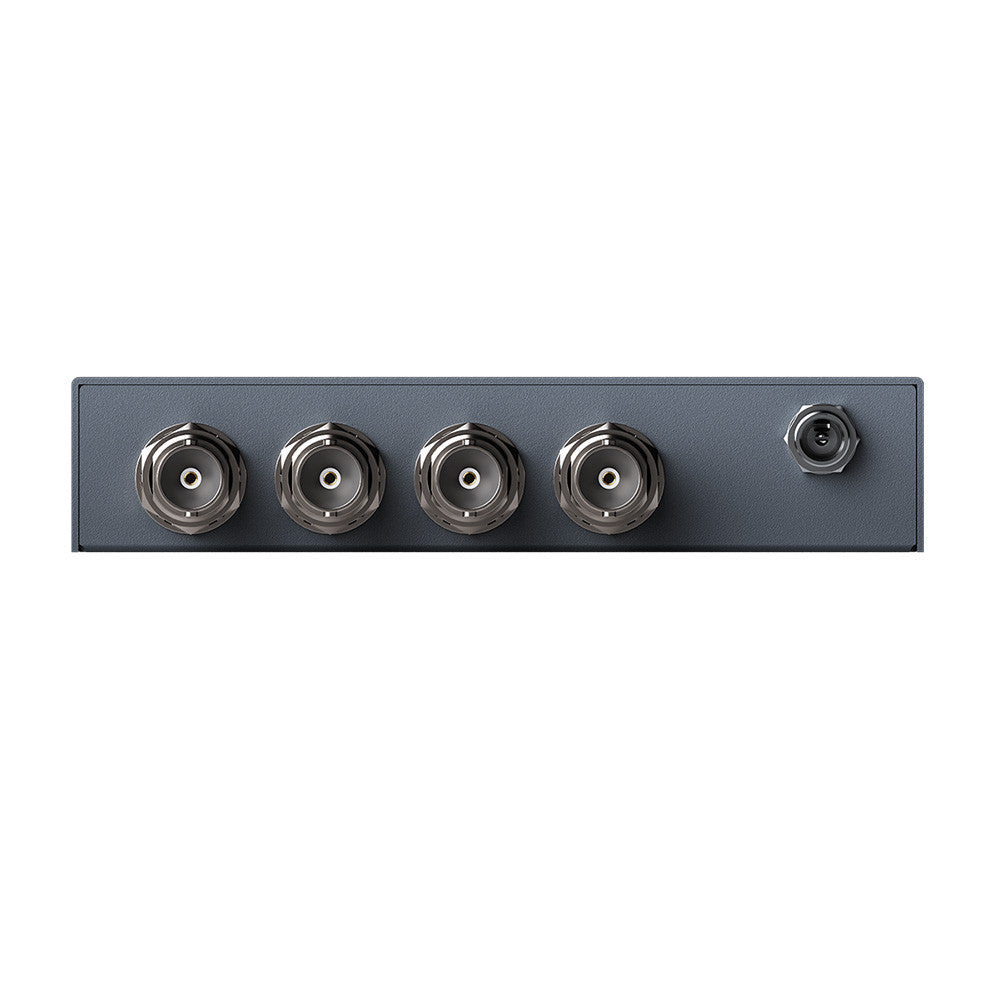

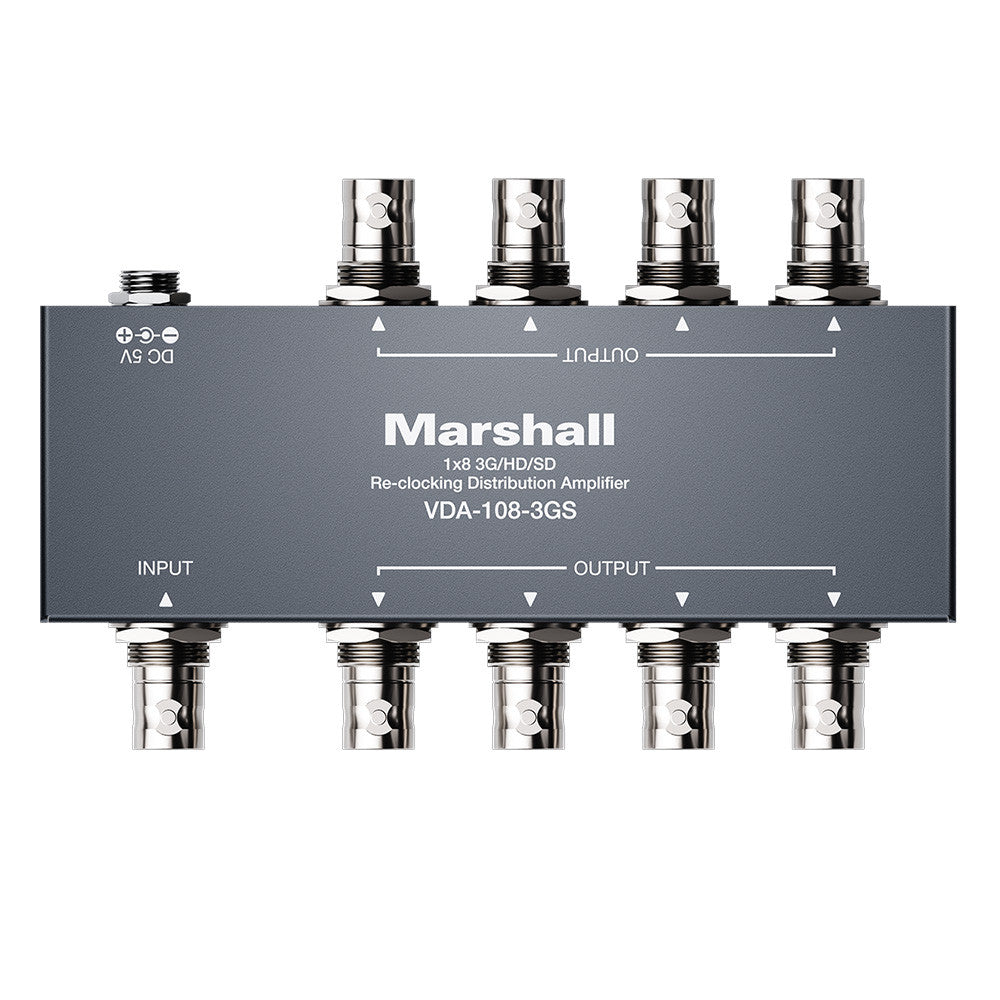

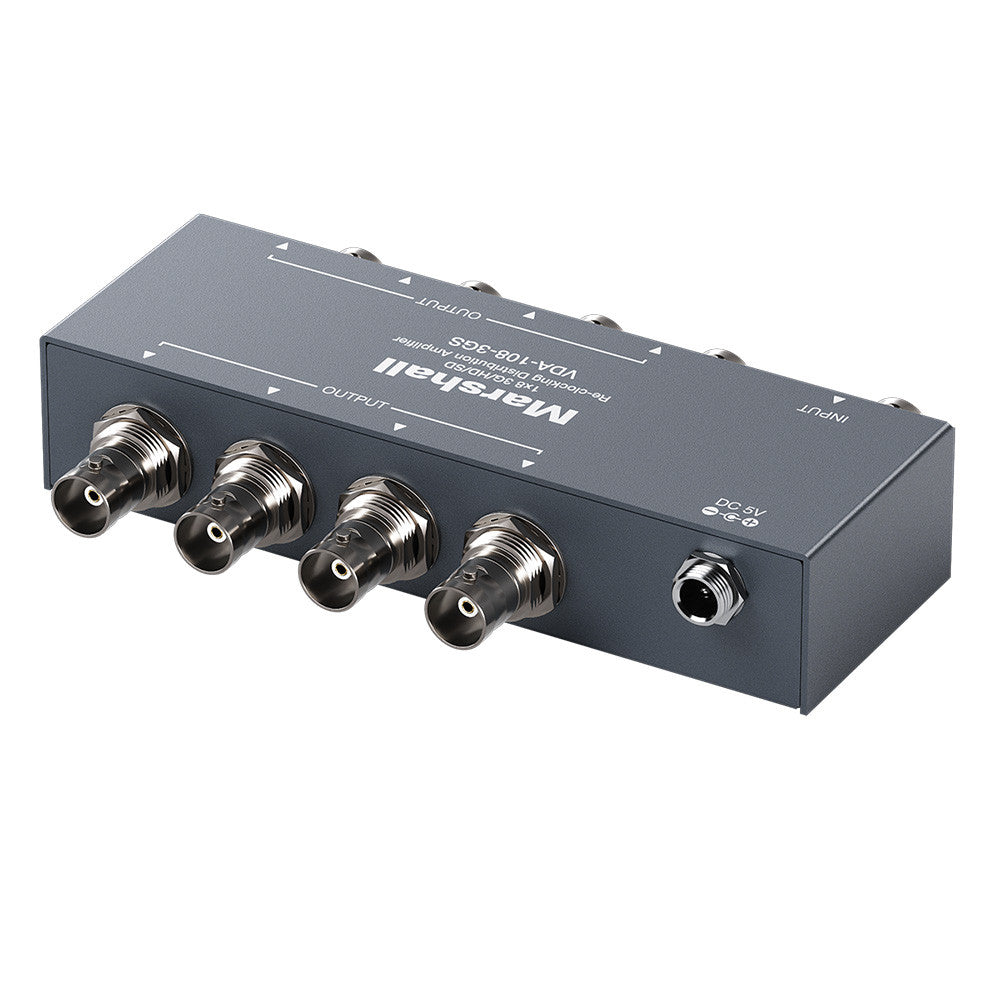

Marshall Electronics VDA-108-3GS
1 × 8 3G/HD/SD-SDI reclocking distribution amplifier receives one SDI
input, perfectly duplicates it, and re-transmits eight SDI outputs for
real time multi-viewing. It is a reliable video device splitting a SDI,
HD-SDI, or 3G-SDI video source to eight SDI compliant displays at the
same time. Besides, built-in re-clocking & equalization features
provide the best performance for SDI distribution amplifier.
Features:
- 3G/HD/SD serial digital distribution
- Eight separately buffered and reclocked outputs
- Dual color LED indication of input lock and rate
- Passes all ancillary data
- Compatible with USB power sources using 3rd party adapter cables
Specifications
| Technical | | SDI standards | SD/HD/3G-SDI | | Auto 3G/HD/SD detection | Yes | | Supported protocols | SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE425M | | Video bandwidth | [2.97Gpbs & 2.97/1.001Gbps] | | Data rates | 270 / 1483 / 1485 / 2970 Mbps | | Output impedance | 75 | | Re-clocking function | Yes | | Cable equalization | [3G-SDI] >120m (394ft) / [HD-SDI] >200m (656ft) / [SD-SDI] >300m (984ft) | | Audio support | Yes | | RP-198 pathological patterns | Immune | | PCB stack-up | 4-layer board [impedance control — differential 100; single 50] | | Input | 1x BNC [SDI] | | Output | 4x BNC [SDI] | | BNC connector | 75inter-locked socket | | Eye pattern characteristics [HD] | | Amplitude | Within 800mV ±3% (<10%) | | Long time jitter | 0.195 UI (<1.0 UI) | | Rise overshoot | Less than 2% (<10%) | | Timing jitter | 0.195 UI (<1.0 UI) | | Fall overshoot | Less than 2% (<10%) | | Alignment jitter | 0.127 UI (<0.2 UI) |
| | Mechanincal | | Housing | Metal enclosure | | Dimensions [L x W x H] | | Model | 120.5 x 41.4 x 24.2㎜ [4.7 x 1.6 x1 ] | | Package | 175 x 128 x 134㎜ [6.9" x5" x5.3"] | | Carton | 662 x 366 x 290㎜ [2'2" x 1'2" x 1'] |
| | Weight | | Model | 259g [0.6 lbs] | | Package | 525g [1.2 lbs] |
| | Fixedness | Inter-locked power supply | | Power supply | 5V 2A DC | | Power consumption | 1.3 Watts [max] | | Operation temperature | 0∼40°C [32∼104°F] | | Storage temperature | -20∼60°C [-4∼140°F] | | Relative humidity | 20∼90% RH [no condensation] |
|
|
