Overview

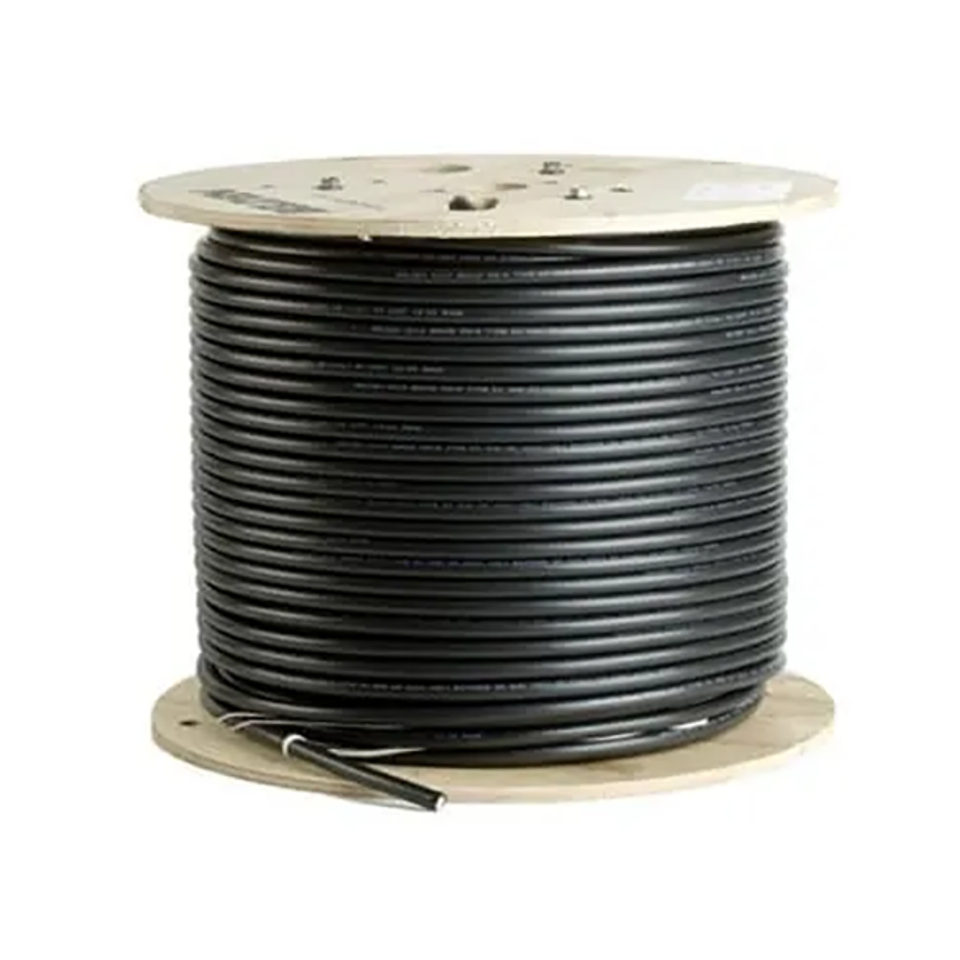

RG-8 50 Ohm Preassembled Coaxial Cable
Order a length of cable needed for your pre-designed RF or IR assistive listening system with the LA-390 preassembled cable. Each order comes with both BNC connectors attached to our RG-8 cable.
Highlights
- RG-8 cable and BNC connectors made for use with RF and IR system installations
- Longest runs with lowest signal loss
Specifications
RF
- Attenuation: 1 dB per 50 ft. on 72 MHz, 2 dB per 50 ft. on 216 MHz
Physical
- Cable Type: RG-8/U Low Loss 50 Ohm
- Material: Foam Polyethylene Insulation, PVC Jacket, bare copper conductor, bare copper braided shield
- Diameter: Outer: .403 in. (10.24 mm), Inner: .285 in. (7.24 mm)
- Unit Weight: 14.2 lbs. (6.5 kg) per 100 ft.
- Shipping Weight: 15.0 lbs. (6.8 kg) per 100 ft.
