Overview

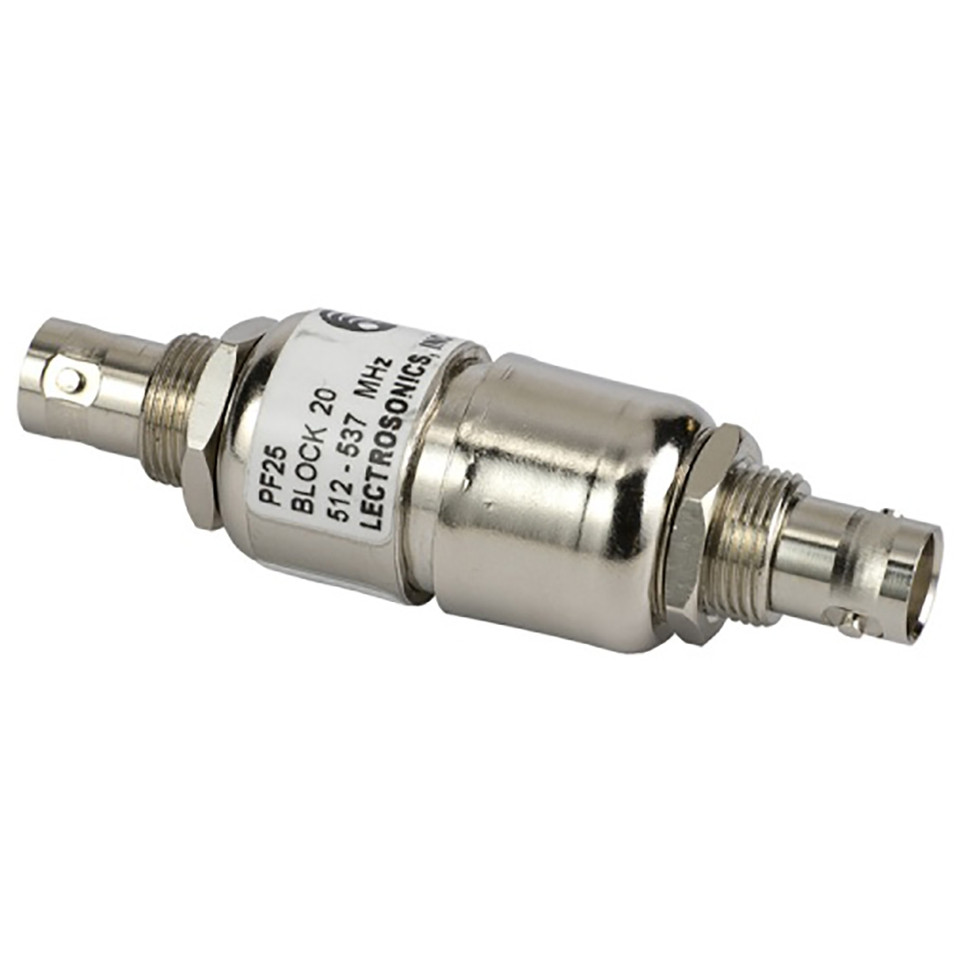

Passive in-line RF filter with 25MHz passband. Designed for use with VRMWB and VRField WB wide-band receiver systems in cases where the full bandwidth of the receiver is not needed. Specify block when ordering.
Specifications
- Filter type: SAW (surface acoustic wave)
- Bandwidth: Varies with frequency block
- Standard frequency blocks:Maximum RF level: +10 dBm
- DC bias power capacity: 350 mA max.
- Input impedance: 50 Ohm BNC
- Output impedance: 50 Ohm BNC
- Dimensions: 2.97 x 0.84 dia. (inches),75 x 21 dia. (mm)
- Weight: 2.7 ozs. 76 grams
