Overview

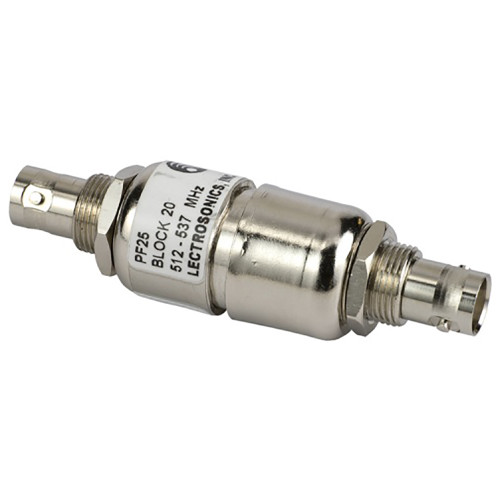

Passive in-line RF filter with 25MHz passband. Designed for use with VRMWB and VRField WB wide-band receiver systems in cases where the full bandwidth of the receiver is not needed. Specify block when ordering.

Specifications

• Filter type: SAW (surface acoustic wave)
• Bandwidth: Varies with frequency block
• Standard frequency blocks:Maximum RF level: +10 dBm
• DC bias power capacity: 350 mA max.
• Input impedance: 50 Ohm BNC
• Output impedance: 50 Ohm BNC
• Dimensions: 2.97 x 0.84 dia. (inches),75 x 21 dia. (mm)
• Weight: 2.7 ozs. 76 grams
