Overview

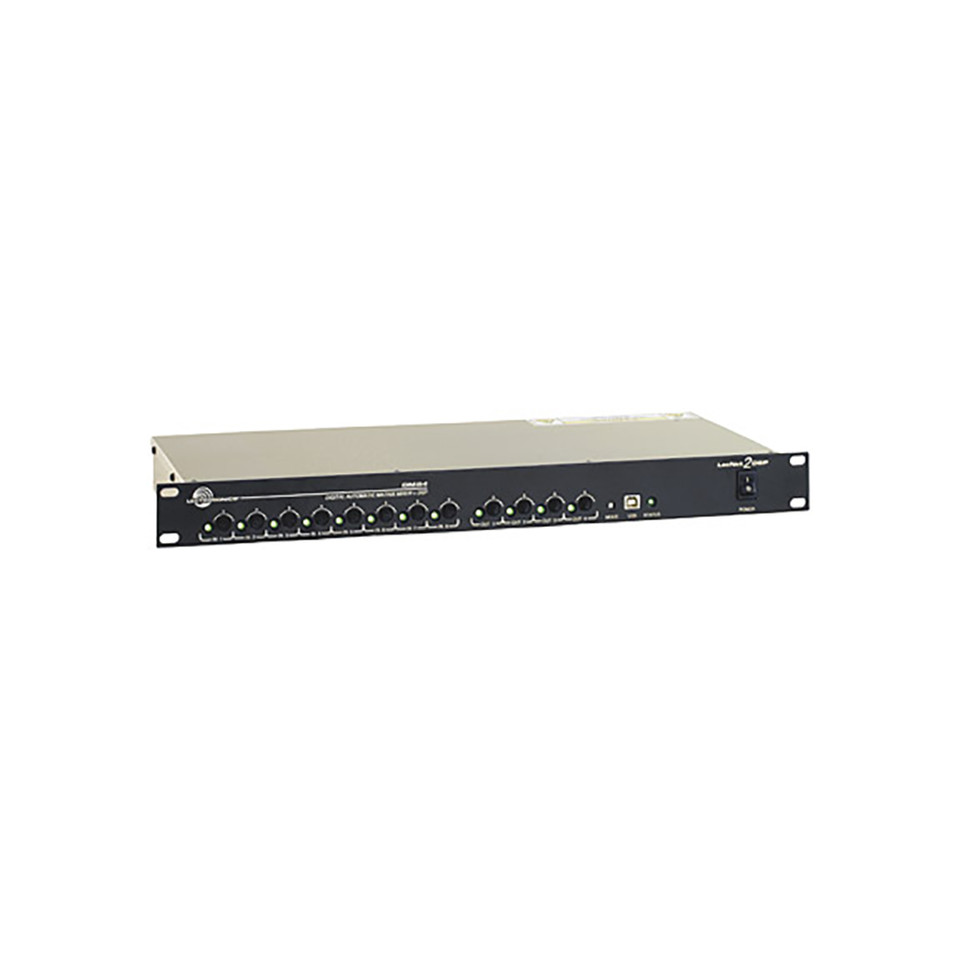

The DM84 is an 8-in, 4-out digital matrix processor with the capability to route any combination of inputs to any combination of outputs with extremely low throughput latency. Automatic microphone mixing is accomplished via a patented Adaptive Proportional Gain algorithm. Sophisticated filtering is offered on each input and output. A compressor is available on each input, a compressor and limiter on each output. In addition, each input and output can be configured with a delay setting of up to 100 ms for inputs, 250 ms for outputs. The DM84 runs on the latest-generation DSP architecture and can be integrated as part of a larger system by connecting other DM units (like the DMTH4) via the Digital Audio Network Interface (DANI) bus.
The DM84 has enhanced expandability - up to a limit of three, combining multiple DM84 units expands not only the number of the mic inputs, but also the number of distinct outputs/mix busses in the system. Stacking 2 units creates a 16x8 mixing matrix; stacking 3 units creates a 24x12 mixing matrix. While individual outputs/mix buses are normally treated as independent NOM buses for microphone mixing, the DM84's "phantom" mix mode capability allows multiple mix busses to be combined into a single NOM bus for mix-minus sound reinforcement applications.
The DM84 offers eight mic/line inputs with four mic/line outputs; switchable phantom power to handle condenser microphones; programmable front-panel control knobs for easy input and output gain adjustment; front panel indicators for input and output channel activity; and auto mic mixing with Proportional Gain and AutoSkew. The unit is AMX® and CRESTRON® compatible with USB and RS-232 interfaces for setup and control. Also, a programmable I/O interface allows control using contact closures or voltage levels as well as system status monitoring.
Features
- 8-in/4-out digital matrix architecture
- Stackable with enlarged matrix up to 24-in/12-out
- Front panel level controls with activity LEDs
- 6 filters plus compressor on each input
- 9 filters plus compressor/limiter on each output
- USB and RS-232 interfaces for setup and control
- Fully balanced audio signal flow through entire system
- Digital I/O ports for connection to other LecNet 2 devices
- Proportional gain auto mixing algorithm with AutoSkew™ - US Patent 5,414,776
- Simultaneous LecNet2 and Third-Party control
Specifications
|
Audio inputs
|
|
|
Gain:
|
-10 dB to +60 dB, programmable in 1 dB steps |
|
Input impedance:
|
2.5 k Ohm |
|
Phantom voltage:
|
15 V, programmable |
|
Connector:
|
5-pin Phoenix |
|
Audio outputs:
|
|
|
Nominal level:
|
Floating balanced, either side can be grounded 0 dBu all outputs, -40 dBu selectable on outputs 9 through 12 |
|
Output impedance:
|
• 450 Ohm differential programmable outputs at line level
|
|
• 5 Ohm differential programmable outputs at microphone level
|
|
|
Input Dynamic Range:
|
96 dB at -50 dBu input level 102 dB at all other levels (unweighted 20 - 20 kHz)
|
|
Output Dynamic Range:
|
105 dB (unweighted 20 - 20 kHz)
|
|
Audio Performance:
|
|
|
IMD + noise:
|
0.1% max.
|
|
0.02% nominal input level
|
|
|
THD + noise:
|
0.1% (worst case)
|
|
0.02% nominal input level
|
|
|
EIN:
|
-126 dBu
|
|
Connectors:
|
|
|
Audio I/O:
|
5-pin Phoenix
|
|
Expansion:
|
RJ45
|
|
Logic I/O:
|
DB25
|
|
Serial:
|
Standard USB and mini TRS
|
| Digital Audio Network Interface (DANI) | |
|
Physical level:
|
LVDS (Low Voltage DIfferential Signal) high speed |
|
Connector:
|
Four RJ-45 |
|
Cable quality:
|
Shielded CAT-5 |
|
Transmission speed:
|
50 Mbits/s |
|
Programmable control inputs
|
|
|
Number of inputs:
|
11 |
|
Analog voltage range:
|
0-5V |
|
Logic input:
|
TTL, LVTTL, CMOS, LVCMOS |
|
Programmable control outputs
|
|
|
Number of logic outputs:
|
8 |
|
Logic control:
|
Active low |
|
Max sink current:
|
100 mA |
|
Max supply voltage:
|
40 V |
|
Supply voltage for control I/O:
|
5 V |
|
Max current:
|
750 mA |
|
Power requirements:
|
100-240 VAC, 47-63 Hz |
|
Power consumption:
|
15 Watts |
