Overview

WP−DEC7 is an advanced decoder for streaming 4K video signals via Ethernet over copper cable.

Features

• Video Streaming Receiver — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface.
• Streaming Support — Unicast and multicast.
• Analog Audio De–Embedding Output — Extract the HDMI audio or LAN streaming audio and output it as balanced analog audio.
• Convenient and Comprehensive Control — Control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet or front panel LCD and buttons.
• Control Gateway — Through P3K or special TCP connection, user could control/communicate with RS232 and CEC to the connected devices.
• Video Wall — Up to 16x16 size.
• PoE Support — Option to power with PoE connection from a PoE switch

Applications

• For real–time essential installations such as command and control rooms
• For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
• AV distribution systems with one or more sources and many displays in schools, universities, and public venues
• For AV installations where low latency KM/KVM capabilities are required

Specifications

Outputs

• 1 HDMI: On a female HDMI connector

Ports

• 2 Ethernet: On RJ–45 connectors
• 1 Balanced Audio: On a 5–pin terminal block connector
• 1 RS-232: On a 3–pin terminal block connector

Network

• Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non–blocking, Layer 2
• Unicast: Through RTSP (Real Time Streaming Protocol)
• Bitrate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps

Video

• Compression Standard: JPEG based, private stream
• Max Resolution: 4K@30Hz 4:4:4

Video Streaming

• Compression Standard: JPEG2K based, proprietary stream
• Max Input Resolution: 4K@60hz (4:2:0)
• Max Output Resolution: 4K@30hz (4:4:4)
• Max End-to-End Resolution: 4K@30hz (4:4:4)
• Scaler: Yes
• End-to-End Latency: 33msec
• Switching Time: 1sec

Resolution

• 4096x2160@60Hz, 1600x1200@60Hz, 1280x960@60Hz, 848x480@60Hz,
• 3840x2160@60Hz, 1600x900@60Hz,   1280x800@60Hz, 800x600@60Hz,
• 1920x1200@50Hz, 1440x900@60Hz,   1280x768@60Hz, 720x576@60Hz,
• 1920x1080@60Hz, 1400x1050@60Hz, 1280x720@60Hz, 720x480@50Hz,
• 1856x1392@60Hz, 1366x768@60Hz,   1224x768@70Hz, 640x480@60Hz,
• 1792x1344@60Hz, 1360x768@60Hz,   1152x864@70Hz, 640x400@85Hz,
• 1680x1050@60Hz,                                   1024x768@60Hz, 640x350@85Hz

Audio

• Supported Formats: LPCM, Dolby and DTS
• LPCM: LPCM upto 7.1/24–bit/192kHz
• Dolby: Dolby AtmosTM, Dolby TrueHD, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0
• DTS: DTS–HD Master AudioTM, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1

Security

• HTTPS, 802.1x, OWASP–10, AES–128 encryption of AV streaming with changeable key

User Interface

• Indicators: HDMI and ON LEDs, front panel LCD Display
• Recessed Buttons: CH+/CH — and factory reset
• Controls: Embedded web pages, P3K API commands via Ethernet

Power

• PoE (Power over Ethernet): 37V to 57V, maximum power consumption 12W
• Optional power supply: 20V DC, 6A Max

Environmental Conditions

• Operating Temperature: 0° to +45°C (32° to 113°F)
• Storage Temperature: –20° to +70°C (–4° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing

Regulatory Compliance (Standards Compliance)

• Safety: CE, FCC
• Environmental: RoHs, WEEE

Enclosure

• Size: 2–gang
• Type: Metal (SGCC)
• Cooling: Convection ventilation

Product Dimensions

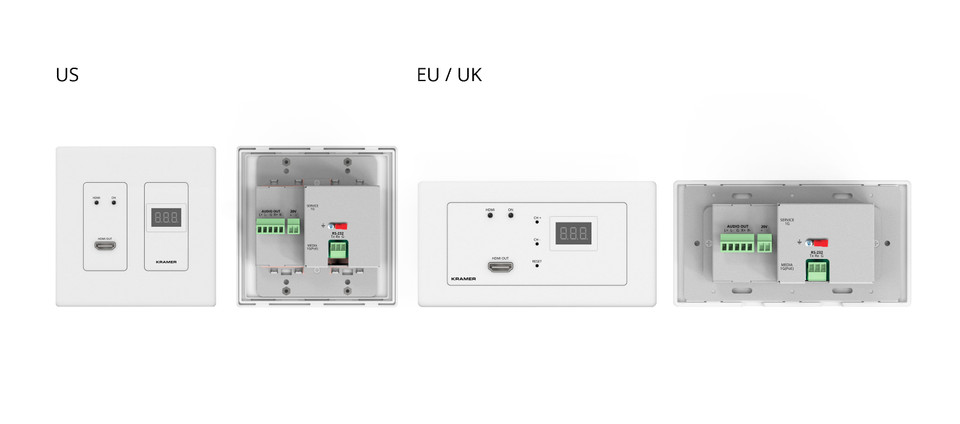

• US: 12.10cm x 4.56cm x 12.10cm (4.76" x 1.80" x 4.76" ) W, D, H
• UK: 15.10cm x 4.56cm x 8.60cm (5.94" x 1.80" x 3.39" ) W, D, H

Product Weight

• US: 0.4kg (0.9lbs) approx.
• UK: 0.4kg (0.9lbs) approx.

Shipping Dimensions

• US: 20.00cm x 13.70cm x 7.50cm (7.87" x 5.39" x 2.95" ) W, D, H
• UK: 23.80cm x 13.70cm x 7.50cm (9.37" x 5.39" x 2.95" ) W, D, H

Shipping Weight

• US: 0.6kg (1.3lbs) approx.
• UK: 0.7kg (1.4lbs) approx.
