Overview

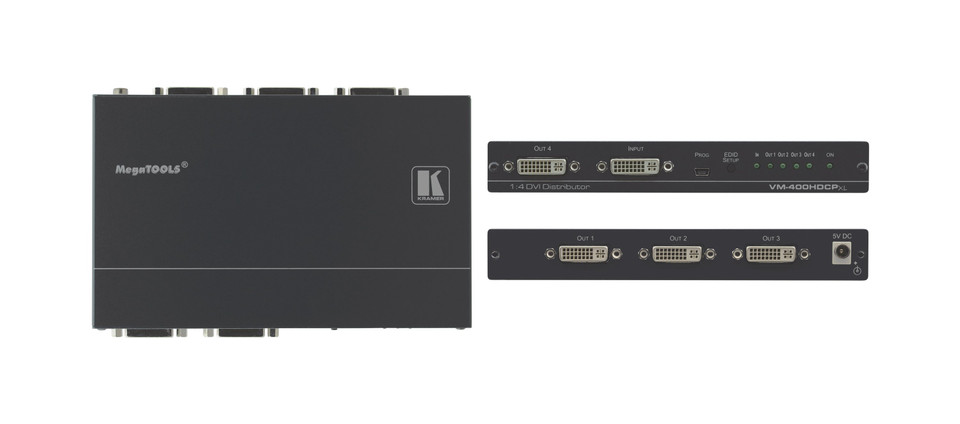

VM−400HDCPxl is a 1:4 distribution amplifier for up to 4K@60Hz (4:2:0) HDMI signals, complying with HDCP 1.4 content protection standard, via single−link DVI−I connections. The unit takes one DVI input, equalizes and reclocks the signal, and distributes it to four identical outputs.

• High Performance Distributor — Professional 1:4 DVI distributor for up to 4K@60Hz (4:2:0) video resolution signals. Via single–link DVI–I connections, one HDMI HDCP 1.4 input signal is amplified and distributed to four identical output signals, with signals rebuilt using Kramer Equalization & re–Klocking™ Technology to gain longer distances.
• Secured Operation — Highly–secured operation is ensured by lockable wiring connectivity with protection against unintentional cables connection.
• HDMI Signal Transmission — HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID signals are passed through from the source to the displays.
• EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for DVI source and display systems.
• User–Friendly Operation — Comprehensive signal distribution features and signal mode–forcing options such as RGB forcing, with convenient EDID selection front panel button.
• Cost–Effective Field Maintenance — Mini–USB connection for simple field firmware upgrade using the Kramer K–Upload tool. Status indicators for fast and effective troubleshooting.
• Easy Installation — Compact MegaTOOLS™ fan–less enclosure for over–ceiling mounting, or side–by–side rack mounting.

Specifications

INPUTS

• 1 DVI on a DVI–I female connector

OUTPUTS

• 4 DVI on DVI–I female connectors

PORTS

• 1 RS–232 on Mini–USB female connector for firmware upgrade

VIDEO

• Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
• Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
• HDCP 1.4 signal compliance
• Supports deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0

CONTROLS

• EDID setup button

INDICATOR LEDs

• OUTPUTS 1 to 4, ACTIVE input and power ON LEDs

POWER SOURCE

• 5V DC, 4A

POWER CONSUMPTION

• 5V DC, 1.1A

ENCLOSURE

• MegaTools size, aluminum type

COOLING

• Convection ventilation

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

• Power supply

Product Dimensions

• 19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H

Product Weight

• 0.5kg (1.0lbs) approx.

Shipping Dimensions

• 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H

Shipping Weight

• 1.0kg (2.2lbs) approx.
