Overview

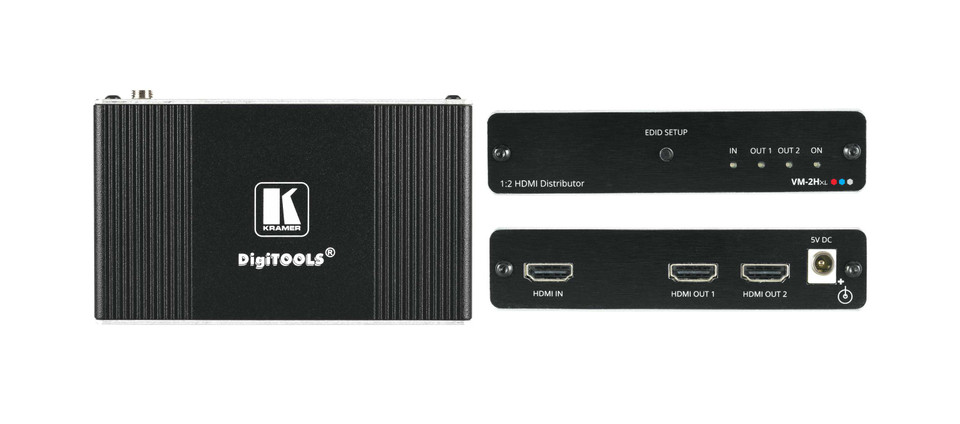

The VM−2Hxl is a distribution amplifier for HDMI signals. The unit reclocks and equalizes the signal and distributes it to two identical outputs.
- Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support — Deep Color, x.v.Color™, Lip Sync, CEC.
- 3D Pass–Through.
- EDID Pass–through — Pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
- Active Output LED.
- Compact DigiTOOLS® — 3 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.
Specifications
INPUT
- 1 HDMI connector
OUTPUTS
- 2 HDMI connectors
MAX. DATA RATE
- 6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
- Supports HDMI and HDCP
CONTROLS
- EDID SETUP button, input select button
INDICATOR LEDs
- IN 1, IN 2, OUT 1, OUT 2, and ON LEDs
POWER CONSUMPTION
- 5V DC, 910mA
INCLUDED ACCESSORIES
- Power supply, bracket installation kit
Product Dimensions
- 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
Product Weight
- 0.2kg (0.4lbs) approx.
Shipping Dimensions
- 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H
Shipping Weight
- 0.5kg (1.1lbs) approx.
