Overview

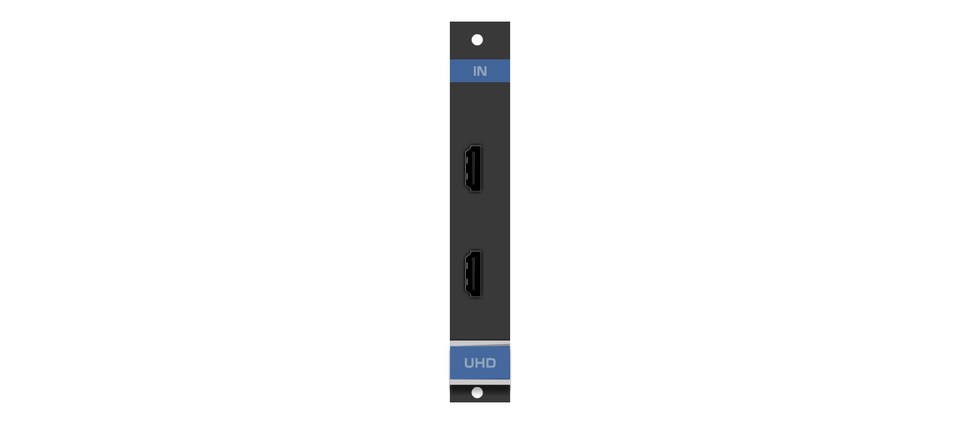

UHD−IN2−F16 is a two−channel 4K@60Hz (4:2:0) HDMI input card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. The UHD−IN2−F16 inputs two HDMI signals into the chassis.

• Max. Data Rate — 8.91Gbps (2.97Gbps per graphics channel).
• Max. Resolution — 4K@60Hz (4:2:0).
• HDMI Support — 3D, Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and 7.1 multi–channel audio.
• ARC Support.
• HDTV Compatible.
• HDCP Compliant.
• EDID Capture — Copies and stores the EDID from a display device.
• 3D Pass–Through.
• Kramer Equalization and re–Klocking Technology.

Applications

• Professional display systems requiring video signal routing
• Broadcast, presentation and production facilities, as well as monitoring in large duplication systems
• Rental/staging applications

Specifications

PORTS

• 2 HDMI

BANDWIDTH PER CHANNEL

• 2.97Gbps per graphics channel

TOTAL BANDWIDTH

• 8.91Gbps data rate

MAXIMUM RANGE

• 10m (32ft) — 4K60 (4:2:0) or 4K30 (4:4:4), 15m (49ft) — 1080p 12 bit (deep color)

3D PASS THROUGH

• Supported

HDMI SUPPORT

• 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, 7.1 multi–channel audio

POWER CONSUMPTION

• 3.7W

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

STANDARD COMPLIANCE

• HDCP 1.4, HDTV compatible

SAFETY REGULATORY COMPLIANCE

• CE

ENVIRONMENTAL REGULATORY COMPLIANCE

• Complies with appropriate requirements of RoHs and WEEE

Product Dimensions

• 19.00cm x 13.00cm x 2.00cm (7.48" x 5.12" x 0.79" ) W, D, H

Product Weight

• 0.1kg (0.3lbs) approx.

Shipping Dimensions

• 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H

Shipping Weight

• 0.3kg (0.6lbs) approx.
