Overview

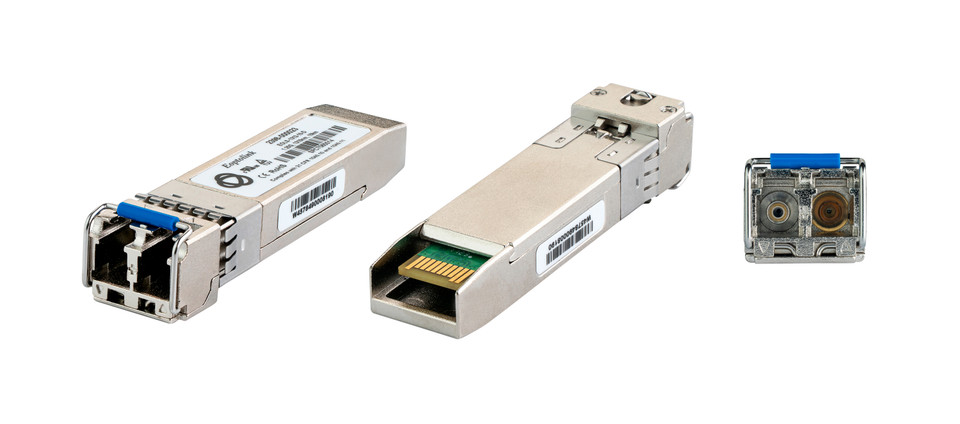

SFP1−SM−D is a fiber optic transceiver using 1310nm single−mode signals. These standard pluggable SFP optical modules have two LC connectors for reception and transmission over two strands of single−mode optical fiber.

• Certified Transceivers — Kramer certified, hot–pluggable SFP optical modules, for high–quality transmission of 1.25Gbps signal over single–mode optical fiber cables, connecting 2 single–mode fiber strands via LC AP/UPC connectors.

Specifications

OPTICAL LINE

• Single–mode G.652D.1 compliant OFNR fiber

PORTS

• 2–strand duplex fiber optic LC (PC/UPC) connector
• Note: Do not use with LC (APC) cable connectors

MAX. REACH

• 10km (6.2 miles) over OS1 SM fiber

NOMINAL PEAK WAVELENGTH

• 1310nm

MAX. DATA RATE

• 1.25Gbps

OPTICAL TYPICAL TRANSMISSION POWER

• –9dBm

OPTICAL TYPICAL MAXIMUM RECEIVER SENSITIVITY

• –21dBm

OPTICAL TYPICAL MAXIMUM LOSS BUDGET

• 18dB

STANDARDS COMPLIANCE

• IEEE 802.3z
• SFF–8472

LASER SAFETY COMPLIANCE

• Laser Class 1 FDA
• IEC60825–1

REGULATORY CERTIFICATIONS

• MSA SFP
• SFF–8472
• TUV
• UL
• FDA

OPERATING TEMPERATURE

• 0° to 70°C

STORAGE TEMPERATURE

• –40° to 85°C

HUMIDITY

• 5% to 95% RH

Product Dimensions

• 1.33cm x 5.70cm x 0.85cm (0.52" x 2.24" x 0.33" ) W, D, H

Shipping Dimensions

• 12.60cm x 8.40cm x 4.10cm (4.96" x 3.31" x 1.61" ) W, D, H

Shipping Weight

• 0.1kg (0.1lbs) approx.
