Overview

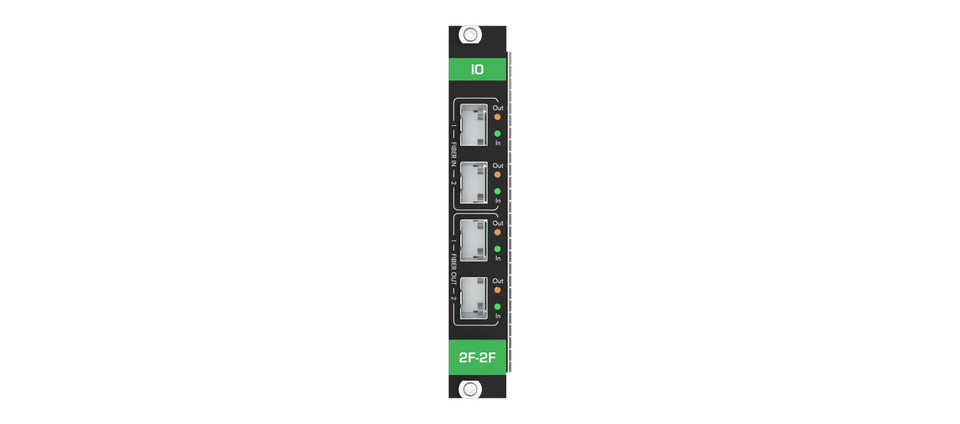

MC3−2F−2F is a high−performance two−port input and two−port output fiber card which is part of the compatible modular matrices multi−signal cards family. MC3−2F−2F can flexibly occupy any of the matrix card slots. Its input signals are independently switched by the modular matrix to any of the matrix output ports, and any matrix input signals are independently switched to its output ports.

• High Resolution Audio–Visual Experience — Modular matrix card supports high 4K60 4:4:4 HDMI signal distribution from and towards any input and output port of the modular matrix. Near–zero latency video chroma sub–sampling conversion technology is employed to auto–adapt above 10G HDMI signals to 10G optical link signal data–rate.
• Flexible Standard Fiber Extender — HDMI fiber extender for ultra–reach signals distribution over either multi–mode or single–mode optical fiber infrastructures, using Kramer SFP+ pluggable optical modules (multi–mode SFP+ included).
  Note: To ensure specified performance, support, and warranty of this product, use only Kramer's certified hi–performance SFP+ pluggable optical modules.
• Multi–drop Signal Distribution — Use optical splitters to extend the input signals from a single transmitter to multiple receivers, for displaying the same content on multiple display devices using optical splitting only, with no need for AV distribution amplifiers.
• HDMI Signal Extension — HDCP 2.2 compliant and supports up to 18G (6G per channel) data rate, LPCM 7.1, Dolby True HD, and DTS–HD as specified in HDMI 2.0.
• Bidirectional RS–232 Extension — Serial interface data flows end–to–end in both directions, to enable data transmission and control of devices.
• I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
• Cost–Effective Maintenance — Fiber link connection LED indications facilitate easy local troubleshooting.

Specifications

Inputs

• 2 Fiber Optic: On LC connectors

Outputs

• 2 Fiber Optic: On LC connectors

Extension Line

• Optical Fiber: Multi–mode (MM) or single–mode (SM)
• Optical Module: Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (MM is included)

Multi-mode Line

• Compliance: G.651.1 OFNR fiber
• Max Reach over OM3 MM Fiber: 3km (1.8 miles)
• Note: When using Kramer optical modules

Single-mode Line

• Compliance: G.652D OFNR fiber
• Max Reach over OS1 SM Fiber: 33km (20.5 miles)
• Note: When using Kramer optical modules

STANDARDS COMPLIANCE

• Laser Safety Compliance: Class 1
• SFP Regulatory Certifications : FDA CDRH 21 CFR 1040 and Laser Notice No. 50, UL and CUL EN60950–2:2007, RoHS6, EMC EN 55022 and EN 55024, IEC 62368–1 and IEC 60825–1 and — 2

Video

• Max Data Rate: 18Gbps (6G per channel)
• Max Resolution: 4K@60 (4:4:4)
• Max Switching Time Between Inputs: 6.5 seconds
• Max Switching Time Between Inputs: Note: Assuming typical display with up to 3sec delay time contribution
• Output Transition on Switching: Black/Blue screen
• HDMI Compliance: 4K as specified in HDMI 2.0b
• Content Protection: HDCP 2.2

Extended RS-232

• Baud Rate: 9600 to 115200

Environmental Conditions

• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing

Regulatory Compliance (Standards Compliance)

• Safety: CE, UL
• Environmental: RoHs, WEEE

Product Dimensions

• 25.50cm x 13.00cm x 2.00cm (10.04" x 5.12" x 0.79" ) W, D, H

Product Weight

• 0.3kg (0.6lbs) approx.

Shipping Dimensions

• 29.20cm x 16.60cm x 5.30cm (11.50" x 6.54" x 2.09" ) W, D, H

Shipping Weight

• 0.4kg (0.9lbs) approx.
