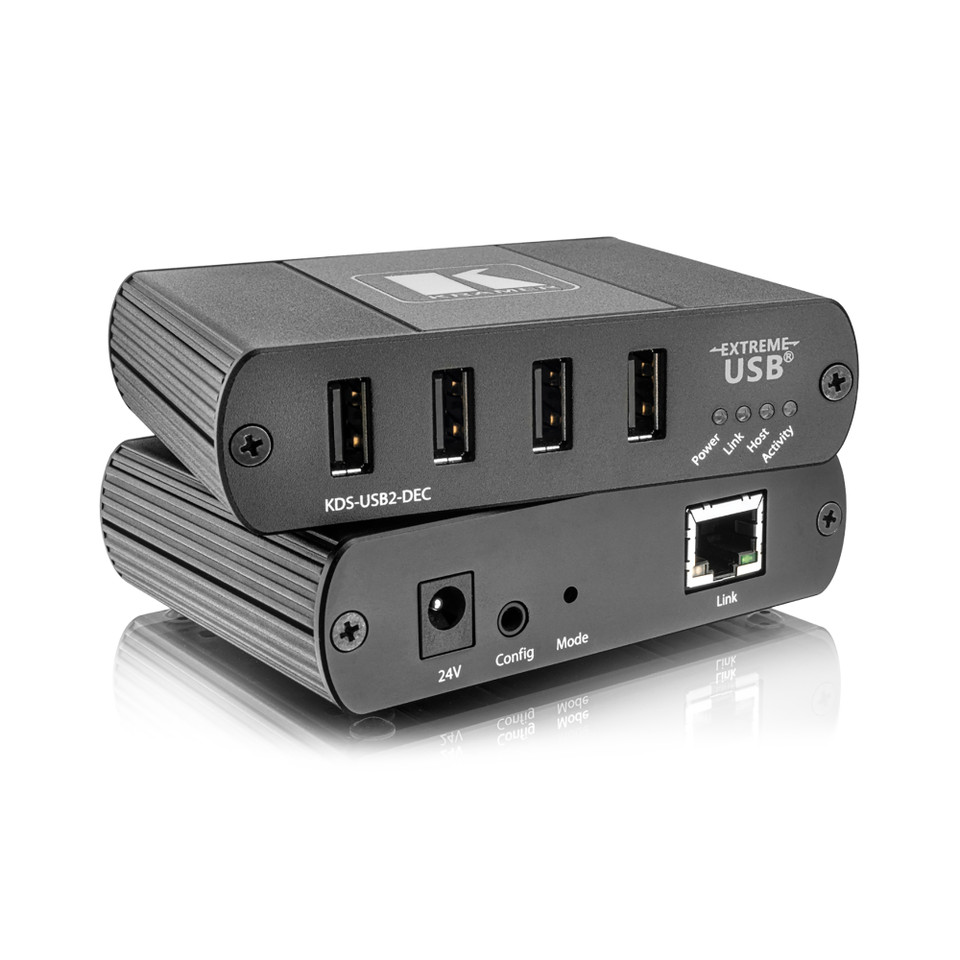

Kramer KDS-USB2-DEC

Kramer KDS-USB2-DEC

Kramer KDS-USB2-DEC

Kramer KDS-USB2-DEC

AVoIP USB 2 extender based on Icron Ranger RG2304S

SKU: KRMR-59-002490
MSRP: $550.00
MAP: $440.00

Overview

KDS−USB2−EN is a USB 2.0 high−speed encoder for extending USB signals between a host computer and any USB peripheral device such as a mouse, keyboard, display, camera, mobile device, media player, or hard drive. KDS−USB2−EN connects to a host computer enabling communication with the USB devices that are connected to a KDS−USB2−DEC decoder (sold separately).
KDS−USB2−EN can be paired with one KDS−USB2−DEC decoder for basic one−to−one USB extension, but with the purchase of additional units, you can diversify your USB extension system. For example, connect USB cameras in multiple locations to one computer or enable users in multiple locations to collaborate using the same host computer over a Local Area Network (LAN), in real time, using their own keyboards, mice and touch screens. Using Kramer’s cloud−based control platform, you can map and/or control these multi−unit setups.

Features

  • High–Speed Extension — Extends USB 2.0 signals up to 100 m with CAT 5e/6/7 cables, and up to 10km with fiber optics cable. Achieves USB 2.0 throughput up to 480 Mbps point–to–point or over LAN.
    Note: Use recommended Kramer cables for best performance.
  • Extend Multiple Devices — Connect to all 4 decoder (sold separately) ports simultaneously with 5 Volts, 500 mA available on each port.
  • Collaboration — Pair up to seven decoders (sold separately) to one encoder/host computer for extended, multi–location collaboration.
  • SwitchableUSB™ — Construct one–to–many and many–to–many unit setups using Kramer’s cloud–based control platform to manage the mapping and switch the connections.
  • Reliable and Certified — Passes all key USB–IF compliance tests and FCC/CE Class B certified.
  • True Plug and Play — No software drivers required.
  • Compatibility — Works with all major operating systems including Windows®, macOS™ and Linux®.

Applications

  • Meeting rooms
  • Training facilities
  • Collaborative classrooms
  • Lecture halls
  • Control Rooms
  • Any space where USB 2.0 peripheral devices are required

Specifications

Ports

  • 1 USB: On a USB type B connector for host computer
  • 1 CAT 5/6: On an RJ–45 connector

Extension Line

  • Direct Connect: Up to 100m (330 ft) over solid core Cat 5e/6/7 cable
  • Network Connect: Up to 100m (330 ft) between switches over solid core CAT 5e/6/7 cable (One local to seven remote pairings supported for Simultaneous Users Interaction)
  • Note: For best performance use recommended Kramer cables

General

  • Maximum Throughputs: USB 2.0 — Up to 480 Mbps*
  • Maximum Throughputs: USB 1.1 — Up to 12 Mbps
  • Traffic Types: All USB 2.0 and 1.1 Traffic Types (Control, Interrupt, Isochronous and Bulk)
  • Device Types: All USB 2.0 and 1.1 Device Types and Classes
  • Maximum Number of Connected USB Devices: 30
  • Networking Standards: 1000BASE–T
  • Networking Data Traffic: Layer 2
  • Networking Control Traffic: Layer 3

User Interface

  • Controls: Front panel pairing button
  • Indicators: Power, link, host, activity LEDs

Power

  • Source: Host computer
  • Consumption: 780mA

Enclosure

  • Type: Black anodized aluminum
  • Cooling: Convection ventilation

Accessories

  • Included: 1 USB2 type A male to type B male cable

Product Dimensions

  • 9.50cm x 8.00cm x 2.54cm (3.74" x 3.15" x 1.00" ) W, D, H

Product Weight

  • 0.2kg (0.4lbs) approx.

Shipping Dimensions

  • 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H

Shipping Weight

  • 0.4kg (0.8lbs) approx.
