Overview

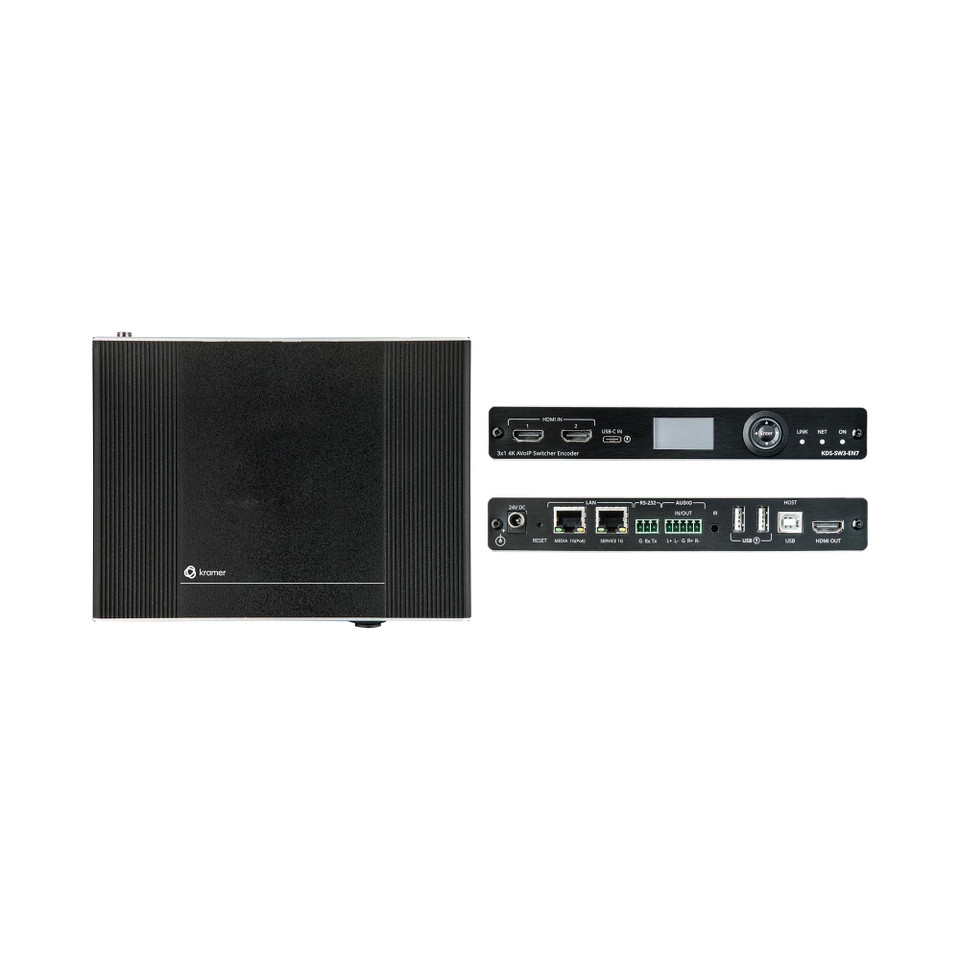

KDS−SW3−EN7 is an auto switcher and advanced encoder for streaming a selected video signal at 4K via Ethernet over copper cable in unicast (one−to−one) or multicast (one−to−many) configurations. It can add digital audio Dante, USB, IR, RS−232, or CEC signals.

• KDS–SW3–EN7 provides exceptional quality, advanced user–friendly operation, and flexible control.
• Instantaneous Switching Time — 1 second switching time between selectable video inputs.
• Video Streaming Transmitter — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface. While KDS–DEC7 decodes the stream to 4K@30Hz (4:4:4) resolution.
• Streaming delay 33msec — for video 4K@30Hz 4:4:4 signal.
• Streaming Support — Provides unicast and multicast streaming.
• Flexible Analog Audio Embedding and De–embedding — Select balanced analog audio as input to embed into the streaming and HDMI™ output signal, or as output to extract the HDMI audio signal and output it as balanced analog audio.
• Flexible Digital Audio Embedding and De–embedding Dante — Select digital audio as input to embed into the streaming and HDMI™ output signal, or as output to extract the HDMI audio signal and output it as balanced analog audio.
• Easy To Use KM/KVM Support — Searchable, OSD menu for KM and fully configurable KVM roaming.
• Power consumption without USB–C Power Delivery is 13W — power consumption with USB–C Power Delivery is 77W (requiring the optional power supply).
• Convenient and Comprehensive Control — Control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet, or front panel LCD and navigation buttons.
• PoE Support — Powered with PoE connection from PoE LAN switch.
• Control Gateway — Through P3K or special TCP connection, users can control/communicate with IR, RS–232, or CEC to the connected devices.
• Separate Service LAN Port — can be used for physical separation between AV and command streams to separate LAN for security and reliability purposes.
• Selectable Inputs — 2 HDMI and 1 USB–C input.
• Analog/Digital audio inputs and outputs.
• Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, and KDS–USB2.

Applications

• For real–time essential installations such as command and control rooms
• For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
• AV distribution systems with one or more sources and many displays in schools, universities, and public venues
• For AV installations where low latency KM/KVM capabilities are required

Specifications

Inputs

• 2 HDMI: On female HDMI connectors
• 1 USB: On a USB–C connector

Outputs

• 1 HDMI: On a female HDMI connector

Ports

• 2 Ethernet: On R–J45 female connectors
• 1 Balanced Audio: On a 5–pin terminal block connector
• 1 RS-232: On a 3–pin terminal block connector
• 1 IR: On a 3.5mm TRS connector
• 1 USB-B Host: On a USB–B connector
• 2 USB-A Devices: On USB–A connectors

Network

• Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non–blocking, Layer 2
• Unicast: Through RTSP (Real Time Streaming Protocol)
• Bit Rate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps

Video Streaming

• Compression Standard: JPEG2K based, proprietary stream
• Max Input Resolution: 4K@60hz (4:2:0)
• Max Output Resolution: 4K@30hz (4:4:4)
• Max End-to-End Resolution: 4K@30hz (4:4:4)
• Scaler: Yes
• End-to-End Latency: 33msec
• Switching Time: 1sec

Resolution

• 4096x2160@60Hz, 1600x1200@60Hz, 1280x960@60Hz, 848x480@60Hz,
• 3840x2160@60Hz, 1600x900@60Hz,   1280x800@60Hz, 800x600@60Hz,
• 1920x1200@50Hz, 1440x900@60Hz,   1280x768@60Hz, 720x576@60Hz,
• 1920x1080@60Hz, 1400x1050@60Hz, 1280x720@60Hz, 720x480@50Hz,
• 1856x1392@60Hz, 1366x768@60Hz,   1224x768@70Hz, 640x480@60Hz,
• 1792x1344@60Hz, 1360x768@60Hz,   1152x864@70Hz, 640x400@85Hz,
• 1680x1050@60Hz,1024x768@60Hz, 640x350@85Hz

Audio

• Supported Formats: LPCM, Dolby and DTS
• LPCM: LPCM upto 7.1/24–bit/192kHz
• Dolby: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0
• DTS: DTS–HD Master Audio, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1
• Dante Digital Audio: 2 IN or 2 OUT audio mono channels

Security

• HTTPS, 802.1x, OWASP–10, AES–128 encryption of AV streaming with changeable key

User Interface

• Indicators: LINK, NET and ON LEDs, front panel LCD Display
• Rear Panel: Restart and factory reset button
• Controls: Embedded web pages, P3K API commands via Ethernet, front panel navigation buttons

Power

• PoE (Power over Ethernet): 37V to 57V, maximum power consumption 19W (when USB at full load)
• Optional power supply: 24V DC, 5A

Environmental Conditions

• Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing
• Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing
• Humidity: 10% to 90%, non–condensing

Regulatory Compliance (Standards Compliance)

• Safety: CE, FCC
• Environmental: RoHs, WEEE

Enclosure

• Size: Mega Tool Deep
• Type: Aluminium
• Cooling: Convection Ventilation

Product Dimensions

• 18.90cm x 14.50cm x 2.76cm (7.44" x 5.71" x 1.09" ) W, D, H

Product Weight

• 0.7kg (1.5lbs) approx.

Shipping Dimensions

• 31.20cm x 17.90cm x 7.60cm (12.28" x 7.05" x 2.99" ) W, D, H

Shipping Weight

• 0.9kg (2.1lbs) approx.
