Overview

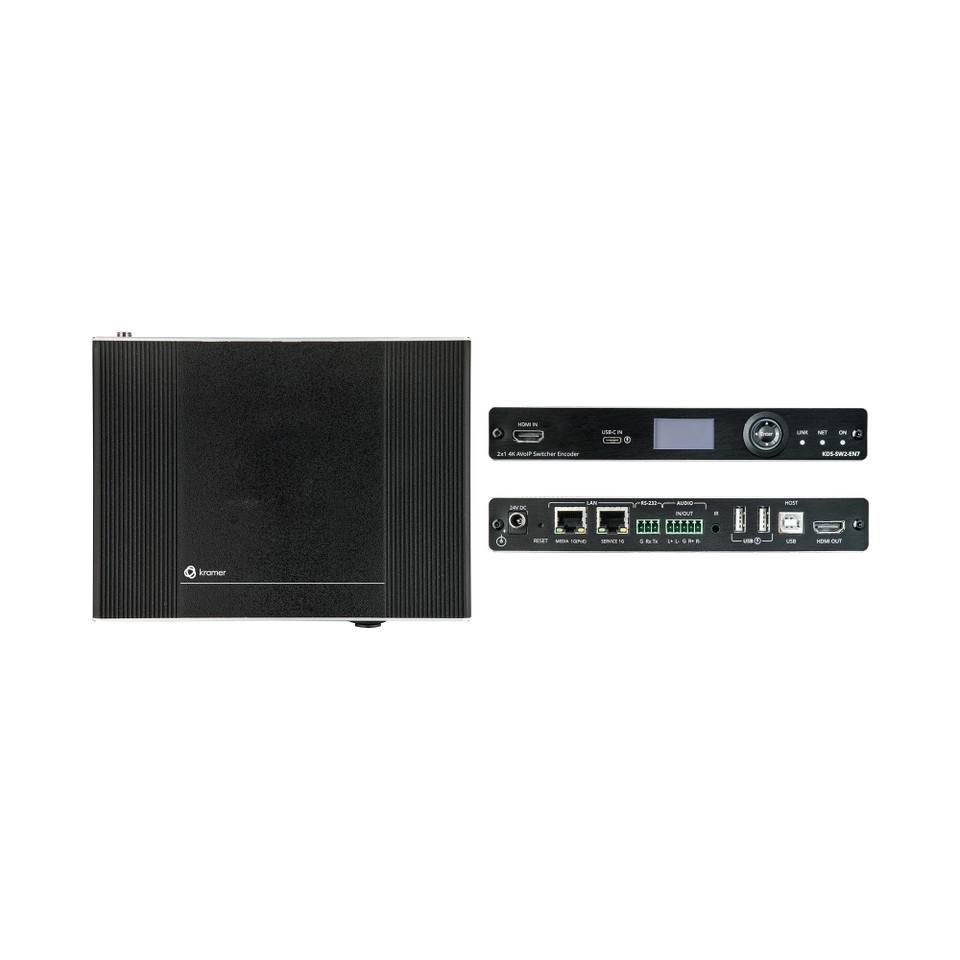

KDS−SW2−EN7 auto−switch encoder with HDMI and USB−C inputs.

Features

• Outstanding end–user experience —
• 1 HDMI and 1 USB–C with charging capabilities for laptop
• Easy–to–use KM/KVM — Searchable OSD Menu for KM and fully configurable KVM roaming
• Large scale video wall — up to 16x16
• Instantaneous switching time — 1 second
• Ideal for large–scale deployments —
• Highly scalable — 999 channels build in support
• State of the art management device
• Rich set of management capabilities — Standard P3K Open API , LCD screen for configuration
• Robust security —
• Cost–effective from day one
• Full product range for any site, any application
• Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, KDS–USB2, etc.
• Simple planning and rollout —
• Cost–effective from day one
• Full product range for any site, any application
• Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, KDS–USB2, etc.

Applications

• For real–time essential installations such as command and control rooms
• For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
• AV distribution systems with one or more sources and many displays in schools, universities, and public venues
• For AV installations where low latency KM/KVM capabilities are required

Specifiations

Inputs

• 1 HDMI: On female HDMI connectors
• 1 USB-C: On a female USB–C connector

Outputs

• 1 HDMI: On a female HDMI connector

Ports

• 2 Ethernet: On R–J45 connectors
• 1 Balanced Audio: On a 5–pin terminal block connector
• 1 RS-232: On a 3–pin terminal block connector
• 1 IR: On a 3.5mm TRS connector
• 1 USB Host: On a USB–B connector
• 2 USB Device: On USB–A connectors

USB Features

• Integrated USB Hubs: 2–layer USB hubs when connecting to KDS–DEC7

Network

• Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non–blocking, Layer 2
• Unicast: Through RTSP (Real Time Streaming Protocol)
• Bit Rate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps

Video

• Compression Standard: JPEG based, private stream
• Max Resolution: 4K@30Hz 4:4:4
• HDR 10: Up to 4K30 4:2:2 12 bit

Video Streaming

• Compression Standard: JPEG2K based, proprietary stream
• Max Input Resolution: 4K@60hz (4:2:0)
• Max Output Resolution: 4K@30hz (4:4:4)
• Max End-to-End Resolution: 4K@30hz (4:4:4)
• Scaler: Yes
• End-to-End Latency: 33msec
• Switching Time: 1sec

Resolution

• 4096x2160@60Hz, 1600x1200@60Hz, 1280x960@60Hz, 848x480@60Hz,
• 3840x2160@60Hz, 1600x900@60Hz, 1280x800@60Hz, 800x600@60Hz,
• 1920x1200@50Hz, 1440x900@60Hz, 1280x768@60Hz, 720x576@60Hz,
• 1920x1080@60Hz, 1400x1050@60Hz, 1280x720@60Hz, 720x480@50Hz,
• 1856x1392@60Hz, 1366x768@60Hz, 1224x768@70Hz, 640x480@60Hz,
• 1792x1344@60Hz, 1360x768@60Hz, 1152x864@70Hz, 640x400@85Hz,
• 1680x1050@60Hz, 1024x768@60Hz, 640x350@85Hz

Audio

• Supported Formats: LPCM, Dolby and DTS
• LPCM: LPCM upto 7.1/24–bit/192kHz
• Dolby: Dolby AtmosTM, Dolby TrueHD, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0
• DTS: DTS–HD Master AudioTM, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1

Security

• HTTPS, 802.1x, OWASP–10, AES–128 encryption of AV streaming with changeable key

User Interface

• Indicators: LINK, NET and ON LEDs, front panel LCD Display
• Controls: Restart and factory reset rear panel button, embedded web pages, P3K API commands via Ethernet, front panel navigation buttons

Power

• PoE (Power over Ethernet): 37V to 57V, maximum power consumption 19W (when USB at full load)
• Optional power supply: 24V DC, 5A, max power 68W with USB–C charging

Environmental Conditions

• Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing
• Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing
• Humidity: 10% to 90%, non–condensing

Product Dimensions

• 18.90cm x 14.50cm x 2.76cm (7.44" x 5.71" x 1.09" ) W, D, H

Product Weight

• 0.7kg (1.5lbs) approx.

Shipping Dimensions

• 31.20cm x 17.90cm x 7.60cm (12.28" x 7.05" x 2.99" ) W, D, H

Shipping Weight

• 0.9kg (2.1lbs) approx.
