Overview

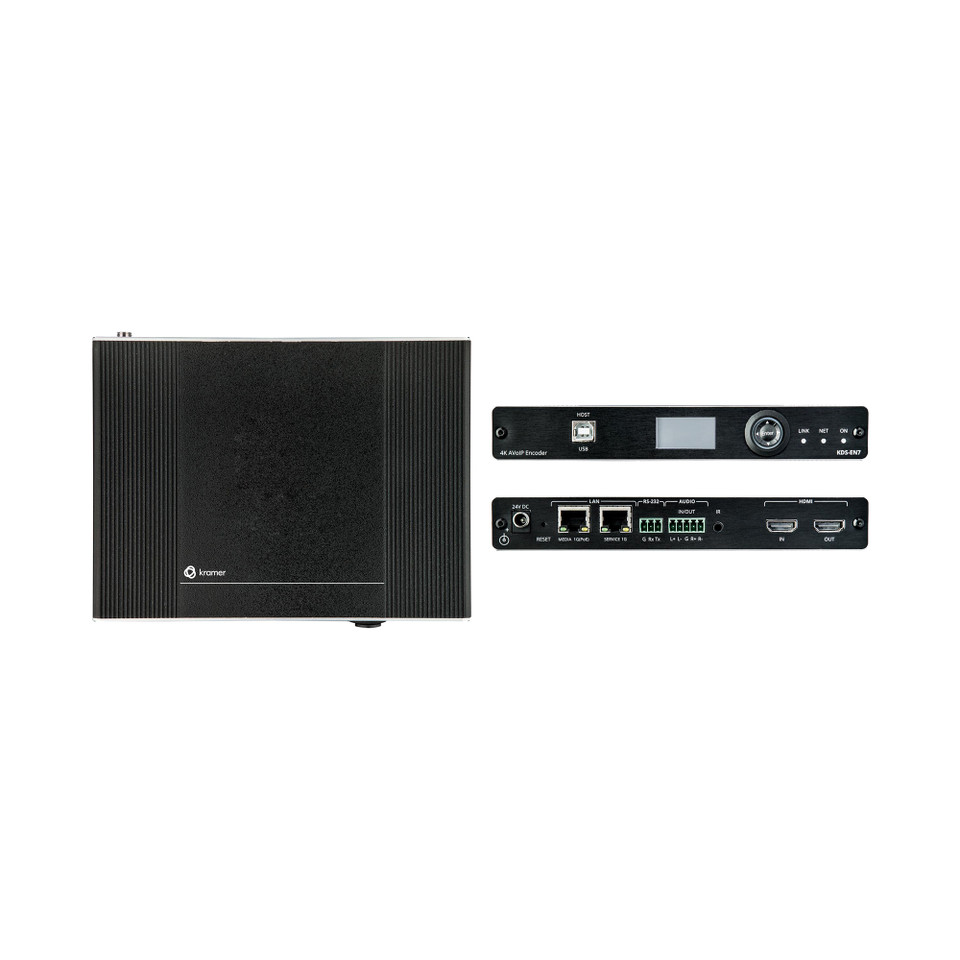

KDS−EN7 encoder is an advanced transmitter for streaming 4K video signals via Ethernet over copper cable. It encodes and streams over an IP network from HDMI input, and transmits the USB, IR, RS232, or CEC signal over IP network.

Features

• Outstanding end–user experience —
• Rich set of inputs and interfaces
• Easy–to–use KM/KVM — Searchable OSD Menu for KM and fully configurable KVM roaming
• Large scale video wall — up to 16x16
• Instantaneous switching time — 1 second
• Ideal for large–scale deployments —
• Highly scalable — 999 channels build in support
• State of the art management device
• Rich set of management capabilities — Standard P3K Open API , LCD screen for configuration
• Robust security —
• Enterprise IT–grade security — 802.1x and HTTPS/TLS
• Security certification — OWASP Top 10 certificate
• Separate ETH ports for optimal security and experience
• New HW architecture that enables robust FW update
• Simple planning and rollout: —
• Cost–effective from day one
• Full product range for any site, any application
• Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, etc.
• PoE Support —
• Using PoE switch — up to 13W consumption
• Alternative sources/destinations —
• HDMI Loop–Through on Encoder and HDMI Input on Decoder
• Analog Audio —
• Embedding and De–embedding
• Control gateway — Through P3K control/communicate with IR, RS232, or CEC to the connected devices


• Through P3K control/communicate with IR, RS232, or CEC to the connected devices

Applications

• For real–time essential installations such as command and control rooms
• For large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications
• AV distribution systems with one or more sources and many displays in schools, universities, and public venues
• For AV installations where low latency KM/KVM capabilities are required

Specifications

Inputs

• 1 HDMI: On a female HDMI connector

Outputs

• 1 HDMI: On a female HDMI connector

Ports

• 2 Ethernets: On RJ–45 connectors
• 1 Balanced Audio: On a 5–pin terminal block connector
• 1 RS-232: On a 3–pin terminal block connector
• 1 IR: On a 3.5mm TRS connector
• 1 USB Host: On a USB–B connector

USB Features

• Integrated USB Hubs: 1–layer USB Hub when connecting to KDS–DEC7

Network

• Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non–blocking, Layer 2
• Unicast: Through RTSP (Real Time Streaming Protocol)
• Bitrate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps

Video

• Compression Standard: JPEG based, private stream
• Max Resolution: 4K@30Hz 4:4:4

Video Streaming

• Compression Standard: JPEG2K based, proprietary stream
• Max Input Resolution: 4K@60hz (4:2:0)
• Max Output Resolution: 4K@30hz (4:4:4)
• Max End-to-End Resolution: 4K@30hz (4:4:4)
• Scaler: Yes
• End-to-End Latency: 33msec
• Switching Time: 1sec

Resolution

• 4096x2160@60Hz,1600x1200@60Hz,1280x960@60Hz,848x480@60Hz,
• 3840x2160@60Hz,1600x900@60Hz,1280x800@60Hz,800x600@60Hz,
• 1920x1200@50Hz,1440x900@60Hz,1280x768@60Hz,720x576@60Hz,
• 1920x1080@60Hz,1400x1050@60Hz,1280x720@60Hz,720x480@50Hz,
• 1856x1392@60Hz,1366x768@60Hz,1224x768@70Hz,640x480@60Hz,
• 1792x1344@60Hz,1360x768@60Hz,1152x864@70Hz,640x400@85Hz,
• 1680x1050@60Hz,1024x768@60Hz,640x350@85Hz

Audio

• Supported Formats: LPCM, Dolby, DTS
• LPCM: LPCM upto 7.1/24–bit/192kHz
• Dolby: Dolby AtmosTM, Dolby TrueHD, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0
• DTS: DTS–HD Master AudioTM, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1

Security

• HTTPS, 802.1x, OWASP–10, AES–128 encryption of AV streaming with changeable key

User Interface

• Indicators: LINK, NET and ON LEDs, front panel LCD Display
• Controls: Restart and factory reset rear panel button, embedded web pages, P3K API commands via Ethernet, front panel navigation buttons

Power

• PoE (Power over Ethernet): Operating voltage range 37V~57V, max power 13W
• Optional power supply: 24V DC, 5A

Environmental Conditions

• Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing
• Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing
• Humidity: 10% to 90%, non–condensing

Product Dimensions

• 18.90cm x 14.50cm x 2.76cm (7.44" x 5.71" x 1.09" ) W, D, H

Product Weight

• 0.7kg (1.5lbs) approx.

Shipping Dimensions

• 31.20cm x 17.90cm x 7.60cm (12.28" x 7.05" x 2.99" ) W, D, H

Shipping Weight

• 0.9kg (2.1lbs) approx
