Overview

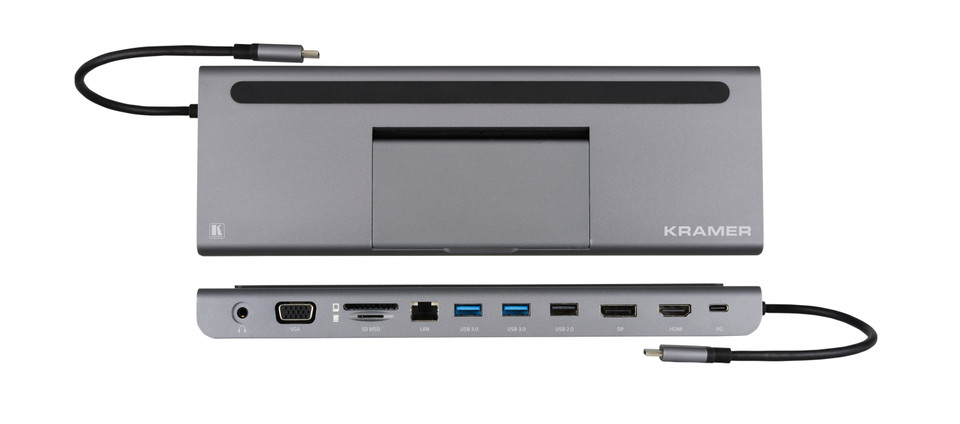

KDock−4 is a USB−C hub multiport adapter specially designed to support mobile devices and is an ideal accessory for MacBook, laptops equipped with USB Type−C, smartphones, and tablets. KDock−4 enables you to connect your USB−C device to HDMI™, DisplayPort, and VGA video outputs, 2 USB 3.0 ports, 1 USB 2.0 ports, an Ethernet port, SD and micoSD card port and USB−C charging pass−through.
Note: Video output for smartphones is supported only for smartphones that support DisplayPort Alt mode through USB−C.

Specifications

Inputs

• 1 USB: On a USB Type–C male connector

Outputs

• 1 HDMI: On a female HDMI connector
• 1 DisplayPort: On a female DisplayPort connector
• 1 VGA: On a female 15–pin HD connector

Ports

• 2 USB 3.0: On female USB type–A connectors
• 1 USB 2.0: On female USB type–A connectors
• 1 Ethernet: On an RJ–45 connector
• SD: On an SD card port
• 1 Unbalanced Stereo: On a 3.5mm mini jack
• SD: On a microSD port
• 1 USB: On a female USB type–C connector for charging

Video

• Max Resolution (HDMI/DP): 3840x2160P@30Hz (with one display connected)
• Max Resolution (HDMI/DP): 1920x1080P@60Hz (with two displays connected)
• Max Resolution (HDMI/DP): 1920x1080P@60Hz (with three displays connected)
• Max Resolution (VGA): 1920x1080P@60Hz (with one or two displays connected)
• Max Resolution (VGA): 1280x720P@60Hz (with three displays connected)
• Max Data Rate (HDMI/DP output): 10.2Gbps (3.4Gbps per graphic channel)
• Multiple Video Output Support: Via MST (Multi–Stream Transport) technology
• Content Protection (HDMI output): HDCP 1.4

Extended Ethernet

• Max Data Rate: 1000M (Gigabit)/100M/10M
• Includes: Wake–on–LAN (WoL), single Mac address, PXE boot

General

• USB 3.0 Data Transmission Speed: Up to 5.0Gbps

Power

• Delivery: 100W
• USB Charging: BC1.2 (5V 1.5A)
• USB Limited Current when Connected to Power via female USB-C port: 1.9A
• USB Limited Current when Not Connected to Power via female USB-C port: 1A

Environmental Conditions

• Operating Temperature: 0° to +70°C (32° to 158°F)
• Storage Temperature: –10° to +55°C (14° to 131°F)
• Humidity: 5% to 90%, RHL non–condensing

Enclosure

• Type: Aluminum with built–in 20cm/7.87" flexible USB–C cable

Regulatory Compliance (Standards Compliance)

• Safety: CE
• Environmental: RoHs, FCC

Product Dimensions

• 26.00cm x 9.00cm x 2.50cm (10.24" x 3.54" x 0.98" ) W, D, H

Product Weight

• 0.4kg (0.8lbs) approx.

Shipping Dimensions

• 31.80cm x 13.00cm x 3.10cm (12.52" x 5.12" x 1.22" ) W, D, H

Shipping Weight

• 0.5kg (1.0lbs) approx.
