Overview

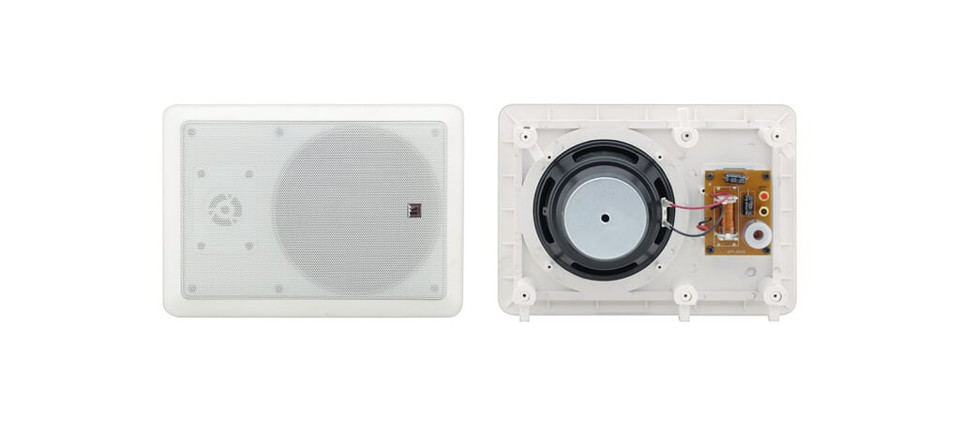

The Galil 6−I is a pair of two−way, open−back speakers designed for mounting in the wall. They have an infinite baffle design and aluminum grills.

• Type — 2–way open–back in–wall speaker with infinite baffle design.
• Woofer — 6.5” (165mm) polypropylene with rubber surround.
• Tweeter — 1” (25.4mm) silk.
• Frequency Response — 50Hz to 20kHz @–15dB, 60Hz to 20kHz @±3dB.
• Impedance — 8Ω.
• Sensitivity — 87dB SPL, 1W@1m.
• Recommended Power — RMS 80W, 220W continuous program.
• Grill — White baffle with aluminum grills with UV treatment compliance. Locking arms for quick in–wall installation.
• Package Includes — 2 speakers (1 pair), template and user manual.

Specifications

SPEAKER TYPE

• 2–way in–wall speakers

FREQUENCY RESPONSE

• 50Hz to 20kHz @–15dB, 60Hz to 20kHz @±3dB

WOOFER

• 6.5” (165mm) polypropylene with rubber surround

TWEETER

• 1” (25.4mm) silk

IMPEDANCE

• 8Ω

SENSITIVITY

• 87dB SPL, 1W@1m

MAX. SPL

• Continuous: 109dB, peak: 112dB

POWER HANDLING

• 80W RMS, 220W continuous program

CROSSOVER FREQUENCY

• 1.8kHz

COVERAGE ANGLE

• 107Deg. (if mounted on the ceiling)

DIRECTIVITY FACTOR (Q)

• 3.4, averaged 1kHz to 10kHz

DIRECTIVITY INDEX (DI)

• 5.3dB averaged 1kHz to 10kHz

INPUT CONNECTOR

• Terminal block

MATERIALS

• ABS Frame, aluminum grill, safety cord attached to the grill

OPERATING TEMPERATURE

• 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

• –40° to +70°C (–40° to 158°F)

HUMIDITY

• 10% to 90%, RHL non–condensing

WEIGHT PER SINGLE SPEAKER

• 1.6kg (3.5lbs) approx

SHIPPING WEIGHT (FOR PAIR)

• 3.8kg (8.4lbs) approx

INSTALLATION CLEARANCE

• Mounting depth: 7cm (2.76")
• Cutout dimensions: 18.5cm x 27.3cm (7.28" x 10.75"), W, H

INCLUDED ACCESSORIES

• Cutout template

COLORS

• Available in white

OPTIONS

• Kramer SKIC mounting kit
