Overview

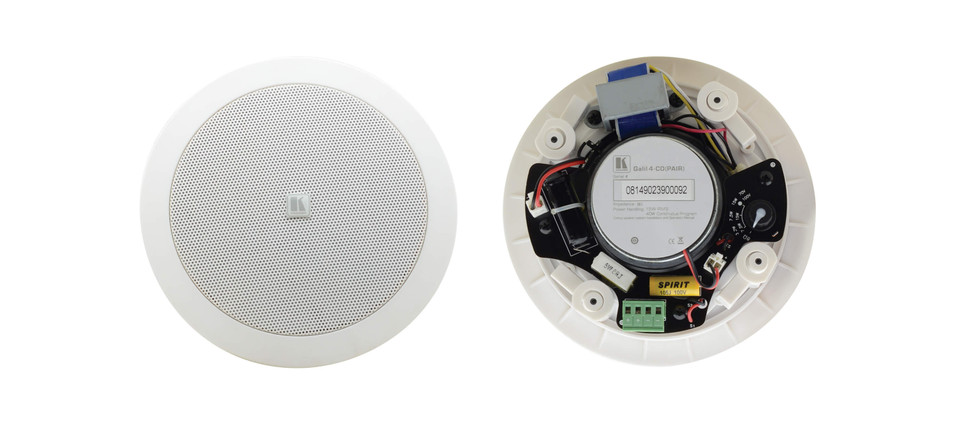

The Galil 4−CO is a pair of two−way, open−back, 8Ω speakers designed for mounting in the ceiling. The speakers feature a multi−tap power transformer for selecting 8Ω or 70V/100V power settings suitable for array installation.
- Type — 2–way coaxial speaker.
- Woofer — 4" polypropylene cone.
- Tweeter — 0.5” Mylar dome.
- Frequency Response — 80Hz to 20kHz@ ±3dB.
- Impedance — 8Ω.
- Power Handling — 15W RMS, 40W continuous program.
- Transformer Taps — 70V: 15W/7.5W/3.7W/Off (Lo–Z); 100V: 15W/7.5W/Off (Lo–Z).
- Package Includes — 2 speakers (1 pair), cutout template and user manual.
- Mounting Bracket (Optional) — SKIC–4.
Specifications
DESCRIPTION
FREQUENCY RESPONSE
WOOFER
TWEETER
IMPEDANCE
TRANSFORMER TAPS
SENSITIVITY
MAX SPL
POWER HANDLING
CROSSOVER FREQUENCY
COVERAGE ANGLE
DIRECTIVITY FACTOR (Q)
DIRECTIVITY INDEX (DI)
INPUT CONNECTOR
MATERIALS
OPERATING TEMPERATURE
STORAGE TEMPERATURE
HUMIDITY
WEIGHT PER SINGLE SPEAKER
SHIPPING WEIGHT (FOR PAIR)
INSTALLATION CLEARANCE
CUTOUT DIAMETER
OPTIONAL ACCESSORIES
COLORS
