Overview

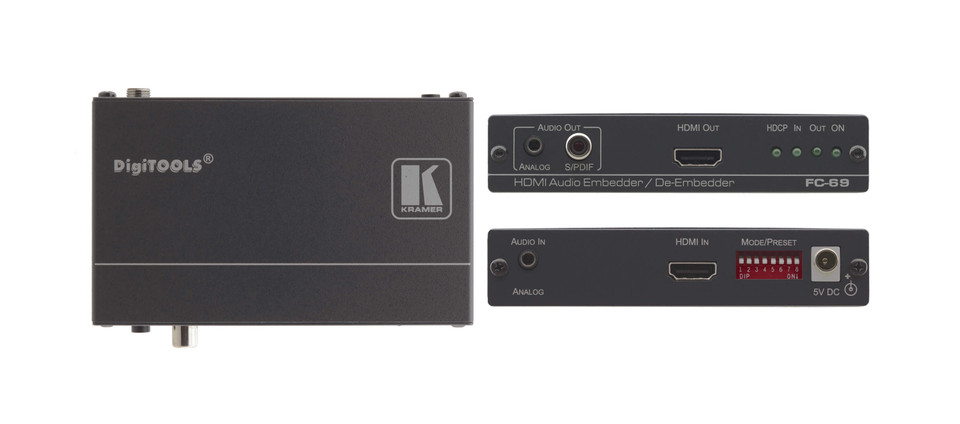

FC−69 is a high−performance 4K@60Hz (4:2:0), 4Kx2K HDMI audio embedder and de−embedder. The unit can embed analog audio to the HDMI output or de−embed audio from the HDMI input or from the HDMI output Audio Return Channel to S/PDIF and unbalanced stereo audio outputs simultaneously.
- Max. Resolution — 4K@60Hz (4:2:0), 4Kx2K.
- Max. Data Rate — 8.91Gbps (2.97Gbps per data channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support — ARC, 7.1 PCM, deep color.
- Audio Embedding — Even without an HDMI source.
- Audio de–Embedding — To unbalanced analog and S/PDIF, selectable from input or ARC.
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
- Sleep Mode — 5V on the output, following the input, allows the display to turn off when no video is being sent.
- Preconfigured Control Options — DIP–switches control locking/modifying EDID, HDCP, embedding/de–embedding and sleep mode functionality.
Specifications
INPUT
OUTPUTS
MAX DATA RATE
AUDIO THD+N
COMPLIANCE WITH HDMI STANDARD
CONTROLS
INDICATOR LEDS
POWER SOURCE
OPERATING TEMPERATURE
STORAGE TEMPERATURE
HUMIDITY
COOLING
ENCLOSURE TYPE
RACK MOUNT
FURNITURE MOUNT
VIBRATION
REGULATORY COMPLIANCE
ENVIRONMENTAL REGULATORY COMPLIANCE
INCLUDED ACCESSORIES
WARRANTY
Product Dimensions
Product Weight
Shipping Dimensions
Shipping Weight
