Overview

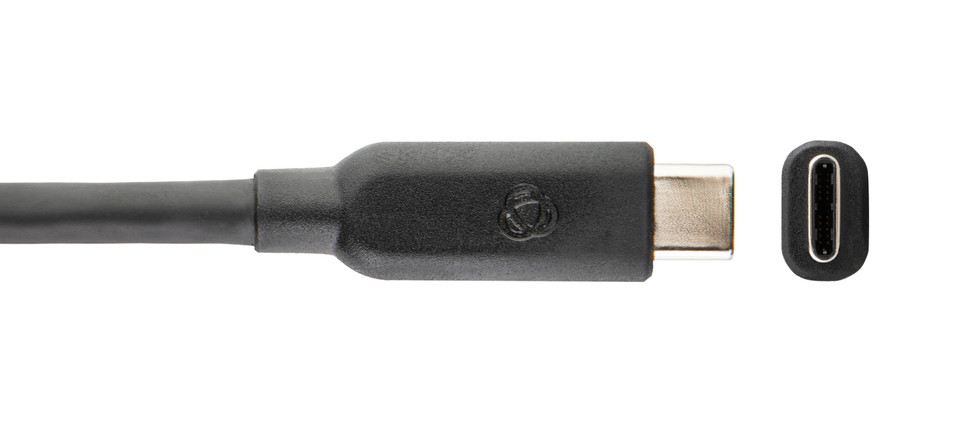

CT−U32/FF is a USB−C(M) to USB−C(M), USB 3.2 Gen−2 SuperSpeed+ (10G) data, transfer Video 4K@60 (4:4:4) and charge other devices (60W). The symmetrical, low profile USB Type−C connector, can be plugged in any direction, thus eliminating the frustration of getting the port insertion just right.

This cable is made in a TAA compliant country.

Features

• Quality Construction — High–quality Tripple shielded twisted pair (STP) construction helps prevent electromagnetic interference and ensures reliable data communication.
• Reversible USB Type–C Connector
• 4K@60 (4:4:4)
• Transfer Data Rates — Up to 10Gbps
• 60W power (20V, 3A)
• PC, Mac & Mobile Compatible
• Plug and Play — For monitors, Web cameras, printers, scanners, keyboards and other digital devices
• USB Backward Compatibility — 1.0, 1.1, 2.0 and 3.0

Specifications

OVERALL

• Type: USB 3.2 GEN–2
• Video: 4K@60 4:4:4
• Max. Data Rate: 10 Gbps
• ETH Support: 10/100/1000 Mbps

PHYSICAL

• Connector A: USB Type–C Male Nickel plated with gold pins
• Connector B: USB Type–C Male Nickel plated with gold pins

SCREENING

• Type: Triple shielding

JACKET

• Material: LDPE
• Color: Black
• Diameter: 5.2mm ±0.2mm
• Bending Radius: 50mm

ELECTRICAL

• Temperature Rating: 80°C
• Voltage Rating: 30V
• Conductor Resistance – 32AWG: 563Ω/km MAX. at 20°C (68°F)
• Conductor Resistance – 30AWG: 354Ω/km MAX. at 20°C (68°F)
• Conductor Resistance – 24AWG: 74.5Ω/km MAX. at 20°C (68°F)

STANDARDS COMPLIANCE

• Safety: CE, UL
• Flammability Rating: VW–1
