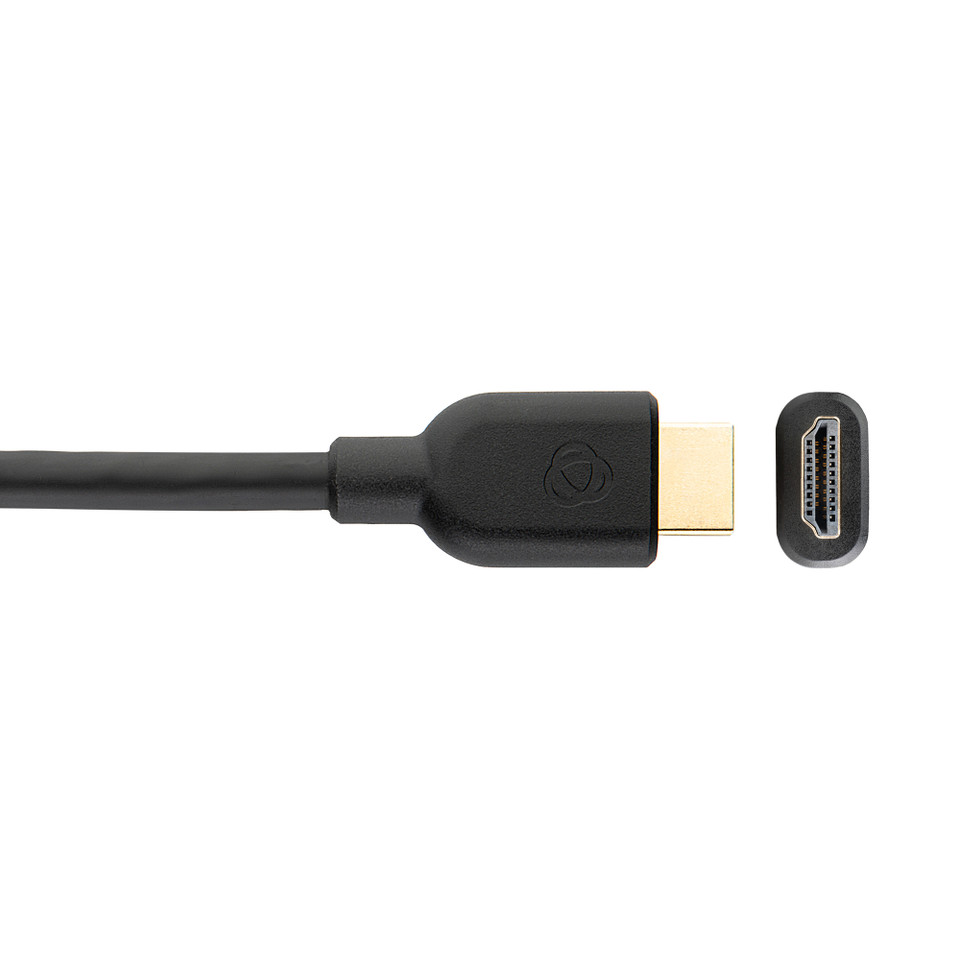

HDMI (Male-Male) Cable (10f) TAA compliance

SKU: KRMR-97-0140010
MSRP: $25.00
MAP: $20.00

Overview

Kramer's CT−HM HDMI cable delivers high−speed, high−performance digital video and audio with impeccable impedance stability, low skew, high signal integrity, and noise immunity for up to 4K@60Hz (4:4:4).

Features

  • Max. Data Rate — 18Gbps
  • Max. Resolution — 4K@60Hz (4:4:4)
  • Deep Color — Supports 24–bit, 30–bit, 36–bit and 48–bit (RGB or YCbCr) color depths
  • Multi–Channel Audio Support — Supports audio stream for external decoding by AV receivers and automatic audio syncing capabilities.
  • High Quality Connectors — 24K gold–plated, corrosion–resistant and best possible connectivity.
  • Shield — Triple overall shield against EMI/RFI interference
  • Varied Selection of Lengths — Available in versions of 3ft, 6ft, 10ft, 15ft, 25ft, 35ft.

Specifications

Video

  • Max Resolution for 3–15ft (.9–4.6m) lengths: 4K@60Hz (4:4:4)
  • Max Resolution for 25–35ft (7.6–10.7m) lengths: 4K@60 (4:2:0)
  • Max Data Rate for 3–15ft (.9–4.6m) lengths: 18 Gbps
  • Max Data Rate for 25–35ft (7.6–10.7m) lengths: 8.91 Gbps
  • Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
  • HDMI Compliance: HDR,HDCP 2.2, EDID and CEC

Audio

  • Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS–HD Master Audio™, DVD Audio, SA–CD

PHYSICAL

  • HDMI Source: On a male HDMI type A, gold–plated
  • HDMI Display: On a male HDMI type A, gold–plated

CONDUCTORS

  • Material: Tinned/Bare Copper
  • 3–6ft (.9–1.8m) lengths: 30AWG (1/0.254)
  • 10ft (3m) lengths: 28AWG (1/0.32)
  • 15ft (4.6m) lengths: 26AWG (1/0.4)
  • 25-35ft (7.6-10.7m) lengths: 28AWG (1/0.32)

SCREENING

  • Type: Triple shielding

JACKET

  • Material: PVC
  • Color: Black
  • Diameter for 3–6ft (.9–10.7m) lengths: 6. 0 ± 0.15mm
  • Diameter for 10ft (3m) lengths: 7.3 ± 0.2mm
  • Diameter for 15ft (3m) lengths: 8 ± 0.2mm
  • Diameter for 25-35ft (7.6-10.7m) lengths: 7.3 ± 0.2mm
  • Cable Bending Radius for 10ft, 25ft, 35ft (3m,7.6m,10.7m) lengths: 73mm
  • Cable Bending Radius for 3ft-6ft (0.9m-1.8m) lengths: 60mm
  • Cable Bending Radius for 15ft, (4.6m) lengths: 80mm

ELECTRICAL

  • Temperature Rating: 80°C
  • Voltage Rating: 30V
  • Conductor Resistance – 30AWG: 361Ω/km MAX. at 20°C (68°F)
  • Conductor Resistance – 28AWG: 227Ω/km MAX. at 20°C (68°F)
  • Conductor Resistance – 26AWG: 143Ω/km MAX. at 20°C (68°F)

Environmental Conditions

  • Temperature range: –4 °F–176 °F (–20°C–80°C)

STANDARDS COMPLIANCE

  • Safety: CE, UL
  • Flammability Rating: CL2
  • Environmental: RoHS 2011/65/ EU
