Overview

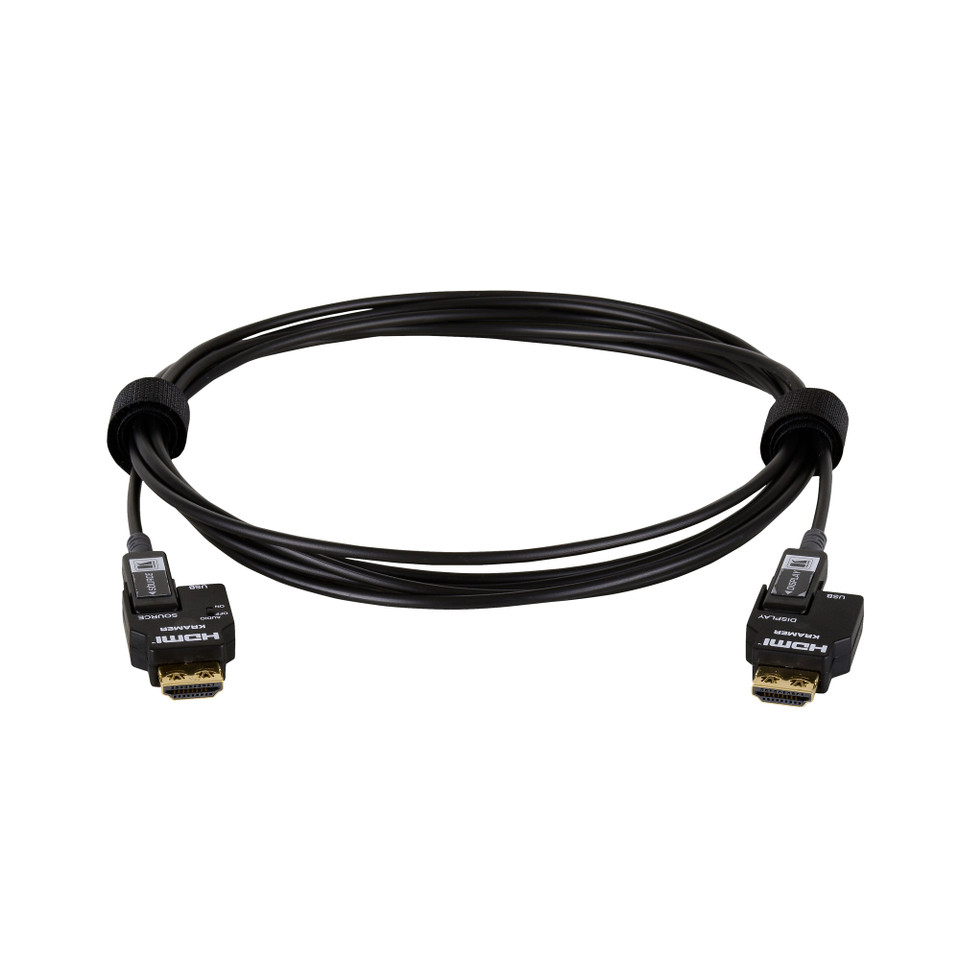

CRS−FIBERH−S1 is a pure fiber high−speed HDMI pluggable cable specially designed for security applications. CRS−FIBERH−S1 contains pre− stored EDID values making a DDC channel unnecessary and audio select. It has a low risk of EMI and RFI (Electromagnetic and Radio Frequency Interference) and provides a very high level of signal security over copper and hybris HDMI cables.

Features

• High–Speed Active Cable — Delivers up to 4K@60Hz (4:2:0) resolution and up to 10.2Gbps data rate.
• High–Level Signal Security — Cable limits signal to one–way transmission.
  Pre–defined EDID.
• HDMI Support — deep color and x.v.Color, 5.1/7.1 lossless Dolby TrueHD and DTS–HD Master Audio. Note: HDCP, CEC, HEAC and ARC are not supported.
• High–quality construction — 24K gold–plated, corrosion–resistant connectors for best possible connectivity. Pull–resistant K–Lock with 15 lbs of restraining force. 4xMM fiber in a 3.4mm TPU jacket.
• Plug & Play operation.
• Control Over Audio on /Audio off operation.

Specifications

Video

• Max Resolution: 4K@60Hz (4:2:0)
• Max Data Rate: 10.2 Gbps
• HDMI Compliance: Does not support HDCP or CEC

Audio

• Supported Audio Formats (when audio is enabled): Dolby® Digital Plus, Dolby® TrueHD, DTS–HD Master Audio®, DVD Audio, SA–CD

PHYSICAL

• Connector-1 (source end): Male HDMI Type A, 24K gold–plated K–Lock connector
• Connector-2 (display end): Male HDMI Type A, 24K gold–plated K–Lock connector (optional external power input via Micro USB connector)
• Case Material : Aluminum
• Switch : Optional Audio on/Audio off operation
• Cable Construction: 4xMM fiber cable
• Connector Max. Pulling Strength: 15lbs/6.8kg

JACKET

• Material: TPU (Thermoplastic Poly–Urethane)
• Color: Black
• Diameter: 3.4±0.3mm

ELECTRICAL

• Operating Current : 56mA max
• Power Consumption: 0.28W

Environmental Conditions

• Operating Temperature: +32~+122°F (0~+50°C)
• Storage Temperature: –22~+122°F (0~+50°C)
