Overview

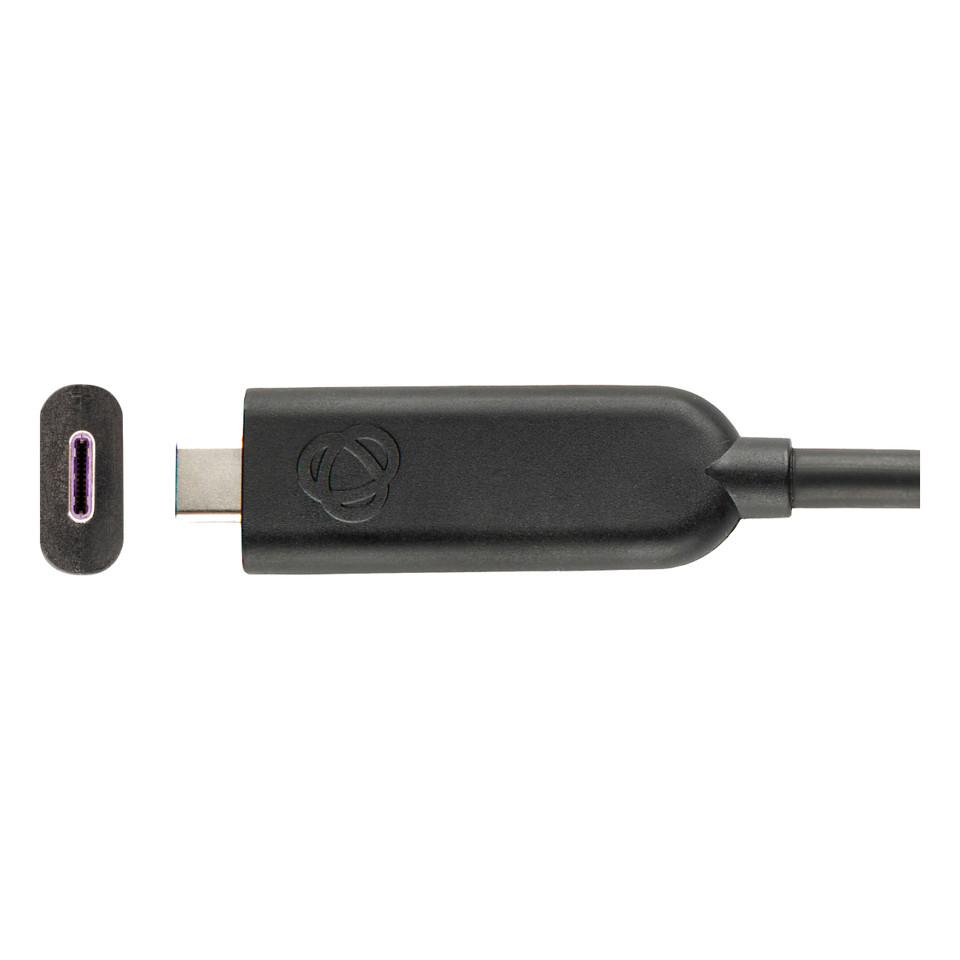

CLS−AOCU32/FF is a USB−C(M) to USB−C(M), USB 3.2 Gen−2 SuperSpeed+ Active AOC Hybrid cable offering a whole new level of reliable connectivity thanks to kramer's unique K−lock. Transfers Video 4K@60, data at incredible speeds (10G) in parallel to USB 2.0, supports 100W charging power − all with just one Active AOC Hybrid cable.

CLS−AOCU32/FF offers throughput of up to 10Gbps when used with a USB 3.2 host and device. The symmetrical, low profile USB Type−C connector, with the integrated K−Lock mechanism, can be plugged in any orientation, thus eliminating the frustration of getting the port insertion just right.

Features

• 4K@60 Video
• Reversible USB Type–C Connector — With integrated locking mechanism.
• Transfer Rates — Up to 10Gbps.
• Current Rating — 100W power (5A, 20V).
• Compatibility — PC, Mac & Mobile.
• Plug and Play — For monitors, Web cameras, printers, scanners, keyboards and other digital devices.
• USB Backward Compatibility — 1.0, 1.1, 2.0, and 3.0.
• RoHS REACH Compliant

Specifications

USB Features

• Type: USB 3.2 GEN–2
• Video: 4K@60 4:4:4
• Data: 10Gbps (USB 3.2 Gen 2) & USB 2.0
• Power Charging: 20V, 5A (100W)
• ETH Support: 10/100/1000 Mbps

PHYSICAL

• Connector A: USB Type–C Male Nickel plated K–Lock connector with gold pins
• Connector A Length x Width x Height: 39.5 x 18 x 9mm (1.6" x 0.71" x 0.356). Note: In installations where space is limited, we recommend adding the flexible and tiny female to male adapter: Model: PG–U32/FF Part number: 96–0235100
• Connector B: USB Type–C Male Nickel plated K–Lock connector with gold pins
• Connector B Length x Width x Height: USB Type–C Male Nickel plated K–Lock connector with gold pins

JACKET

• Material: PVC, LSHF
• Color: Black
• Diameter: 5.8mm ±0.2mm (0.23" ±0.008mm)
• Bending Radius: 36mm (1.42")

ELECTRICAL

• Temperature Rating: 80°C (176°F)
• Voltage Rating: 30V
• Conductor Resistance – 28AWG: 237Ω/km MAX. at 20°C (68°F)
• Conductor Resistance – 20AWG: 38Ω/km MAX. at 20°C (68°F)

STANDARDS COMPLIANCE

• Safety: CE, FCC
• Flammability Rating: CPR Dca
