Overview

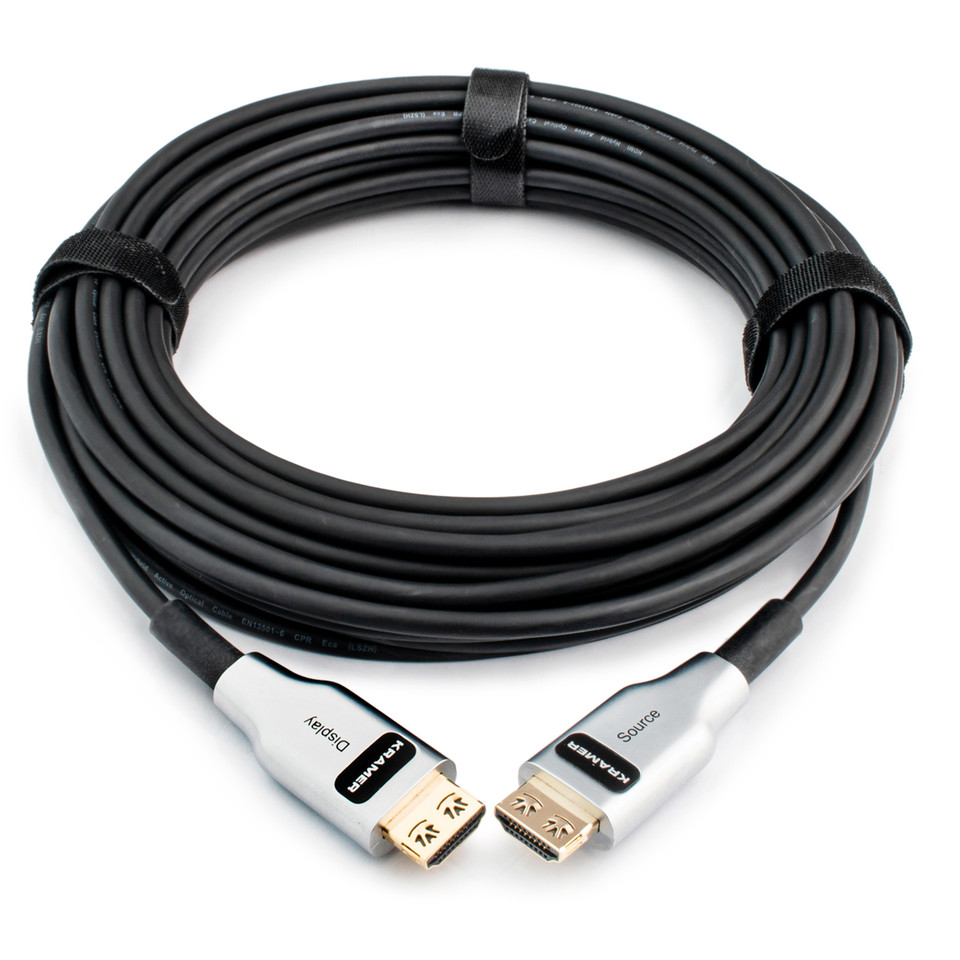

CLS−AOCH/UF is an innovative active hybrid optical HDMI cable for sending 8K signals up to 100 meters (328 ft).

CLS−AOCH/UF is thinner, lighter and more flexible than most of the copper or even standard optical cables. It offers transparent EDID and HDCP support with no signal attenuation and reduced risk of EMI and RFI interference.

Features

• Video Resolution — Up to 4K@120, 8K@60Hz (4:2:0)
• High Data Transfer Rate — Up to 48Gbps
• Embedded Audio — PCM 8–channel, Dolby Digital True HD and DTS–HD Master Audio
• HDMI Support — HDCP 2.2, HDR, EDID, eARC, and DSC as specified in HDMI 2.1
• High–Quality Connectors — 24K gold–plated, corrosion–resistant and best possible connectivity
• Reduced EMI & RFI.
• Thin Construction — 4.5mm diameter
• Ultra Certified (up to 66ft)
• Jacket Construction — Low smoke & halogen free
• REACH RoHS 2011/65/EU, CE, FCC, compliant.
• Varied Selection of Lengths — Available in versions from 10 to 100m (33 to 328ft)

Specifications

Video

• Max Resolution: 8K@60Hz
• Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
• HDMI Support: Dynamic HDR, HDCP 2.2, EDID and CEC, eARC and ETH

Audio

• Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS–HD Master Audio™, DVD Audio, SA–CD

PHYSICAL

• HDMI Source: On a male HDMI type A, 24K gold–plated K–Lock connector
• HDMI Display: On a male HDMI type A, 24K gold–plated K–Lock connector

General

• Cable Type: Hybrid with OM3 fiber and copper wire
• O/E Converter: 4 channel 850 nm VCSEL array
• Material: Bare Copper
• Flammability: LSHF

MECHANICAL

• Cable Bending Radius: 45mm

JACKET

• Color: Black
• Diameter : 4.5mm

Power

• Consumption: 250mW (max)

Environmental Conditions

• Operating Temperature: 50°C
• Storage Temperature: –40–70°C

STANDARDS COMPLIANCE - EC VERIFIED

• Safety: CE/FCC

Regulatory Compliance (Standards Compliance)

• Environmental: REACH,RoHS 2011/65/ EU
