Overview

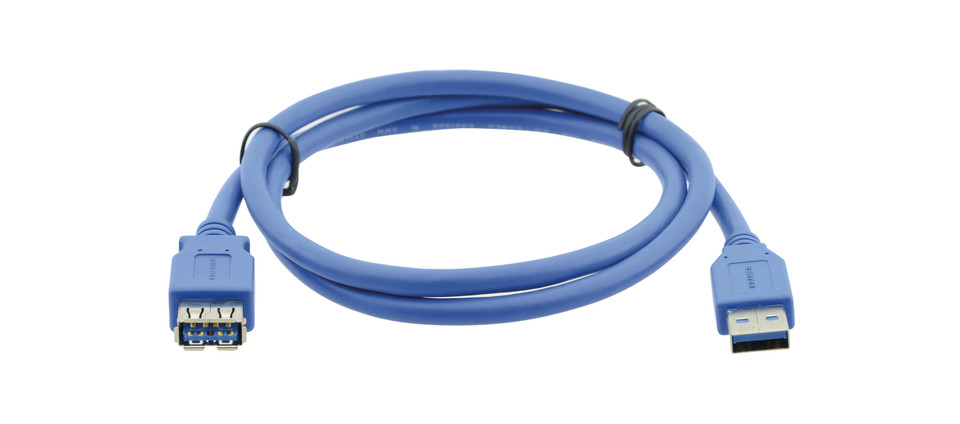

Kramer's C−USB3/AAE is a SuperSpeed USB 3.0 Type−A male to Type−A female extension cable used to connect computers and peripherals such as, printers, scanners, cameras, keyboards, mice and other digital devices for superior signal transfer of up to 4.8Gbps.
- USB 3.0 A Male to A Female.
- Transfer Rates up to 4.8Gbps — 10x the capability of USB 2.0.
- Foil & Overall Braid Provide Maximum Protection Against EMI/RFI.
- Molded Strain Relief.
- Backward Compatibility — USB Specifications 1.0, 1.1 and 2.0.
- RoHS Compliant.
- Note — The cable’s color can vary in some cases.
Specifications
OVERALL
- TYPE: USB 3.0 SuperSpeed
- MAX. DATA RATE: 4.8 Gbps
PHYSICAL
- CONNECTOR A: USB 3.0 type–A male
- CONNECTOR B: USB 3.0 type–A female
- CONNECTOR PLATING: Nickel
- CONDUCTORS: 28/24AWG
- CABLE SHIELD TYPE: Aluminum–Mylar Foil with Braid
- OVERALL SHEATH DIAMETER: 5.5mm
- OUTER SHEATH COLOR: Blue
REGULATORY
- STANDARDS: 2011/65/EU
