Overview

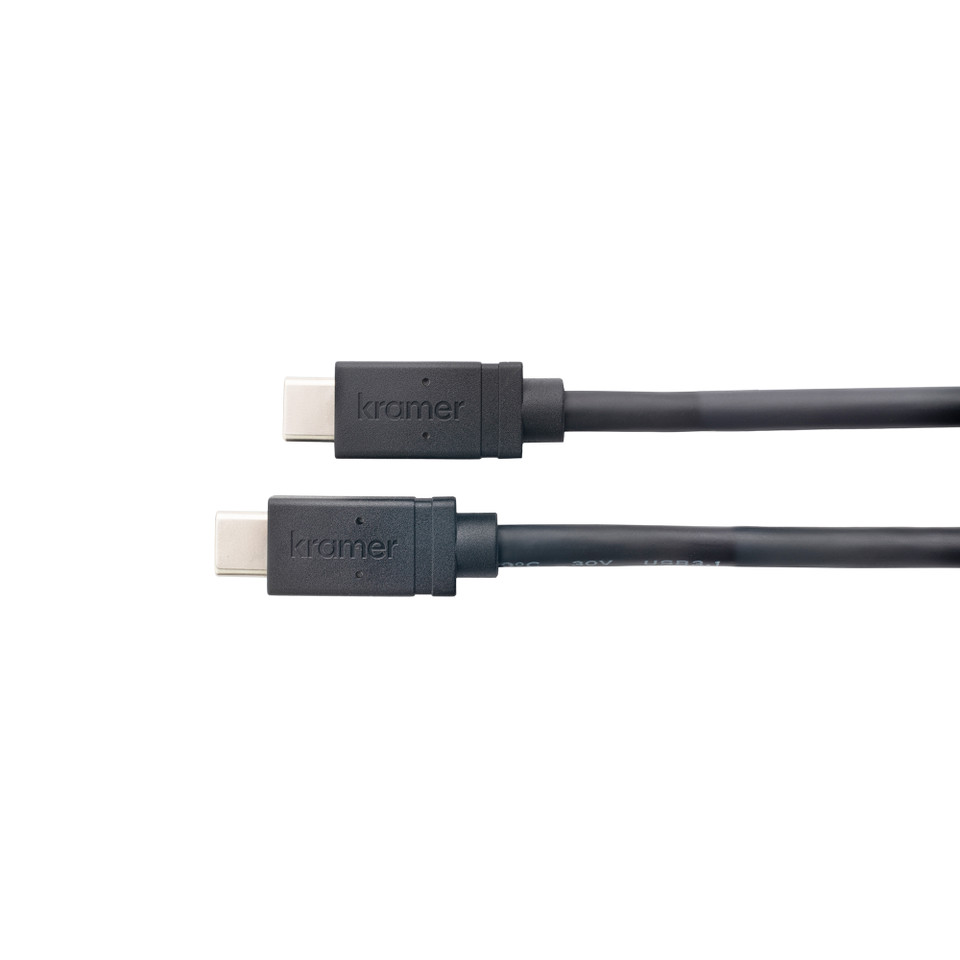

C−U32/FF is a USB−C(M) to USB−C(M), USB 3.2 Gen−2 SuperSpeed+ cable offering a whole new level of reliable connectivity thanks to kramer's unique K−lock. Transfer Video 4K@60 data at incredible speeds (10G), charge other devices (100W), and even power mobile devices − all with just one Active cable.

C−U32/FF offers throughput of up to 10Gbps when used with a USB 3.2 host and device. The symmetrical, low profile USB Type−C connector, with the integrated K−Lock mechanism, can be plugged in any direction, thus eliminating the frustration of getting the port insertion just right.

Features

• Quality Construction — High–quality shielded twisted pair (STP) construction helps prevent electromagnetic interference and ensures reliable data communication.
• Reversible USB Type–C Connector with integrated locking mechanism.
• Transfer Rates — Up to 10Gbps.
• 100W power (5A, 20V).
• PC, Mac & Mobile Compatible.
• Plug and Play — For monitors, Web cameras, printers, scanners, keyboards and other digital devices.
• USB Backward Compatibility — 1.0, 1.1, 2.0 and 3.0.
• Logo on mold as orientation mark — See the Why USB–C Is More Than Just a Connector: Understanding Directionality article in the Resources tab.

Specifications

OVERALL

• Type: USB 3.2 GEN–2
• Video: 4K@60 4:4:4
• Max. Data Rate: 10Gbps
• ETH Support: 10/100/1000 Mbps

PHYSICAL

• Connector A: USB Type–C Male Nickel plated K–Lock connector with gold pins
• Connector A Length x Width x Height: 23x12x8mm
• Connector B: USB Type–C Male Nickel plated K–Lock connector with gold pins
• Connector B Length x Width x Height: 23x12x8mm

JACKET

• Material: PVC
• Color: Black
• Diameter: 4.8mm ±0.2mm
• Bending Radius: 25.4mm

ELECTRICAL

• Temperature Rating: 80°C
• Voltage Rating: 30V
• Conductor Resistance – 32AWG: 588Ω/km MAX. at 20°C (68°F)
• Conductor Resistance – 30AWG: 376Ω/km MAX. at 20°C (68°F)
• Conductor Resistance – 24AWG: 94.2Ω/km MAX. at 20°C (68°F)

STANDARDS COMPLIANCE

• Safety: CE, FCC
• Flammability Rating: VW–1
