ULTRA HIGH SPEED HDMI (Male/Male) cable-3ft

SKU: KRMR-97-0102003
MSRP: $19.00
MAP: $15.20

Overview

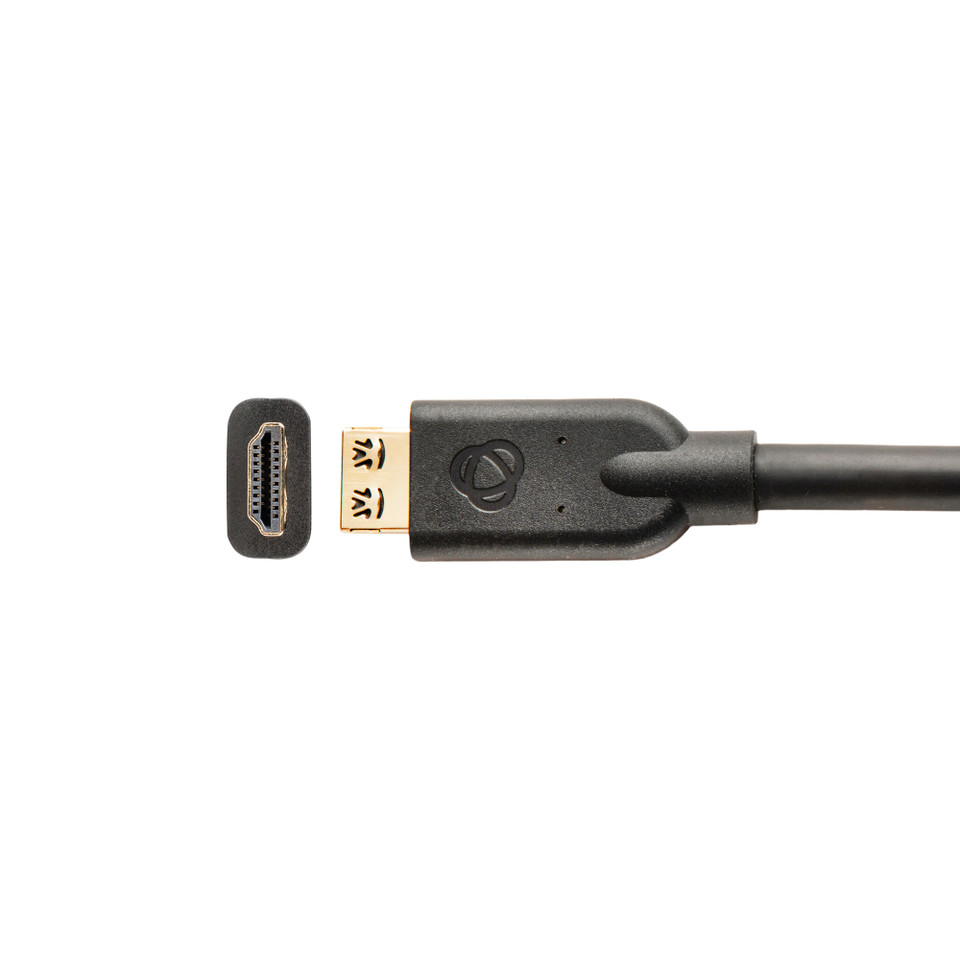

C−HMU is an HDMI™ cable that delivers ultra−high−speed, high−performance digital video, audio and eARC (Enhanced Audio Return Channel) with impeccable impedance stability, low skew, high signal integrity, and noise immunity for up to 8K@60Hz 48Gbps. With K−Lock connectors, a short HDMI connector, and reduced bending radius, this cable easily fits into tight spaces behind a television or in a cabinet. C−HMU cables are robust and reliable for the most demanding applications.

Features

  • Multi–Channel Audio Support — Supports audio stream for external decoding by AV receivers and automatic audio syncing capabilities.
  • High Quality Connectors — 24K gold–plated, corrosion–resistant and best possible connectivity.
  • K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.
  • Varied Selection of Lengths — Available in versions of 0.9, 1.8, 2.7, 3, 4.6m (3, 6, 9, 10, 15ft ).

Specifications

Video

  • Max Resolution: 8K@60Hz
  • Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
  • HDMI Compliance: Dynamic HDR, HDCP 2.2, EDID and CEC, eARC and ETH

Audio

  • Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS–HD Master Audio™, DVD Audio, SA–CD

PHYSICAL

  • HDMI Source: On a male HDMI type A, 24K gold–plated K–Lock connector
  • HDMI Display: On a male HDMI type A, 24K gold–plated K–Lock connector
  • Short Connector: 3.1mm

CONDUCTORS

  • Material: Bare Copper
  • 3–6ft (.9–1.8m) Lengths: 30AWG
  • 9-10ft (2.7-3.00m) Length: 28AWG
  • 15ft (4.6m) Length: 26AWG

MECHANICAL

  • Cable Bending Radius for 3–6ft (.9–1.8m) Lengths: 30mm
  • Cable Bending Radius for 9ft (2.7m) Lengths: 35mm
  • Cable Bending Radius for 10ft (3m) Lengths: 36mm
  • Cable Bending Radius for 15ft (4.6m) Lengths: 42mm

SCREENING

  • Type: Triple shielding

JACKET

  • Material: PVC
  • Color: Black
  • Diameter for 3–6ft (.9–1.8m) Lengths: 6 ± 0.15mm
  • Diameter for 9ft (2.7m) Length: 7.1 ± 0.15mm
  • Diameter for 10ft (3.00m) Length: 7.3 ± 0.15mm
  • Diameter for 15ft (4.6m) Length: 8.5 ± 0.15mm

ELECTRICAL

  • Temperature Rating: 80°C
  • Voltage Rating: 30V
  • Conductor Resistance – 30AWG: 105Ω/1000ft Max 25℃
  • Conductor Resistance – 28AWG: 66.2Ω/1000ft Max 25℃
  • Conductor Resistance – 26AWG: 41.6Ω/1000ft Max 25℃

STANDARDS COMPLIANCE

  • Safety: Flammability Rating — CL3
  • Environmental: REACH,RoHS 2011/65/ EU
