Rght-Angle (Both Ends High Speed HDMI Cable with Ethernet-6ft

SKU: KRMR-97-0144006
MSRP: $16.00
MAP: $12.80

Overview

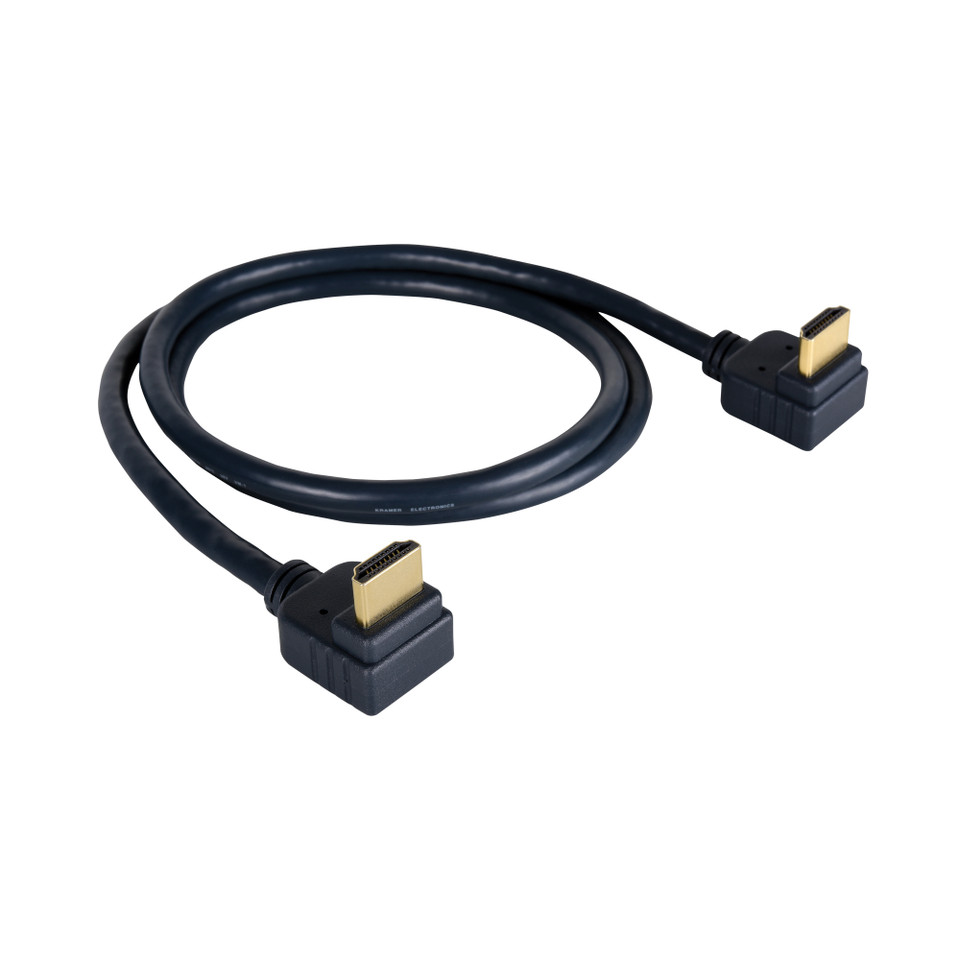

C−HM/RA2 is a high−speed, 4K@60Hz (4:4:4) HDMI, cable that supports Ethernet over the HDMI line. Both ends of the cable are right angle connectors.

Features

  • Max. Resolution — 4K@60Hz (4:4:4).
  • High–Quality Connectors — 24K gold–plated connectors resist corrosion, and offer the best possible connectivity.
  • Minimizes Installation Depth — The right angle design makes it the perfect cable for connecting a flat panel display to a Kramer low profile wall–plate extender when the extender is installed behind the display.
  • Supports HDCP 2.2, HDR, deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, and CEC.
  • Available Lengths — 0.9m (3ft) and 1.8 (6ft).

Specifications

Video

  • Max Resolution: 4K@60Hz (4:4:4)
  • Max Data Rate: 18 Gbps
  • Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
  • HDMI Compliance: HDR,HDCP 2.2, EDID and CEC

Audio

  • Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS–HD Master Audio™, DVD Audio, SA–CD

PHYSICAL

  • HDMI Source: On a male HDMI type A, 24K gold–plated K–Lock connector
  • HDMI Display: On a male HDMI type A, 24K gold–plated K–Lock connector

CONDUCTORS

  • Material: Tinned Copper/Bare Copper
  • Size: 30AWG (7/0.100)

SCREENING

  • Type: Triple shielding

JACKET

  • Material: PVC
  • Color: Gray
  • Diameter: 7 ± 0.15mm

MECHANICAL

  • Cable Bending Radius: 60mm

ELECTRICAL

  • Temperature Rating: 80°C
  • Voltage Rating: 30V
  • Conductor Resistance: 381Ω/km MAX. at 20°C (68°F)

STANDARDS COMPLIANCE

  • Safety: Flammability Rating — VW–1
  • Environmental: RoHS 2.0
