Overview

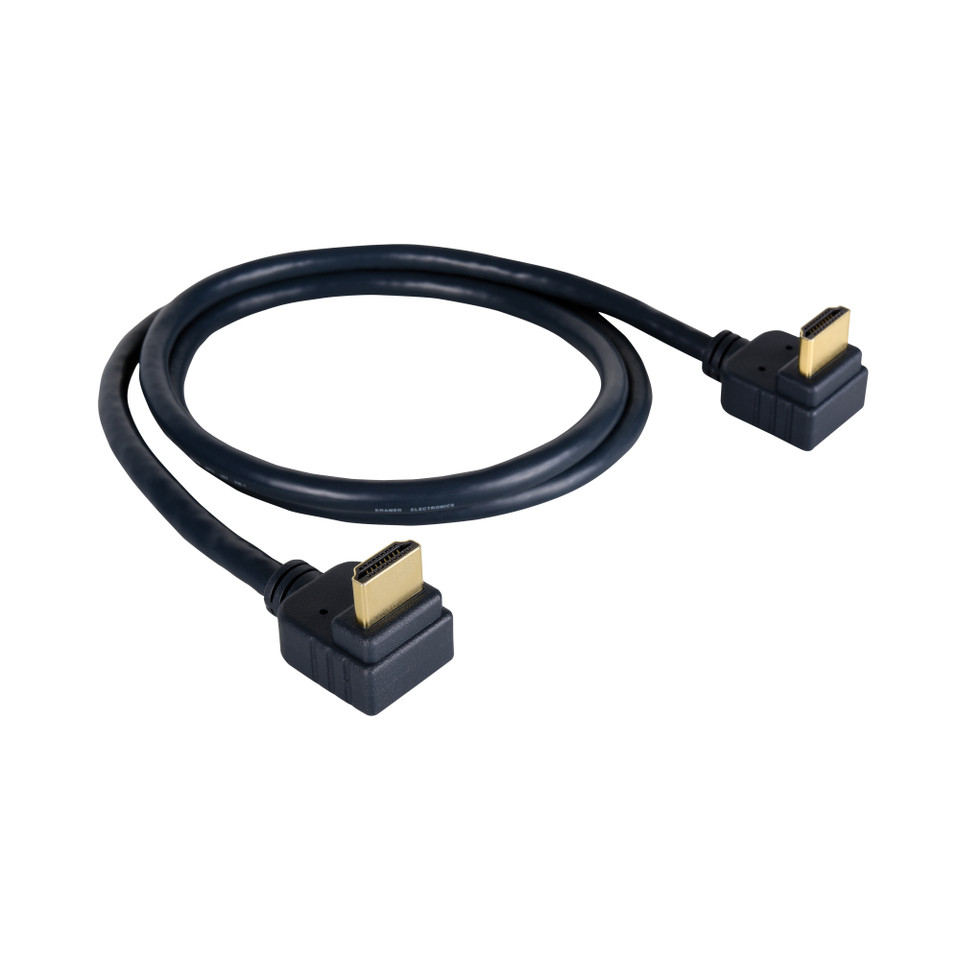

C−HM/RA2 is a high−speed, 4K@60Hz (4:4:4) HDMI, cable that supports Ethernet over the HDMI line. Both ends of the cable are right angle connectors.

Features

• Max. Resolution — 4K@60Hz (4:4:4).
• High–Quality Connectors — 24K gold–plated connectors resist corrosion, and offer the best possible connectivity.
• Minimizes Installation Depth — The right angle design makes it the perfect cable for connecting a flat panel display to a Kramer low profile wall–plate extender when the extender is installed behind the display.
• Supports HDCP 2.2, HDR, deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, and CEC.
• Available Lengths — 0.9m (3ft) and 1.8 (6ft).

Specifications

Video

• Max Resolution: 4K@60Hz (4:4:4)
• Max Data Rate: 18 Gbps
• Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
• HDMI Compliance: HDR,HDCP 2.2, EDID and CEC

Audio

• Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS–HD Master Audio™, DVD Audio, SA–CD

PHYSICAL

• HDMI Source: On a male HDMI type A, 24K gold–plated K–Lock connector
• HDMI Display: On a male HDMI type A, 24K gold–plated K–Lock connector

CONDUCTORS

• Material: Tinned Copper/Bare Copper
• Size: 30AWG (7/0.100)

SCREENING

• Type: Triple shielding

JACKET

• Material: PVC
• Color: Gray
• Diameter: 7 ± 0.15mm

MECHANICAL

• Cable Bending Radius: 60mm

ELECTRICAL

• Temperature Rating: 80°C
• Voltage Rating: 30V
• Conductor Resistance: 381Ω/km MAX. at 20°C (68°F)

STANDARDS COMPLIANCE

• Safety: Flammability Rating — VW–1
• Environmental: RoHS 2.0
