Slim High Speed HDMI Cable with Ethernet-Yellow

SKU: KRMR-97-0132306
MSRP: $13.00
MAP: $10.40

Overview

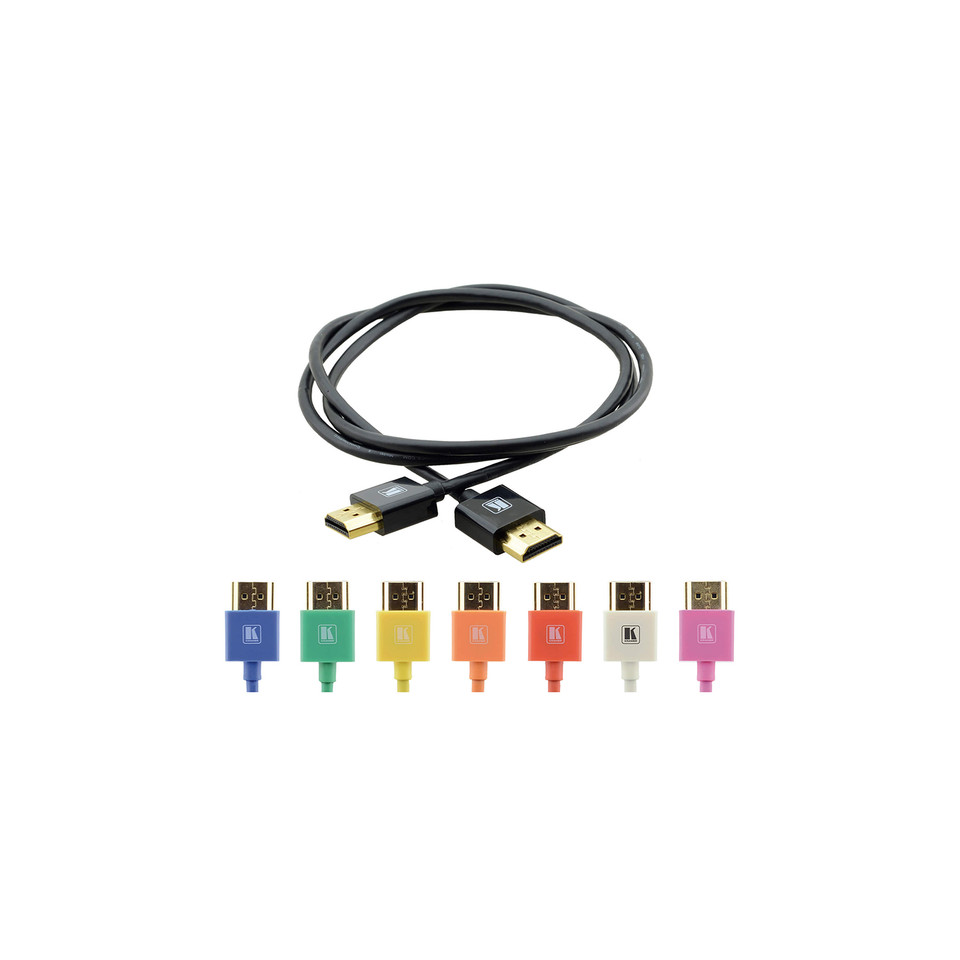

Kramer's C−HM/HM/PICO is an ultra−slim high−speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fits more easily into tight spaces behind televisions or in a cabinet. It supports resolutions up to 4K@60Hz (4:4:4).

Features

  • Max Resolution — 4K@60Hz (4:4:4).
  • Quality Performance — Kramer’s new HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set–top boxes and audio/video monitors such as plasma display screens for high–definition TVs.
  • High–Quality Connectors — Slim HDMI connector heads 16.0 mm wide and 8.0mm thick (5/8"" wide and 5/16"" thick).
  • Space Saving — A tighter bend radius combined with the low–profile connector can save up to 1"" of depth behind the equipment.
  • HDMI Support — Signals up to ultra–HD 4K, HDMI Ethernet Channel, 3D, x.v.Color™, Deep Color, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS–HD, CEC.
  • Available Colors — Black, blue, green, yellow, orange, red, pink and white.
  • Varied Selection of Lengths — Available in versions of 0.3 to 3.0m (1, 2, 3, 6 and 10ft).

Specifications

Video

  • Max Resolution for 3-6ft (0.9-1.8m) lengths: 4K60Hz (4:4:4)
  • Max Resolution for 10ft (3m) length: 4K60Hz (4:2:0)
  • Max Data Rate for 3-6ft (0.9-1.8m) lengths: 18Gbps (6 Gbps per channel)
  • Max Data Rate for 10ft (3m) length: 10.2Gbps (3.4 Gbps per channel)
  • HDMI Support: HDCP 2.2, EDID, CEC, HDR–10, HLG, Dolby Vision

Audio

  • Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS–HD Master Audio™, DVD Audio, SA–CD

PHYSICAL

  • Connectors: 2 Male HDMI Type A, 24K gold–plated connector
  • Bending radius: 36mm

CONDUCTORS

  • Diameter: 34AWG(7/0.06)
  • Material: Tinned Copper

SCREENING

  • Type: Triple shielding

JACKET

  • Material: PVC
  • Available Colors: Black, blue, green, yellow, orange, red, pink and white
  • Diameter: 3.6± 0.15mm

ELECTRICAL

  • Temperature Rating: 80⁰C
  • Voltage Rating: 30V
  • Conductor Resistance: 34AWG–1.08KΩ/KM MAX. at 20℃

REGULATORY

Rating (NEC/UL/CSA): VW–1
