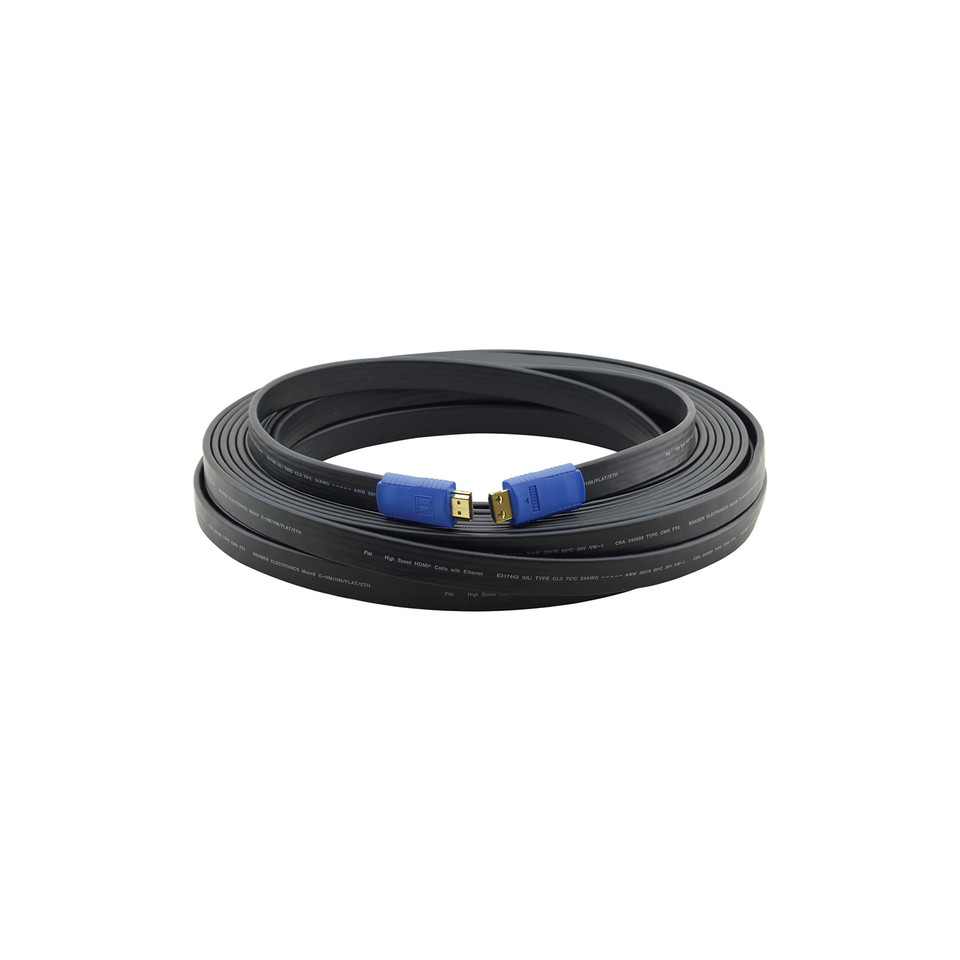

FLAT HDMI (Male-Male) Cable with Ethernet (6')

SKU: KRMR-97-01014006
MSRP: $19.00
MAP: $15.20

Overview

Kramer’s C−HM/HM/FLAT/ETH flat high−speed HDMI cable with Ethernet is designed for “invisible” and long distance installations. It routes through the wall, under the carpet, around corners and behind the entertainment system with ease. The flat design of the cable renders it unobtrusive. It supports resolutions up to 4K@60Hz (4:4:4).

  • Quality Construction — Constructed from flexible flat cable structured to have less crosstalk and interference than with traditional round HDMI cables.
  • Max. Resolution — 4K@60Hz (4:4:4).
  • High–Quality Connectors — 24K gold–plated connectors resist corrosion, cut down on impedance and offer the best possible connectivity.
  • K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.
  • Varied Selection of Lengths — Available in versions of 0.9 to 22.9m (3, 6, 10, 15, 25, 35, 50 and 75ft).

Specifications

Video

Max Resolution for 3-10ft (0.9-3.0m) lengths: 4K60 (4:4:4)
Max Resolution for 15-35ft (4.6-10.6m) lengths: 4K60 (4:2:0)
Max Resolution for 50ft (15.2m) lengths: 1080p60Hz 12–bit
Max Resolution for 75ft (22.9m) lengths: 1080p
Max Data Rate for 3-10ft (0.9-3.0m) lengths: 18Gbps
Max Data Rate for 15-35ft (4.6-10.6m) lengths: 8.91Gbps (2.97Gbps per channel)
Max Data Rate for 50ft (15.2m) lengths: 7.78Gbps (2.6Gbps per channel)
Max Data Rate for 75ft (22.9m) lengths: 4.95Gbps (1.65Gbps per channel)
HDMI Compliance: HDCP 2.2, EDID, CEC, HDR–10, HLG, Dolby Vision

Audio

Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS–HD Master Audio™, DVD Audio, SA–CD

PHYSICAL

Connectors: 2 Male HDMI Type A, 24K gold–plated K–Lock connector
Bending radius for 3-10ft (0.9-3.0m) lengths: 126mm
Bending radius for 15-35ft(4.6-10.6m) lengths: 168mm
Bending radius for 50-75ft(15.2-22.9m) lengths: 183mm

CONDUCTORS

Diameter for 3-10ft (0.9-3.0m) lengths: 28AWG(1/0.32)
Diameter for 15-35ft(4.6-10.6m) lengths: 26AWG(1/0.42)
Diameter for 50-75ft(15.2-22.9m) lengths: 24AWG (1/0.52)
Material: Bare Copper

JACKET

Material: PVC
Color: Black
Diameter for 3-10ft (0.9-3.0m) lengths: 3.0±0.13x12.6±0.25mm
Diameter for 15-35ft(4.6-10.6m) lengths: 3.8±0.15x16.8±0.25mm
Diameter for 50-75ft(15.2-22.9m) lengths: 4.2±0.15x18.3±0.25

ELECTRICAL

Temperature Rating: 80⁰C
Voltage Rating: 30V
Conductor Resistancefor 28AWG: 237 Ω/KM MAX. at 20℃
Conductor Resistancefor 26AWG: 148Ω/KM MAX. at 20℃
Conductor Resistancefor 24AWG: 93.2 Ω/KM MAX. at 20℃

REGULATORY

Rating (NEC/UL/CSA): CL3/CMG–FT4
RoHS: 2011/65/ EU
