Kramer C-HM/HM-25

Kramer C-HM/HM-25

Kramer C-HM/HM-25

Kramer C-HM/HM-25

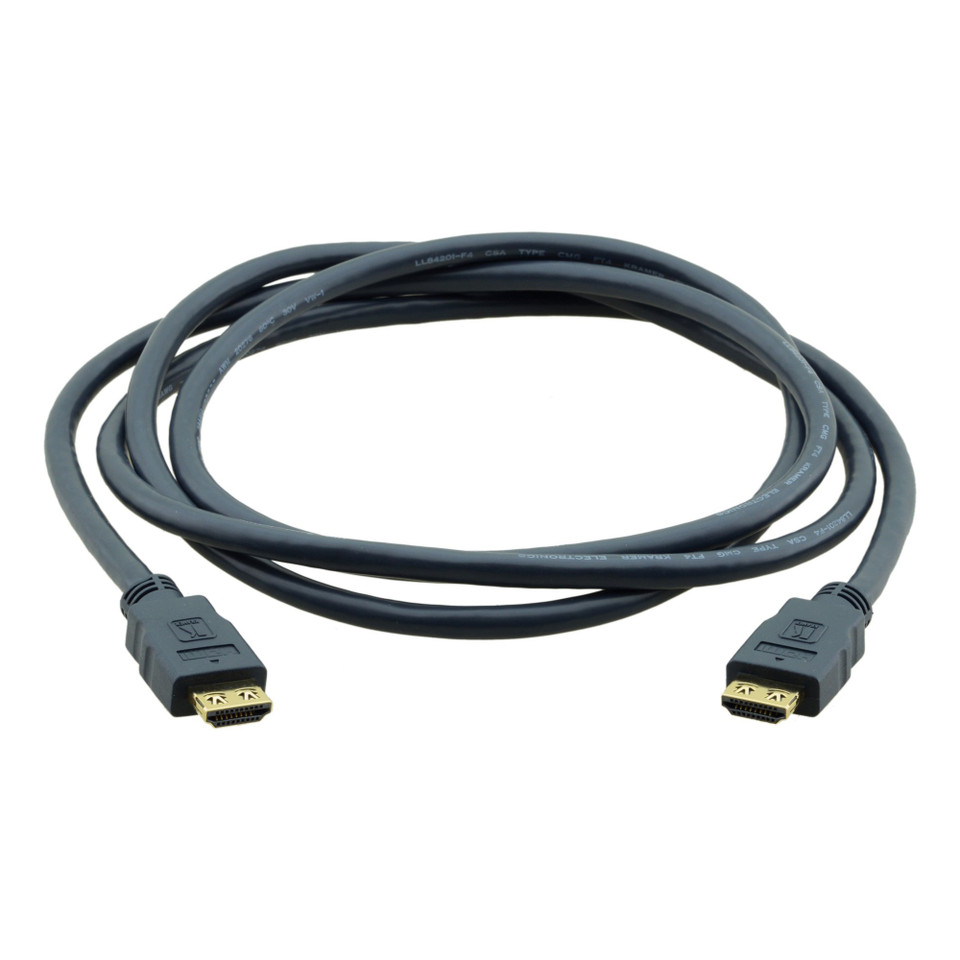

HDMI (Male-Male) Cable (25')

SKU: KRMR-97-0101025
MSRP: $30.00
MAP: $24.00

Overview

Kramer's C−HM/HM cable is your default choice for high−performance, HDMI cable.
It supports signals up to 4K@60Hz (4:4:4), Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS−HD, CEC.

Features

  • Quality Performance — Kramer’s HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set–top boxes and audio/video monitors such as LCD or OLED display screens for high–definition TVs.
  • Max. Resolution — 4K@60Hz (4:4:4).
  • High–Quality Connectors — 24K gold–plated connectors resist corrosion, and offer the best possible connectivity.
  • K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.
  • Premium certified (up to 15ft)
  • Varied Selection of Lengths — Available in versions of 0.9 to 15.2m (3, 6, 10, 15, 25, 35 and 50ft).
  • Note — The cable’s color can vary in some cases.

Specifications

Video

  • Max Resolution for 3–15ft (.9–4.6m) lengths: 4K@60Hz (4:4:4)
  • Max Resolution for 25–35ft (7.6–10.7m) lengths: 4K@60 (4:2:0)
  • Max Resolution for 50ft (15.2m) lengths: 1080p
  • Max Data Rate for 3–15ft (.9–4.6m) lengths: 18 Gbps
  • Max Data Rate for 25–35ft (7.6–10.7m) lengths: 8.91 Gbps
  • Max Data Rate for 50ft (15.2m) lengths: 4.95Gbps
  • Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
  • HDMI Compliance: HDR,HDCP 2.2, EDID and CEC

Audio

  • Supported Audio Formats: Dolby Digital Plus™, Dolby TrueHD™, DTS–HD Master Audio™, DVD Audio, SA–CD

PHYSICAL

  • HDMI Source: On a male HDMI type A, 24K gold–plated K–Lock connector
  • HDMI Display: On a male HDMI type A, 24K gold–plated K–Lock connector

CONDUCTORS

  • Material: Tinned Copper/Bare Copper
  • 3–35ft (.9–10.7m) lengths: 28AWG (7/0.127)
  • 50ft (15.2m) lengths: 26AWG (7/0.160)

SCREENING

  • Type: Triple shielding

JACKET

  • Material: PVC
  • Color: Gray
  • Diameter for 3–35ft (.9–10.7m) lengths: 6.50 ± 0.15mm
  • Diameter for 50ft (15.2m) lengths: 9 ± 0.25

MECHANICAL

  • Cable Bending Radius for 3–35ft (.9–10.7m) lengths: 60mm
  • Cable Bending Radius for 50ft (15.2m) lengths: 90mm

ELECTRICAL

  • Temperature Rating: 80°C
  • Voltage Rating: 30V
  • Conductor Resistance – 28AWG: 237.25Ω/km
  • Conductor Resistance – 26AWG: 148Ω/km MAX. at 20°C (68°F)

STANDARDS COMPLIANCE

  • Safety: Flammability Rating — CL3/FT4
  • Environmental: RoHS 2011/65/ EU
