Kramer C-HM/ETH-10

Kramer C-HM/ETH-10

Kramer C-HM/ETH-10

Kramer C-HM/ETH-10

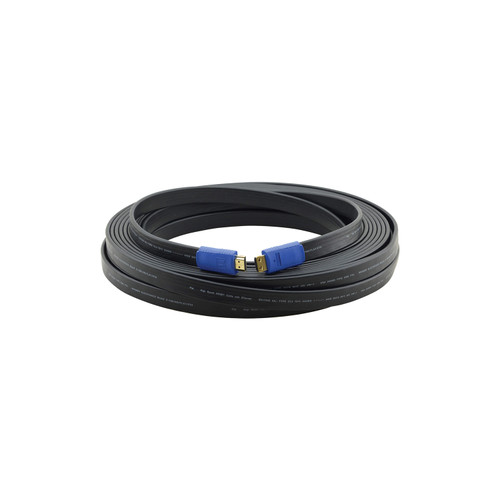

High speed HDMI cable with Ethernet-10ft

SKU: KRMR-97-01214010
MSRP: $12.00
MAP: $9.60

Overview

Kramer's C−HM/HM/ETH HDMI cable is a high−performance cable with molded HDMI connectors at both ends. It supports Ethernet Channel, Deep Color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS−HD, CEC and ARC and resolutions up to 4K@60Hz (4:4:4).

Quality Performance — Kramer’s HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set–top boxes and audio/video monitors such as plasma display screens for high–definition TVs.
Max. Resolution — 4K@60Hz (4:4:4).
High–Quality Connectors — 24k gold–plated connectors resist corrosion, and offer the best possible connectivity.
K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.
Varied Selection of Lengths — Available in versions of 0.9 to 15.2m (3, 6, 10, 15, 25, 35, and 50ft).

Specifications

Video

Max Resolution for 3–15ft (.9–4.6m) lengths: 4K@60Hz (4:4:4)
Max Resolution for 25–35ft (7.6–10.7m) lengths: 4K@60Hz (4:2:0)
Max Resolution for 50ft (15.2m) lengths: 1080p
Max Data Rate for 3–15ft (.9–4.6m) lengths: 18 Gbps (6Gbps per channel)
Max Data Rate for 25–35ft (7.6–10.7m) : 10.2 Gbps (3.4Gbps per channel)
Max Data Rate for 50ft (15.2m) lengths: 4.95Gbps (.99Gbps per channel)
Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
HDMI Compliance: HDR, HDCP 2.2, EDID and CEC, ARC and ETH

Amplifier

Supported Audio Formats: Dolby Digital Plus, Dolby TrueHD, DTS–HD Master Audio, DVD Audio, SA–CD

PHYSICAL

HDMI Source: On a male HDMI type A, 24K gold–plated K–Lock connector
HDMI Display: On a male HDMI type A, 24K gold–plated K–Lock connector

CONDUCTORS

Material: Tinned Copper
3–35ft (.9–10.7m) lengths: 28AWG (7/0.127)
50ft (15.2m) lengths: 26AWG (7/0.160)

SCREENING

Type: Triple shielding

JACKET

Material: PVC
Color: Gray
Diameter for 3–35ft (.9–10.7m) lengths: 7.30 ± 0.20mm
Diameter for 50ft (15.2m) lengths: 8.50 ± 0.20mm

MECHANICAL

Cable Bending Radius for 3–35ft (.9–10.7m) lengths: 73mm
Cable Bending Radius for 50ft (15.2m) lengths: 85mm

ELECTRICAL

Temperature Rating: 80°C
Voltage Rating: 30V
Conductor Resistance – 28AWG: 239.0Ω/km
Conductor Resistance – 26AWG: 150Ω/km MAX. at 20Ω

STANDARDS COMPLIANCE

Safety: Flammability Rating — CL3/FT4
Environmental: RoHS 2011/65/ EU
