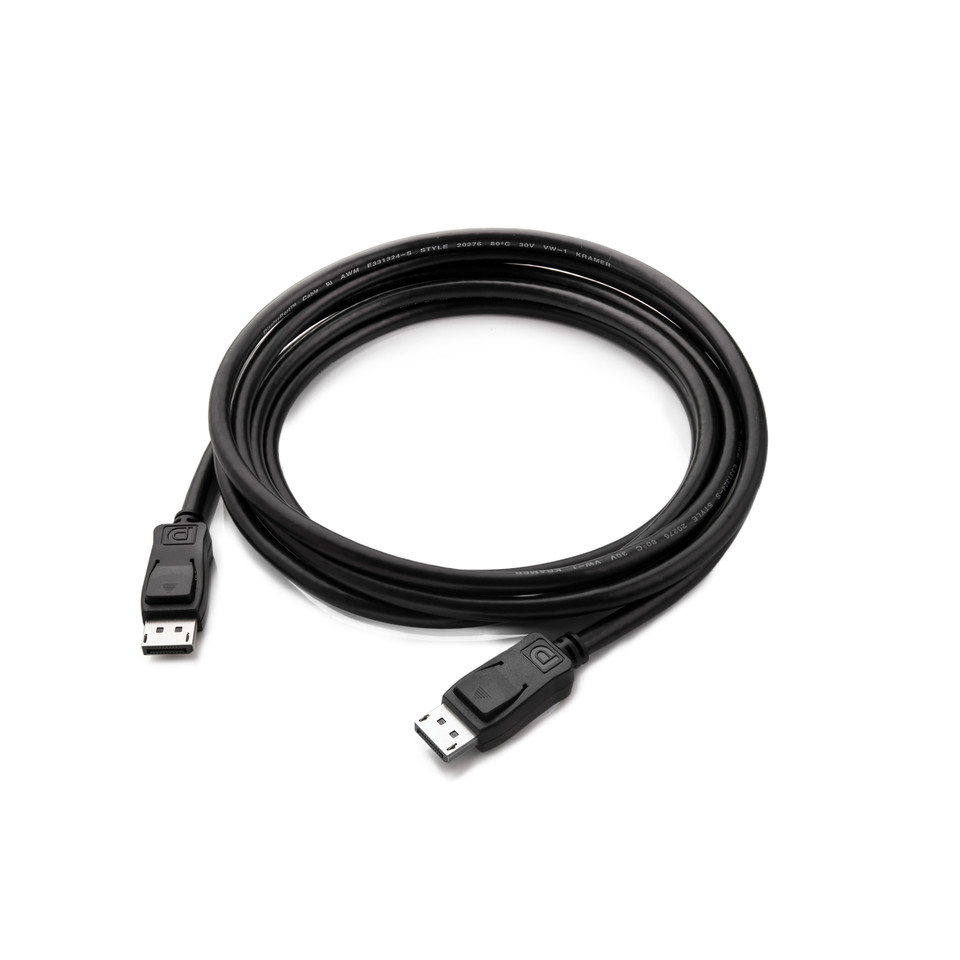

DisplayPort 1.4 cable with Latches-10'

SKU: KRMR-97-0618010
MSRP: $28.00
MAP: $22.40

Overview



C−DPU is a high−resolution DisplayPort cable for video signals up to 8K@60Hz resolution (7680 × 4320) supporting the DisplayPort 1.4 standard. C−DPU supports an HBR3 (High Bit Rate 3) bandwidth of up to 32.4 Gbps (8.1 Gbps per channel). The cable is triple shielded for superior noise immunity.

  • High–Performance Professional Cable — supports resolutions up to 8K@60Hz and an HBR3 (High Bit Rate 3) bandwidth of up to 32.4 Gbps.
  • Content Protection Support — DPCP (DisplayPort Content Protection) and HDCP 2.2.
  • Daisy Chain Multiple Monitors — With MST (Multi–Stream) support.
  • Display Stream Compression 1.2–DSC
  • Secure Connections — Includes molded DisplayPort connectors with latches.
  • Quality Construction — Triple shielded for superior noise immunity.
  • Backward Compatibility — Compatible with DisplayPort 1.2 and 1.1.
  • Varied Selection of Lengths — Available in versions of 0.9 to 3.0m (3 to 10ft).



Specifications

Video

  • Resolutions:Supports all VESA resolutions up to 8K@60Hz
  • Max. Data Rate:32.4Gbps (8.1 Gbps per channel)

PHYSICAL

  • Male DisplayPort Connectors:Gold plated pins–15u, nickel plated shell

SCREENING

  • Type:Triple Shielding (eliminates RF and EM interference)

CONDUCTORS

  • Size:28AWG

JACKET

  • Material:PVC
  • Diameter:7.3 ± 0.19mm
  • Average Thickness:0.77mm
  • Color:Black

ELECTRICAL

  • Voltage Rating:30V
  • Temperature Rating:80°C
  • Dielectric Strength:AC — 750V/1sec MIN
  • Insulation Resistance:FOAM–SKIN–PE,PE:DC–500V 100 MΩ/KM MIN. at 20℃
  • Conductor Resistance:237.3Ω/KM MAX. at 20℃
  • Differential Impedance:100±5Ω
  • Intra Pair Skew:50ps/4m
  • Inter Pair Skew:2ns/4m

Regulatory Compliance (Standards Compliance)

  • Rating:VW–1
  • RoHS:2
