Overview

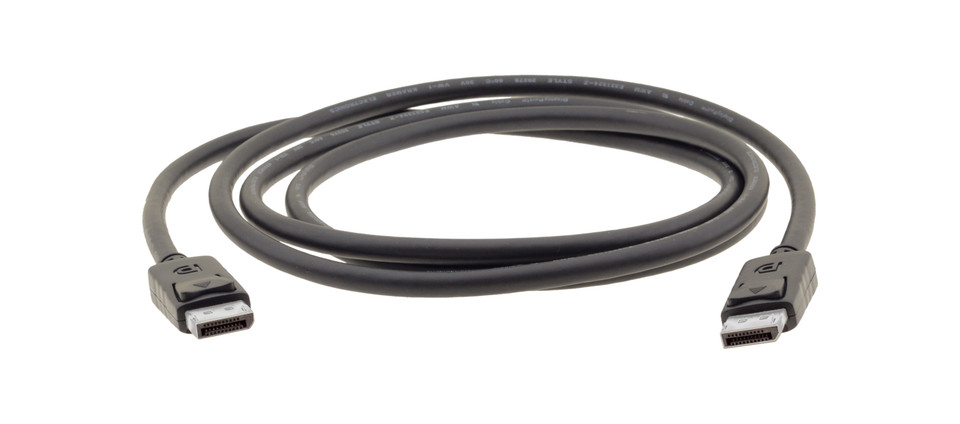

C−DP is a high−resolution DisplayPort cable for video signals up to 4K@60Hz (4:4:4) resolution supporting DisplayPort 1.2 standard. C−DP supports an HBR2 (High Bit Rate 2) bandwidth of up to 21.6 Gbps. The cable is triple shielded for superior noise immunity.
- High–Performance Professional Cable — supports resolutions up to 4K@60Hz (4:4:4) and an HBR2 (High Bit Rate 2) bandwidth of up to 21.6 Gbps.
- Content Protection Support — DPCP (DisplayPort Content Protection) and HDCP 2.2.
- Daisy Chain Multiple Monitors — With MST (Multi–Stream) support.
- Secure Connections — Includes molded DisplayPort connectors with latches.
- Quality Construction — Triple shielded for superior noise immunity.
- Backward Compatibility — Compatible with DisplayPort 1.1.
- Varied Selection of Lengths — Available in versions of 0.9 to 15.0m (3 to 50ft).
- Note: — The cable’s color can vary in some cases.
Specifications
Video
- Resolutions: Supports all VESA resolutions up to 4K@60Hz (4:4:4)
- Max. Data Rate: 21.6Gbps (5.4 Gbps per lane)
PHYSICAL
- Male DisplayPort Connectors: Gold plated pins–15u, Nickel Plated Shell
SCREENING
- Type: Triple Shielding (eliminates RF and EM interference)
CONDUCTORS
- 3-15ft Lengths: 28AWG
- 25−50ft Lengths: 26AWG
JACKET
- Material: PVC
- Diameter 3-15ft Lengths: 7.2 ± 0.19mm
- Diameter 25-50ft Lengths: 8.2 ± 0.19mm
- Average Thickness 3-15ft Lengths: 0.96mm
- Average Thickness 25-50ft Lengths: 0.57mm
- Color: Black
ELECTRICAL
- Voltage Rating: 30V
- Temperature Rating: 80°C
- Dielectric Strength: AC — 750V/1sec MIN
- Insulation Resistance: FOAM–SKIN–PE,PE:DC–500V 100 MΩ/KM MIN. at 20℃
- Conductor Resistance 28AWG: 237Ω/KMMAX. at 20℃
- Conductor Resistance 26AWG: 148Ω/KM MAX. at 20℃
- Differential Impedance: 100±5Ω
- Intra Pair Skew: 50ps/2m
- Inter Pair Skew: 4ns/2m
STANDARDS COMPLIANCE
- Rating: VW–1
- RoHS: 2011/65/EU
